Check-All® 3 Inch Wafer Insert Check Valve with 0.125 psi Cracking Pressure
Check-All® 3 Inch Wafer Insert Check Valve with 0.125 psi Cracking Pressure
SKU:WVS-b9f94c
Premium Check-All® 3 Inch Wafer Insert Check Valve with 0.125 psi Cracking Pressure – Reliable, durable, and versatile for diverse applications.
Regular price
$249.99
Regular price
Sale price
$249.99
Unit price
per
Initiate Order
Check-All® 3 Inch Wafer Insert Check Valve with 0.125 psi Cracking Pressure
$249.99
Quantity: 1
Claim Your Seller Account
Check-All® 3 Inch Wafer Insert Check Valve with 0.125 psi Cracking Pressure
$249.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

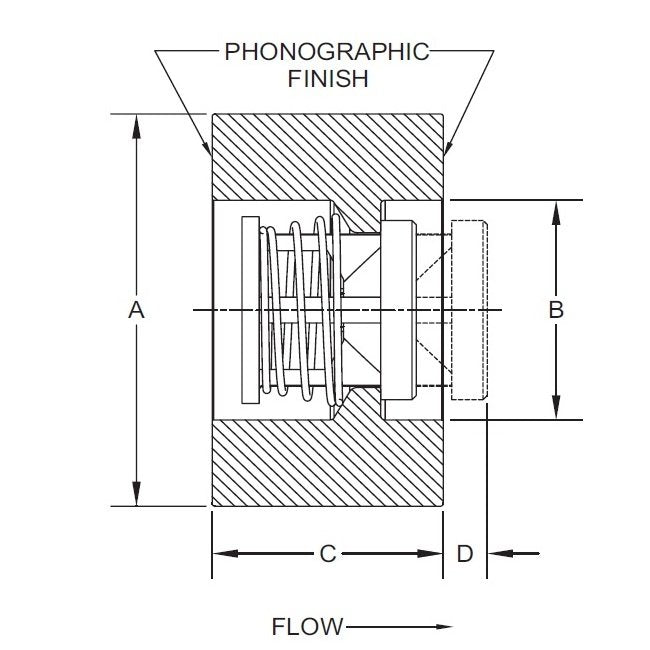

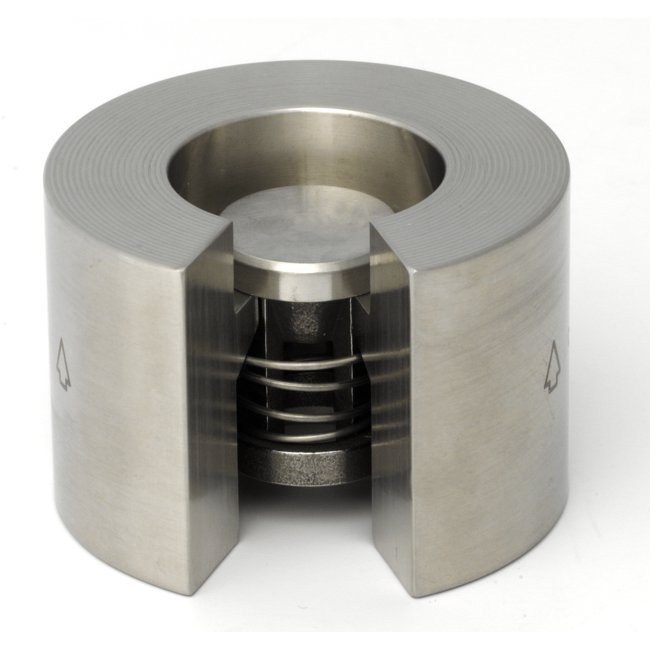

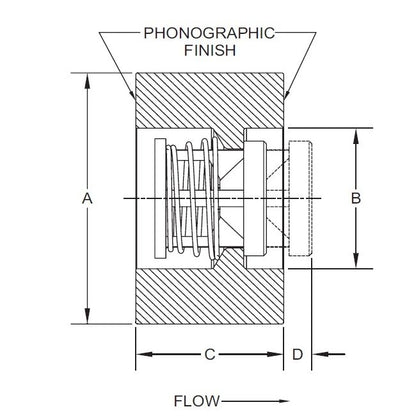

The Check-All® WV Style Wafer Insert Check Valve is a high-quality solution designed for efficient installation between ANSI flanges. With a 'drop in' valve body that ensures quick setup and removal in rigid piping applications, this valve offers reliability and ease of use. Crafted from premium materials such as 316 Stainless Steel, it provides durability and longevity, meeting stringent API 594 and B16.34 requirements. Ideal for low-pressure relief or vacuum breaker applications, the valve is versatile and trustworthy, with custom spring settings available for varied needs.
Product Specifications
Note
Made in USA.
Specifications Body Material
316 Stainless Steel = SS | 316L Stainless Steel = SS | Alloy 20 = A2 | Alloy B = HB | Alloy C-276 = HC | Brass = BR | Carbon Steel = CS | Monel® 400 or Alloy R405 = MO | Titanium = TI
Specifications Certifications
European Conformity (CE) PED 2014/68/EU Complaint | International Organization for Standardization (ISO 9001) Certified
Specifications Nominal Pipe Size
3 in
Specifications Non Shock Pressure Rating
American National Standards Institute (ANSI) Class 150 - 900
Specifications Non Shock Pressure Rating At 100 Degree Fahrenhei
1500 psig
Specifications Non Shock Pressure Rating For Brass Valves
American National Standards Institute (ANSI) Class 150 - 300
Specifications Note For Standard Cracking Pressure
0.125 psi springs are not recommended for installations with flow vertical down.
Specifications Seat Material
"Metal-to-Metal" = MT | Aflas® = AS | Buna-N = BN | Ethylene Propylene Diene Monomer (EPDM) = EP (EP seats not recommended for use with Carbon Steel valves.) | Fluoro-Elastomer (FKM) = VT | Neoprene = NE | Perfluoroelastomer = KZ | Polytetrafluoroethylene (PTFE) = TF
Specifications Size Code
M
Specifications Special Options
T = FEP Encapsulated Spring (Contact the factory for more options)
Specifications Spring Material
17-7PH Stainless Steel = PH | 316 Stainless Steel = SS | Alloy C-276 = HC | Inconel® X750 or Alloy X750 = IX | Monel® 400 = MO | Titanium = TI
Specifications Standard Cracking Pressure
0.125 psi
Specifications Valve Style
WV
