Check-All® HV Style 1-1/2" Check Valve, 1.50 psi, Horizontal/Vertical, Flanged
Check-All® HV Style 1-1/2" Check Valve, 1.50 psi, Horizontal/Vertical, Flanged
SKU:HVS-ac5dab
High-performance Check-All® HV Style Check Valve for maximum flow efficiency and durability.
Regular price
$149.99
Regular price
Sale price
$149.99
Unit price
per
Initiate Order
Check-All® HV Style 1-1/2" Check Valve, 1.50 psi, Horizontal/Vertical, Flanged
$149.99
Quantity: 1
Claim Your Seller Account
Check-All® HV Style 1-1/2" Check Valve, 1.50 psi, Horizontal/Vertical, Flanged
$149.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Check-All® HV Style Check Valve is a premium choice for demanding applications requiring high flow rates and minimal pressure drops. This one-piece cast valve features ASME/ANSI B16.5 Class 150 flanged ends, ensuring robust performance and durability. Available in sizes from 1 inch to 10 inches, with standard materials including CF8M Stainless Steel and WCB/WCC Carbon Steel, the HV series is engineered for seamless integration with ANSI Class 150 flanges. Designed for efficiency and reliability, this check valve is ideal for a wide range of industrial and institutional applications.
Product Specifications
Additional Information

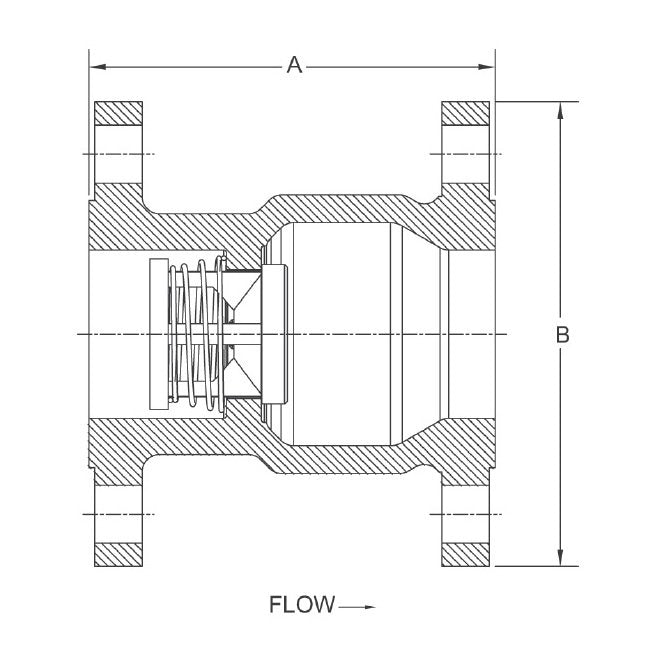

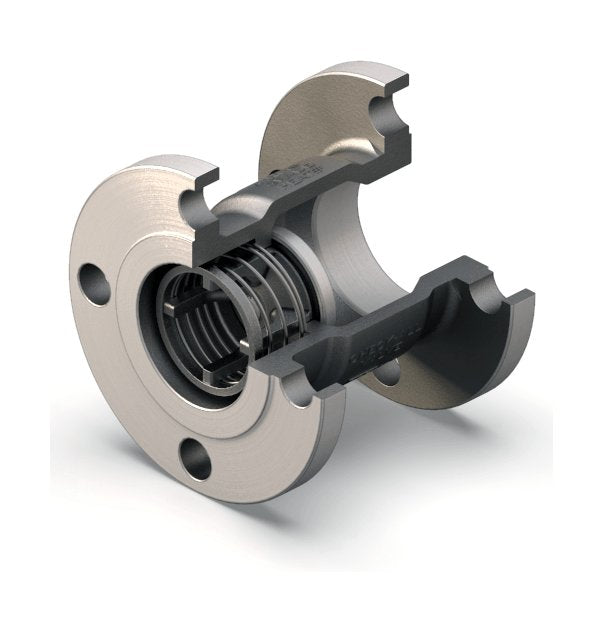

The Check-All® Flanged and Drilled (HV) check valve is a one-piece cast full-bodied spring loaded check valve with ANSI/ASME B16.5 Class 150 flanged ends. The HV series spring check valve is used when higher flow rates and lower pressure drops are required. The valve is available in sizes 1 through 10 inches and standard materials of CF8M (cast 316 stainless) and WCB/WCC (cast carbon steel). This check valve is designed for use with mating ANSI class 150 flanges. Other materials are available upon request.
Note
Made in USA.Many valves in this series can be supplied with B16.34 certification. Consult the factory for more information.
Specifications Body Material Availability
CF8M Stainless Steel = SS - Standard | Wrought Carbon Steel (WCB/WCC) - Standard
Specifications Cast Body Material
CF8M Stainless Steel = SS | Wrought Carbon Steel (WCB/WCC) = CS
Specifications Certifications
European Conformity (CE) PED 2014/68/EU Complaint | International Organization for Standardization (ISO 9001) Certified
Specifications Nominal Pipe Size
1 in
Specifications Non Shock Pressure Rating
American Society of Mechanical Engineers (ASME)/American National Standards Institute (ANSI) B16.5 Class 150
Specifications Note For Material
Listed above are the most common material selections. Please contact the factory for additional options.
Specifications Seat Material
"Metal-to-Metal" = MT | Aflas® = AS | Buna-N = BN | Ethylene Propylene Diene Monomer (EPDM) = EP (EP seats not recommended for use with Carbon Steel valves.) | Fluoro-Elastomer (FKM) = VT | Neoprene = NE | Perfluoroelastomer = KZ | Polytetrafluoroethylene (PTFE) = TF
Specifications Size Code
H
Specifications Special Options
T = FEP Encapsulated Spring (Contact the factory for more options)
Specifications Spring Material
17-7PH Stainless Steel = PH | 316 Stainless Steel = SS | Alloy B = HB | Alloy C-276 = HC | Inconel® X750 or Alloy X750 = IX | Monel® 400 = MO | Titanium = TI
Specifications Standard Cracking Pressure
1.50 psi
Specifications Valve Style
HV
