The Check-All® HV Style Check Valve is a one-piece cast valve designed for high flow rates and low pressure drops. Featuring ASME/ANSI B16.5 Class 150 flanged ends, this valve is available in sizes 1" to 10" with CF8M stainless steel or WCB/WCC carbon steel construction. With a standard cracking pressure of 3.50 psi, it offers options for various seat materials and spring configurations, making it versatile for different applications. Made in the USA, this valve meets CE, ISO 9001 standards and can be customized with industry-specific certifications for institutional use.
Product Specifications
Additional Information

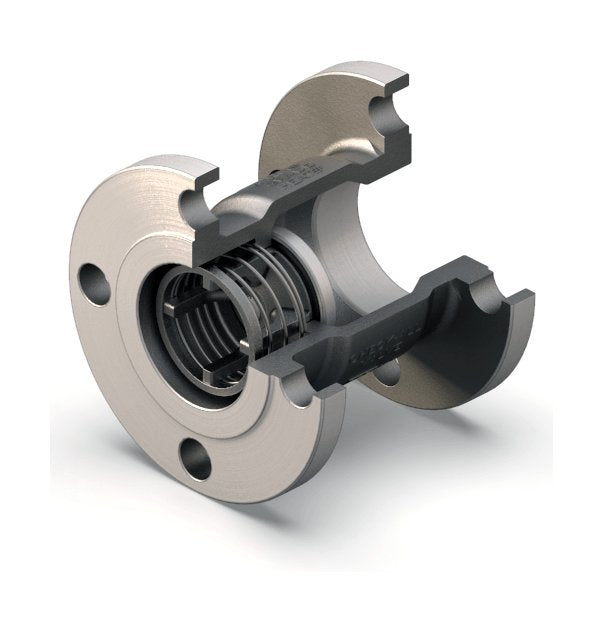

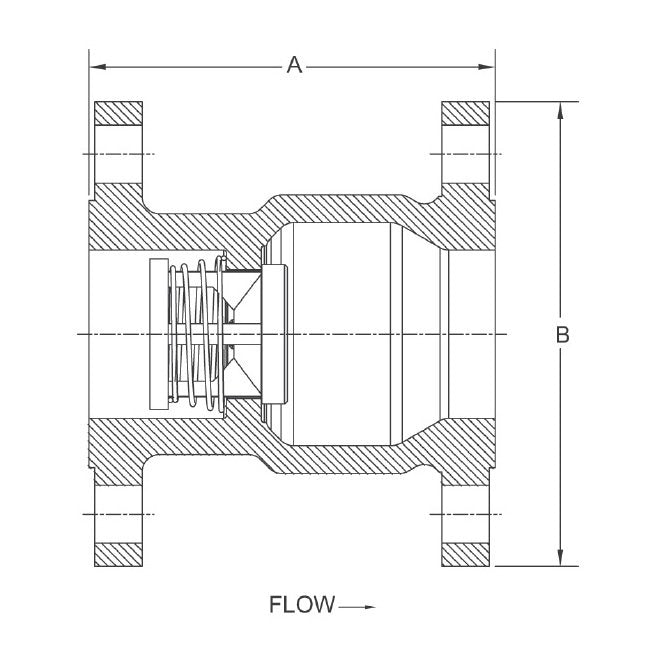

The Check-All® Flanged and Drilled (HV) check valve is a one-piece cast full-bodied spring loaded check valve with ANSI/ASME B16.5 Class 150 flanged ends. The HV series spring check valve is used when higher flow rates and lower pressure drops are required. The valve is available in sizes 1 through 10 inches and standard materials of CF8M (cast 316 stainless) and WCB/WCC (cast carbon steel). This check valve is designed for use with mating ANSI class 150 flanges. Other materials are available upon request.
Note
Made in USA.Many valves in this series can be supplied with B16.34 certification. Consult the factory for more information.
Specifications Body Material Availability
CF8M Stainless Steel = SS - Standard | Wrought Carbon Steel (WCB/WCC) - Standard
Specifications Cast Body Material
CF8M Stainless Steel = SS | Wrought Carbon Steel (WCB/WCC) = CS
Specifications Certifications
European Conformity (CE) PED 2014/68/EU Complaint | International Organization for Standardization (ISO 9001) Certified
Specifications Nominal Pipe Size
1 in
Specifications Non Shock Pressure Rating
American Society of Mechanical Engineers (ASME)/American National Standards Institute (ANSI) B16.5 Class 150
Specifications Note For Material
Listed above are the most common material selections. Please contact the factory for additional options.
Specifications Seat Material
"Metal-to-Metal" = MT | Aflas® = AS | Buna-N = BN | Ethylene Propylene Diene Monomer (EPDM) = EP (EP seats not recommended for use with Carbon Steel valves.) | Fluoro-Elastomer (FKM) = VT | Neoprene = NE | Perfluoroelastomer = KZ | Polytetrafluoroethylene (PTFE) = TF
Specifications Size Code
H
Specifications Special Options
T = FEP Encapsulated Spring (Contact the factory for more options)
Specifications Spring Material
17-7PH Stainless Steel = PH | 316 Stainless Steel = SS | Alloy B = HB | Alloy C-276 = HC | Inconel® X750 or Alloy X750 = IX | Monel® 400 = MO | Titanium = TI
Specifications Standard Cracking Pressure
3.50 psi
Specifications Valve Style
HV
