Check-All® HV Style Flanged & Drilled Check Valve - 2-1/2" NPS, 0.500 psi Pressure
Check-All® HV Style Flanged & Drilled Check Valve - 2-1/2" NPS, 0.500 psi Pressure
SKU:HVS-838e8a
Reliable Check-All® HV Style Check Valve - High Flow, Low Pressure Drop, Ideal for Various Applications
Regular price
$99.99
Regular price
Sale price
$99.99
Unit price
per
Initiate Order
Check-All® HV Style Flanged & Drilled Check Valve - 2-1/2" NPS, 0.500 psi Pressure
$99.99
Quantity: 1
Claim Your Seller Account
Check-All® HV Style Flanged & Drilled Check Valve - 2-1/2" NPS, 0.500 psi Pressure
$99.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Check-All® HV Style Check Valve is a robust one-piece cast valve designed for high flow rates and low pressure drops. With ASME/ANSI B16.5 Class 150 flanged ends and material options including CF8M Stainless Steel and WCB/WCC Carbon Steel, this valve ensures reliable performance. Featuring a standard cracking pressure of 0.500 psi and a range of seat materials, the valve is versatile and customizable to meet various requirements. Made in the USA, this valve can also be supplied with B16.34 certification upon request.
Product Specifications
Additional Information

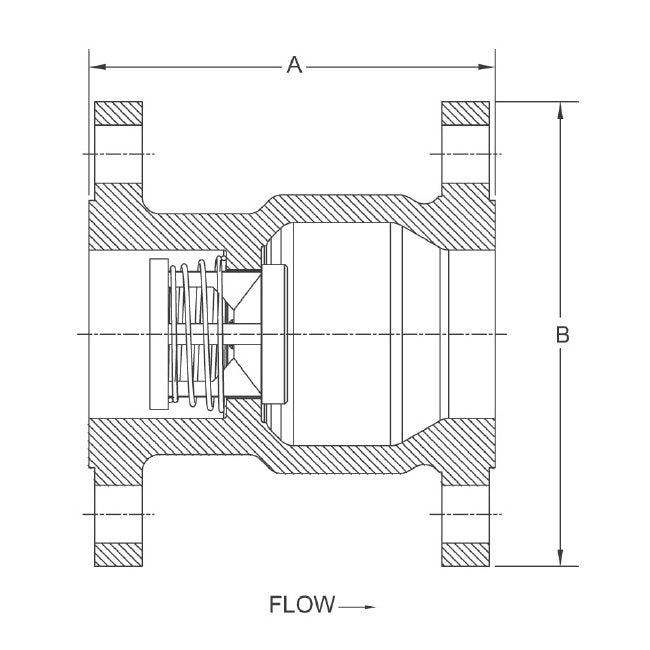

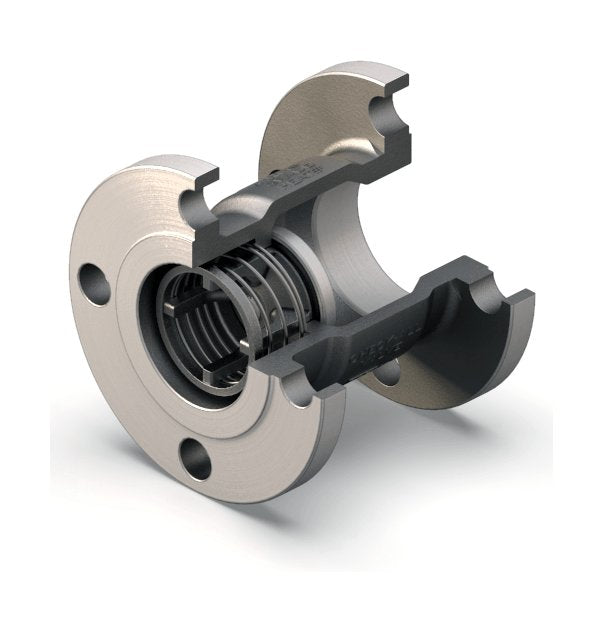

The Check-All® Flanged and Drilled (HV) check valve is a one-piece cast full-bodied spring loaded check valve with ANSI/ASME B16.5 Class 150 flanged ends. The HV series spring check valve is used when higher flow rates and lower pressure drops are required. The valve is available in sizes 1 through 10 inches and standard materials of CF8M (cast 316 stainless) and WCB/WCC (cast carbon steel). This check valve is designed for use with mating ANSI class 150 flanges. Other materials are available upon request.
Note
Made in USA.Many valves in this series can be supplied with B16.34 certification. Consult the factory for more information.
Specifications Body Material Availability
CF8M Stainless Steel = SS - Standard | Wrought Carbon Steel (WCB/WCC) - Standard
Specifications Cast Body Material
CF8M Stainless Steel = SS | Wrought Carbon Steel (WCB/WCC) = CS
Specifications Certifications
European Conformity (CE) PED 2014/68/EU Complaint | International Organization for Standardization (ISO 9001) Certified
Specifications Nominal Pipe Size
2-1/2 in
Specifications Non Shock Pressure Rating
American Society of Mechanical Engineers (ASME)/American National Standards Institute (ANSI) B16.5 Class 150
Specifications Note For Material
Listed above are the most common material selections. Please contact the factory for additional options.
Specifications Note For Standard Cracking Pressure
0.500 psi is the only standard cracking pressure for spring materials other than Stainless Steel.
Specifications Seat Material
"Metal-to-Metal" = MT | Aflas® = AS | Buna-N = BN | Ethylene Propylene Diene Monomer (EPDM) = EP (EP seats not recommended for use with Carbon Steel valves.) | Fluoro-Elastomer (FKM) = VT | Neoprene = NE | Perfluoroelastomer = KZ | Polytetrafluoroethylene (PTFE) = TF
Specifications Size Code
L
Specifications Special Options
T = FEP Encapsulated Spring (Contact the factory for more options)
Specifications Spring Material
17-7PH Stainless Steel = PH | 316 Stainless Steel = SS | Alloy B = HB | Alloy C-276 = HC | Inconel® X750 or Alloy X750 = IX | Monel® 400 = MO | Titanium = TI
Specifications Standard Cracking Pressure
0.500 psi
Specifications Valve Style
HV
