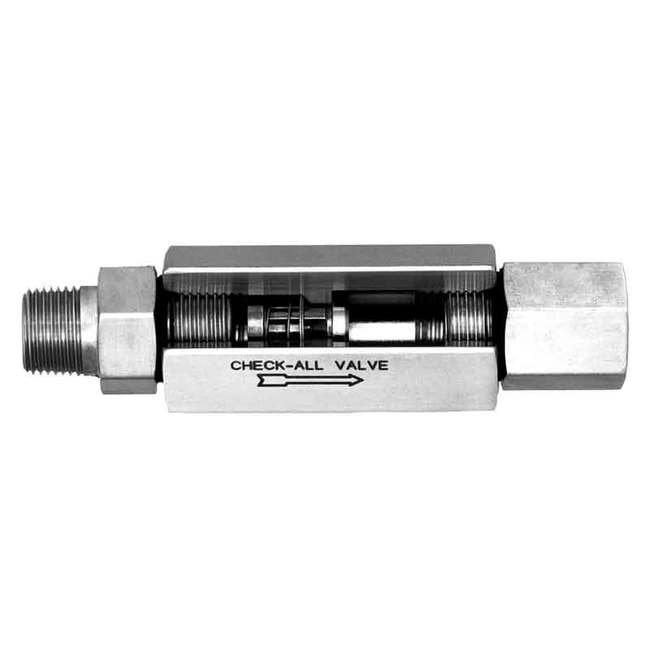

Check-All® M1 Mini-Check Valve - 3/8 in Size, 1.50 psi Standard Cracking Pressure
Check-All® M1 Mini-Check Valve - 3/8 in Size, 1.50 psi Standard Cracking Pressure
SKU:M1T-01e956
Premium Check-All® M1 Mini-Check Valve - Precise 1.50 psi Cracking Pressure, Durable 316 Stainless Steel, Versatile End Fittings, Certified Compliance
Regular price
$59.99
Regular price
Sale price
$59.99
Unit price
per
Initiate Order
Check-All® M1 Mini-Check Valve - 3/8 in Size, 1.50 psi Standard Cracking Pressure
$59.99
Quantity: 1
Claim Your Seller Account
Check-All® M1 Mini-Check Valve - 3/8 in Size, 1.50 psi Standard Cracking Pressure
$59.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Check-All® M1 Mini-Check Valve delivers superior performance with a 1.50 psi standard cracking pressure for precise control. Constructed with high-grade 316 Stainless Steel, this valve offers exceptional durability and reliability. Its versatile design allows for various end fittings combinations, making it suitable for a wide range of applications. With non-shock pressure ratings up to 5000 psig, this valve ensures safety and efficiency in critical systems. Trusted for quality and compliance, the Check-All® M1 Valve meets European Conformity (CE) PED 2014/68/EU and ISO 9001 certifications, making it ideal for institutional and industrial procurement needs.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Note
When ordering styles M5 through M8 be sure to specify whether compression (-C) or 37º flare (-F).Made in USA.Many valves in this series can be supplied with B16.34 certification. Consult the factory for more information.
Specifications Body Material
316 Stainless Steel = SS | Brass = BR | Carbon Steel = CS
Specifications Certifications
European Conformity (CE) PED 2014/68/EU Complaint | International Organization for Standardization (ISO 9001) Certified
Specifications Nominal Pipe And Tube Size
3/8 in
Specifications Non Shock Pressure Rating At 100 Degree Fahrenhei
5000 psig
Specifications Note For Material
Listed above are the most common material selections. Please contact the factory for additional options.
Specifications Note For Non Shock Pressure Rating At 100 Degree
Consult factory for P-T rating above 100 ºF.
Specifications Seat Material
"Metal-to-Metal" = MT | Aflas® = AS | Buna-N = BN | Ethylene Propylene Diene Monomer (EPDM) = EP (EP seats not recommended for use with Carbon Steel valves.) | Fluoro-Elastomer (FKM) = VT | Neoprene = NE | Perfluoroelastomer = KZ | Polytetrafluoroethylene (PTFE) = TF
Specifications Size Code
C
Specifications Special Options
C = Compression Tube (M5 - M8 only) | F = Flared Tube (M5 - M8 only) | O = Outer O-Ring Seals Same as Seat | T = FEP Encapsulated Spring
Specifications Spring Material
17-7PH Stainless Steel = PH | 316 Stainless Steel = SS | Alloy C-276 = HC | Inconel® X750 or Alloy X750 = IX | Monel® 400 = MO | Titanium = TI
Specifications Standard Cracking Pressure
1.50 psi
Specifications Standard End Fitting O Ring Material
Buna-N = BN | Ethylene Propylene Diene Monomer (EPDM) = EP (EP seats not recommended for use with Carbon Steel valves.) | Fluoro-Elastomer (FKM) = VT | Neoprene = NE | Polytetrafluoroethylene (PTFE) = TF
Specifications Valve Style
M1 - Male Pipe Threads Both Ends
