Check-All® TV Style Tubing Check Valve - 1-1/2" Line Size, 1.50 psi Standard Cracking Pressure
Check-All® TV Style Tubing Check Valve - 1-1/2" Line Size, 1.50 psi Standard Cracking Pressure
SKU:TVS-4e8412
Premium TV Style Tubing Check Valve for low pressure applications, 316 Stainless Steel construction, ISO 9001 certified.
Regular price
$99.99
Regular price
Sale price
$99.99
Unit price
per
Initiate Order
Check-All® TV Style Tubing Check Valve - 1-1/2" Line Size, 1.50 psi Standard Cracking Pressure
$99.99
Quantity: 1
Claim Your Seller Account
Check-All® TV Style Tubing Check Valve - 1-1/2" Line Size, 1.50 psi Standard Cracking Pressure
$99.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

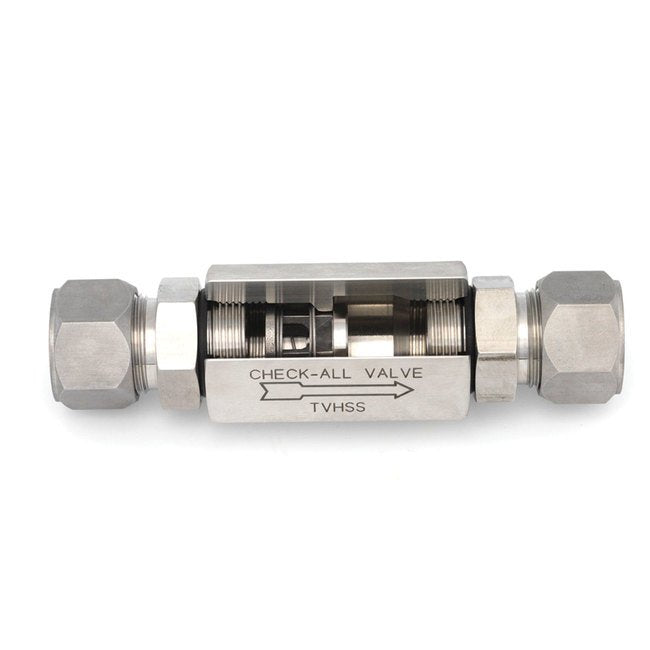

The Check-All® TV Style Tubing Check Valve features compression tube fittings for minimal pressure drop. This valve, suitable for low pressure relief and vacuum breaker applications, is furnished with ferrules and nuts. Constructed with 316 Stainless Steel, it offers versatility with various seat and end fitting options. With a non-shock pressure rating of up to 3000 psig, this valve exceeds industry standards. Certified for ISO 9001 compliance, this valve ensures high performance and durability. Made in the USA, it's a reliable choice for industrial applications.
Product Specifications
Note
Consult the factory for instrumentation applications or for more information.Made in USA.
Specifications Body Material
316 Stainless Steel = SS | Brass = BR | Carbon Steel = CS
Specifications Certifications
European Conformity (CE) PED 2014/68/EU Complaint | International Organization for Standardization (ISO 9001) Certified
Specifications Line Size
1-1/2 in
Specifications Non Shock Pressure Rating At 100 Degree Fahrenhei
3000 psig
Specifications Note For Material
Listed above are the most common material selections. Please contact the factory for additional options.
Specifications Seat Material
"Metal-to-Metal" = MT | Aflas® = AS | Buna-N = BN | Ethylene Propylene Diene Monomer (EPDM) = EP (EP seats not recommended for use with Carbon Steel valves.) | Fluoro-Elastomer (FKM) = VT | Neoprene = NE | Perfluoroelastomer = KZ | Polytetrafluoroethylene (PTFE) = TF
Specifications Size Code
J
Specifications Special Options
O = Outer O-Ring Seals Same as Seat | T = FEP Encapsulated Spring
Specifications Spring Material
17-7PH Stainless Steel = PH | 316 Stainless Steel = SS | Alloy C-276 = HC | Inconel® X750 or Alloy X750 = IX | Monel® 400 = MO | Titanium = TI
Specifications Standard Cracking Pressure
1.50 psi
Specifications Standard End Fitting O Ring Material
Buna-N = BN | Ethylene Propylene Diene Monomer (EPDM) = EP (EP seats not recommended for use with Carbon Steel valves.) | Fluoro-Elastomer (FKM) = VT | Neoprene = NE | Polytetrafluoroethylene (PTFE) = TF
Specifications Valve Style
TV
