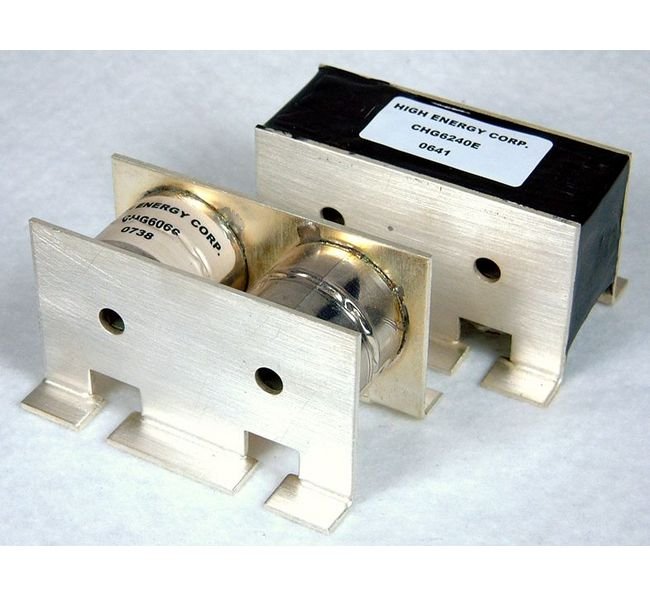

CHG Series Metallized Capacitor - 400V 2.4µF
CHG Series Metallized Capacitor - 400V 2.4µF
SKU:MET-64ef53
High-performance CHG Series Metallized Capacitor, 400V 2.4µF. Reliable and efficient for consumer and institutional applications.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
CHG Series Metallized Capacitor - 400V 2.4µF
$29.99
Quantity: 1
Claim Your Seller Account
CHG Series Metallized Capacitor - 400V 2.4µF
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Epoxied CHG Series Metallized Film Capacitor is a reliable solution designed for high-performance applications in both consumer and institutional settings. With a capacitance range of 0.11 to 2.4 µF and VMAX of 400 VRMS, this capacitor offers superior power handling capabilities. Featuring a compact design measuring at 3 x 2 x 1 3/4 inches and conduction-cooling by bus bars, it ensures efficient heat dissipation. The capacitor complies with stringent industry standards, making it a versatile choice for various electronic systems.
Product Specifications
Specifications Cap
2.4 µF
Specifications Capacitance Range
0.11 to 2.4 µF
Specifications Capacitance Tolerance
±10% Standard
Specifications Cooling Method
Conduction-cooled by bus bars

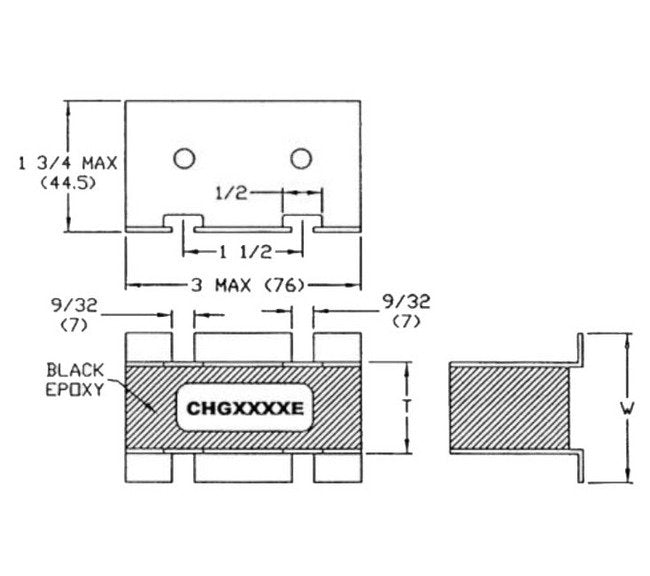

Specifications Dimensions
3 x 2 x 1 3/4 in | 76.2 x 50.8 x 39.2 mm
Specifications Dimension T
1 3/16 in | 30.2 mm
Specifications Dimension W
2 in | 51 mm
Specifications Dissipation Factor
0.1% Maximum
Specifications Fh
83 kHz
Specifications Fl
83 kHz
Specifications Fmax
500 kHz
Specifications Imax Rms
500 A
Specifications Operating Temperature
Up to +90 ºC
Specifications Smax
200 kV·A
Specifications Stray Inductance
Less than 5 nH
Specifications Vmax Rms
400 V
Specifications Weight
0.23 kg | 0.50 lb
