CHG Series Metallized Film Capacitor, 0.11 µF, 700 V
CHG Series Metallized Film Capacitor, 0.11 µF, 700 V
SKU:MET-6933dd
High-performance Epoxied CHG Series Metallized Film Capacitor, 0.11 µF, 700 V. Reliable and efficient for diverse applications.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
CHG Series Metallized Film Capacitor, 0.11 µF, 700 V
$29.99
Quantity: 1
Claim Your Seller Account
CHG Series Metallized Film Capacitor, 0.11 µF, 700 V
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

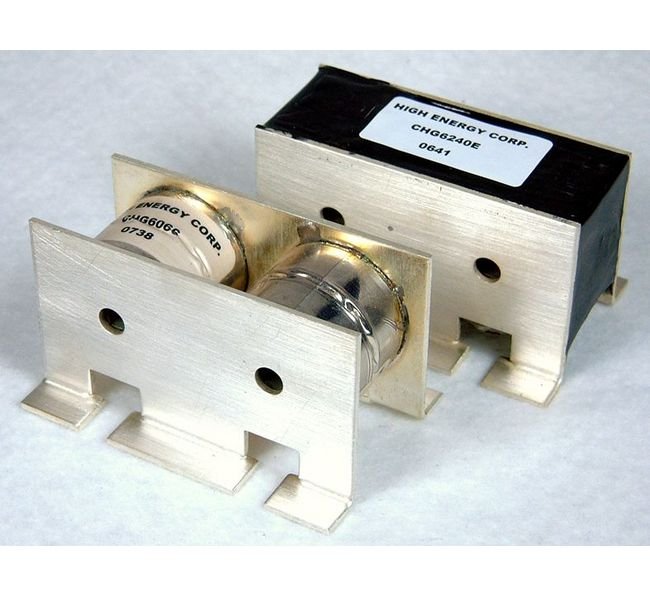

The Epoxied CHG Series Metallized Film Capacitor is a high-performance component designed for demanding applications. With a capacitance of 0.11 µF and a maximum working voltage of 700 V, this capacitor ensures reliable operation in various electrical systems. It features a conduction-cooled design, making it ideal for applications requiring efficient heat dissipation. Additionally, its compact dimensions of 3 x 2 x 1 3/4 inches and lightweight build enhance versatility and ease of installation. Compliant with strict industry standards, this capacitor offers exceptional performance and durability, making it a valuable choice for both consumer and institutional buyers.
Product Specifications
Specifications Cap
0.11 µF
Specifications Capacitance Range
0.11 to 2.4 µF
Specifications Capacitance Tolerance
±10% Standard
Specifications Cooling Method
Conduction-cooled by bus bars

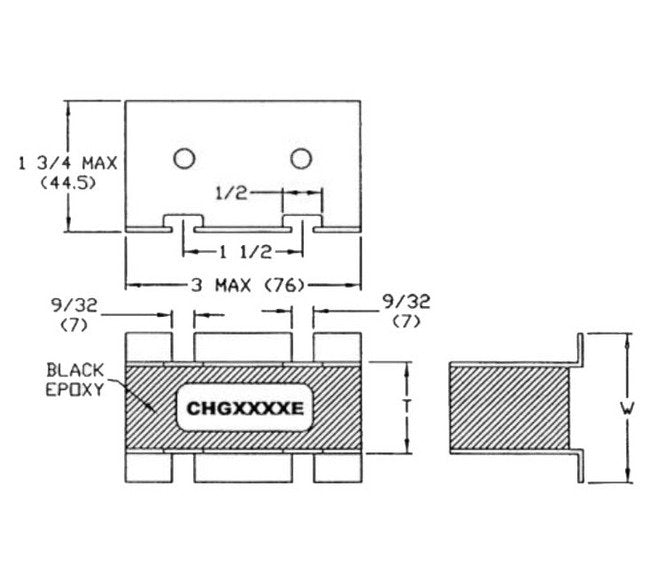

Specifications Dimensions
3 x 2 x 1 3/4 in | 76.2 x 50.8 x 39.2 mm
Specifications Dimension T
1 3/16 in | 30.2 mm
Specifications Dimension W
2 in | 51 mm
Specifications Dissipation Factor
0.1% Maximum
Specifications Fh
375 kHz
Specifications Fl
369 kHz
Specifications Fmax
500 kHz
Specifications Imax Rms
180 A
Specifications Operating Temperature
Up to +90 ºC
Specifications Smax
125 kV·A
Specifications Stray Inductance
Less than 5 nH
Specifications Vmax Rms
700 V
Specifications Weight
0.23 kg | 0.50 lb
