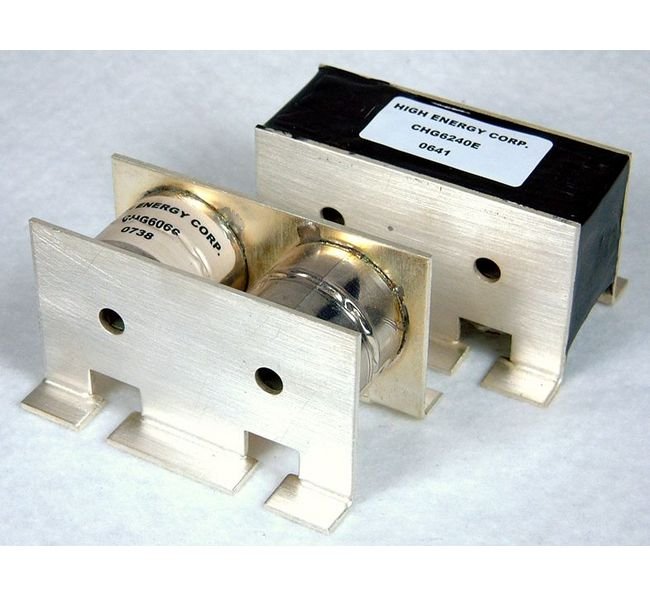

CHG Series Metallized Film Capacitor - 0.21 µF, 700 V
CHG Series Metallized Film Capacitor - 0.21 µF, 700 V
SKU:MET-61934f
High-performance metallized film capacitor, 0.21 µF, 700 V, conduction-cooled, series & parallel stackable.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
CHG Series Metallized Film Capacitor - 0.21 µF, 700 V
$49.99
Quantity: 1
Claim Your Seller Account
CHG Series Metallized Film Capacitor - 0.21 µF, 700 V
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Epoxied CHG Series Metallized Film Capacitor offers exceptional performance with a capacitance of 0.21 µF and a maximum working voltage of 700 V RMS. Ideal for industrial applications, this capacitor is designed to handle up to 375 kVA of power and 625 ARMS of current. With conduction cooling and series & parallel stackable design, it ensures efficient operation even in demanding environments. This capacitor is a reliable choice for institutions seeking high-quality components that meet stringent procurement standards.
Product Specifications
Specifications Cap
0.21 µF
Specifications Capacitance Range
0.11 to 2.4 µF
Specifications Capacitance Tolerance
±10% Standard
Specifications Cooling Method
Conduction-cooled by bus bars

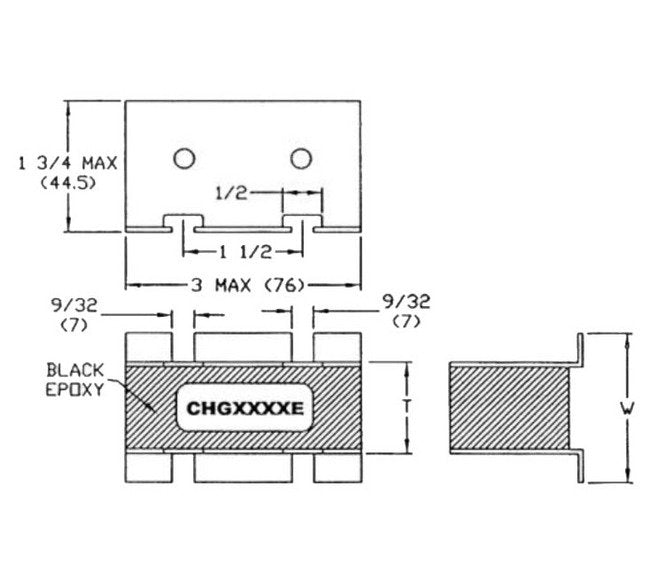

Specifications Dimensions
3 x 2 x 1 3/4 in | 76.2 x 50.8 x 39.2 mm
Specifications Dimension T
1 3/16 in | 30.2 mm
Specifications Dimension W
2 in | 51 mm
Specifications Dissipation Factor
0.1% Maximum
Specifications Fh
389 kHz
Specifications Fl
270 kHz
Specifications Fmax
500 kHz
Specifications Imax Rms
300 A
Specifications Operating Temperature
Up to +90 ºC
Specifications Smax
175 kV·A
Specifications Stray Inductance
Less than 5 nH
Specifications Vmax Rms
700 V
Specifications Weight
0.23 kg | 0.50 lb
