CHG Series Metallized Film Capacitor - 0.66 µF, 600V
CHG Series Metallized Film Capacitor - 0.66 µF, 600V
SKU:MET-5f2743
Reliable CHG Series Metallized Film Capacitor - 0.66 µF, 600V, ideal for high-power applications.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
CHG Series Metallized Film Capacitor - 0.66 µF, 600V
$49.99
Quantity: 1
Claim Your Seller Account
CHG Series Metallized Film Capacitor - 0.66 µF, 600V
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

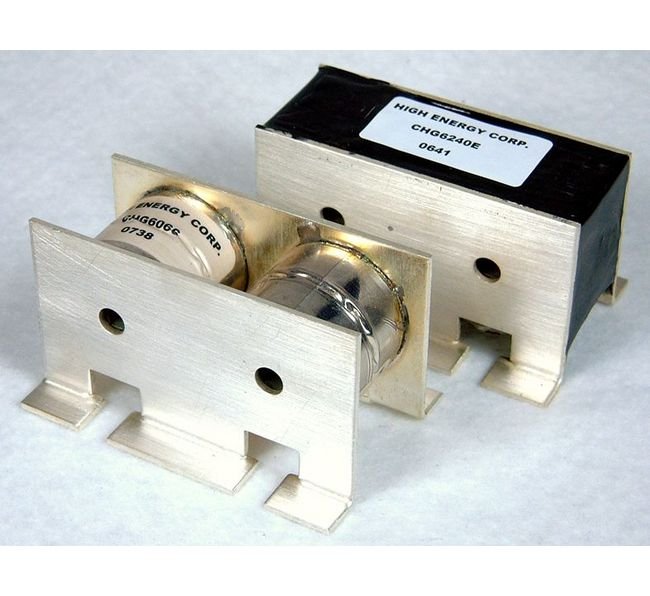

The CHG Series Metallized Film Capacitor offers superior performance with a capacitance of 0.66 µF and a maximum voltage rating of 600 V RMS. Engineered for reliability, this capacitor is designed to handle up to 625 A RMS current and dissipates heat efficiently with its conduction cooling method. With industry-standard capacitance tolerance and compact dimensions of 3 x 2 x 1 3/4 inches, this capacitor is ideal for high-power applications. Operating temperature up to +90 ºC ensures stable performance in diverse environments.
Product Specifications
Specifications Cap
0.66 µF
Specifications Capacitance Range
0.11 to 2.4 µF
Specifications Capacitance Tolerance
±10% Standard
Specifications Cooling Method
Conduction-cooled by bus bars

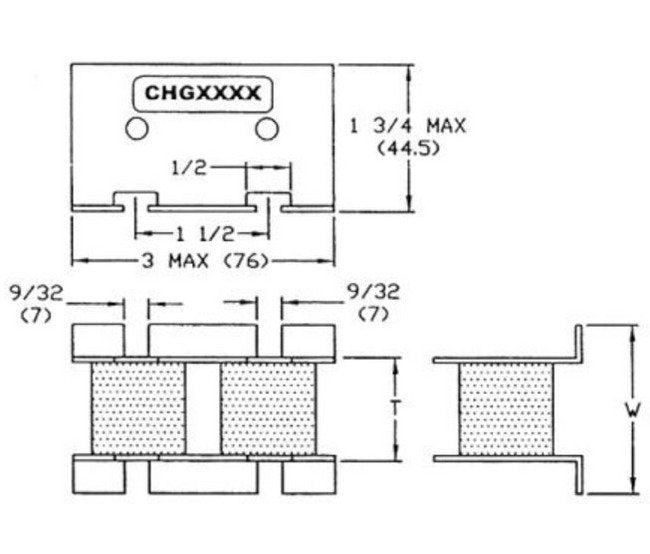

Specifications Dimensions
3 x 2 x 1 3/4 in | 76.2 x 50.8 x 39.2 mm
Specifications Dimension T
1 3/16 in | 30.2 mm
Specifications Dimension W
2 in | 51 mm
Specifications Dissipation Factor
0.1% Maximum
Specifications Fh
290 kHz
Specifications Fl
218 kHz
Specifications Fmax
500 kHz
Specifications Imax Rms
625 A
Specifications Operating Temperature
Up to +90 ºC
Specifications Smax
325 kV·A
Specifications Stray Inductance
Less than 5 nH
Specifications Vmax Rms
600 V
Specifications Weight
0.23 kg | 0.50 lb
