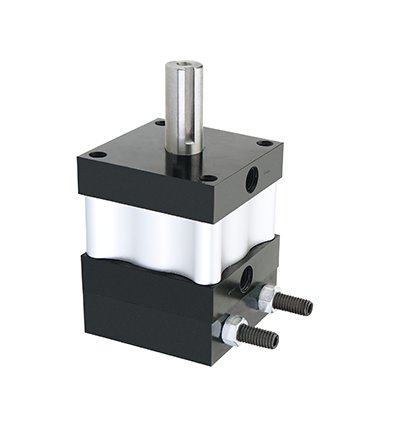

Compact Rotation Actuator - 270º, 350in·lb Torque
Compact Rotation Actuator - 270º, 350in·lb Torque
SKU:ROT-b7a1a5
Compact Rotary Vane Actuator - 270º Rotation, 350in·lb Torque. Zero backlash, precise repeatability, continuous full torque.
Regular price
$849.99
Regular price
Sale price
$849.99
Unit price
per
Initiate Order
Compact Rotation Actuator - 270º, 350in·lb Torque
$849.99
Quantity: 1
Claim Your Seller Account
Compact Rotation Actuator - 270º, 350in·lb Torque
$849.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Compact Rotation Actuator features a 270-degree rotation angle, delivering precise and continuous rotation with a maximum torque of 350 in·lbs. Designed by Compact Automation Products, this Rotary Vane Actuator offers optional features like stop cushioning and position feedback. With patented Urethane seals for durability and long cycle life, this actuator ensures zero backlash, precise repeatability, and full torque throughout the rotation. Ideal for institutional and government applications requiring reliable performance and adaptability.
Product Specifications
Features Features
Stop Cushioning (Optional)Position Feedback (Optional)16 base Comp-Act®'s with torque outputs from 87 in.lbs to 1000 in.lbs.Rotations 45, 90,180 & 270 degreesOne moving part providing:Zero BacklashNo loss of motion.Precise RepeatabilityContinuous full torque throughout the rotationPatented Urethane seals for:Long cycle life and non-lube serviceOptions and modifications to fit your application
Specifications Actuator Style
Rotary Vane (Single)
Specifications Body Material
Aluminum
Specifications Length
7.42 in
Specifications Maximum Torque
350 in·lb
Specifications Number Of Shafts
Single Shaft
Specifications Operating Pressure Range High
200 psi
Specifications Operating Pressure Range Low
35 psi
Specifications Operating Temperature High
180 ºF
Specifications Operating Temperature Low
-20 ºF
Specifications Physical Dimensions
3.03 in²
Specifications Rotational Output
Shaft
Specifications Rotation Angle
270 º | Indexing/Multi-Position (Optional)
Specifications Shaft Length Or Table Height
1.75 in
Specifications Shaft Or Table Diameter
0.75 in
Specifications Standard
english_2_1_2
Specifications Technology Type
Hydraulic (Optional) | Pneumatic
