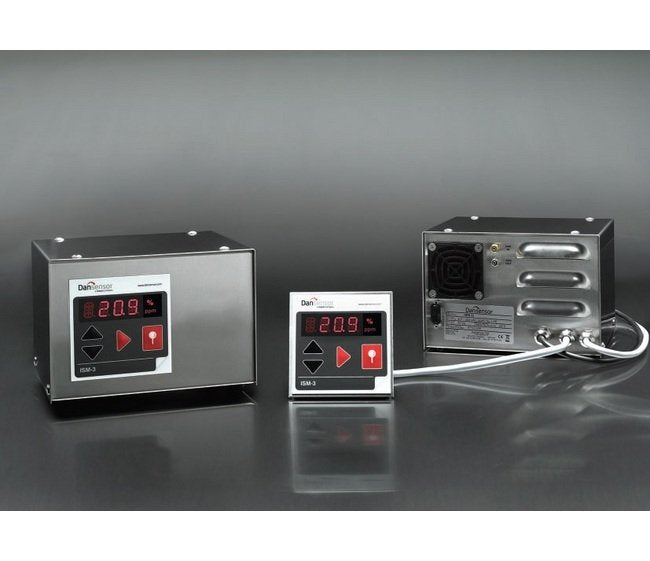

Dansensor® ISM-3 Sensor Module with Pressurized Tank
Dansensor® ISM-3 Sensor Module with Pressurized Tank
SKU:PRO-e16786
Reliable oxygen monitoring module with self-diagnostics & wide measuring range for industrial applications.
Regular price
$1,899.99
Regular price
Sale price
$1,899.99
Unit price
per
Initiate Order
Dansensor® ISM-3 Sensor Module with Pressurized Tank
$1,899.99
Quantity: 1
Claim Your Seller Account
Dansensor® ISM-3 Sensor Module with Pressurized Tank
$1,899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Dansensor® ISM-3 Sensor Module with Pressurized Tank is a high-precision oxygen monitoring process analyzer designed for measuring oxygen concentration in inert gases or gas mixtures. With a solid-state O2 sensor, built-in display, and self-diagnostics for system fault monitoring, this module ensures accuracy better than ±1% of the reading. Benefit from its low maintenance demand, wide measuring range, and two oxygen concentration alarm settings for enhanced reliability in industrial gas monitoring applications.
Product Specifications
Additional Information Additional Information
Optional sample kit for flow packaging machines (part number 270165)
Benefits Benefits
High reliability and accuracy- better than ± 1% of readingLow maintenance demandMeasuring range:1 ppm - 100% (std. 0-20,9%)Self diagnostics - monitoring of vital parameters with alarm output
Features Features
2 oxygen concentration alarmsSample gas supply by gas pressure or internal pump (specific instrument versions)Different set-up options for adaptation to the analyzer application0/4 - 20 mA as standard (optional: 0-10V if specified with the order)
Note Note
Specifications subject to change without notice. Further specifications are available in the User Guide.
Specifications Accuracy
± 1 Digit in Calibrated Range. | Better than ± 1 % of the Displayed Value
Specifications Alarms
Two O2 concentration alarm settings, system fault alarm (bad gas flow, sensor error, etc.)
Specifications Alternating Current Ac Voltage
230 V
Specifications Alternating Current Ac Voltage Tolerance
10 %
Specifications Built In Display
Yes
Specifications Cabinet Depth
160 mm
Specifications Cabinet Height
125 mm
Specifications Cabinet Material
Stainless Steel
Specifications Cabinet Width
185 mm
Specifications Calibration Intervals
12 m
Specifications Current Output
0/4 - 20 mA as standard (optional: 0-10V if specified with the order), scale can be defined by operator, i.e. 0-1%, 0-100 ppm.
Specifications Frequency
50 Hz | 60 Hz
Specifications Maximum Alarm Output
48 V | 1 A
Specifications Measuring Range
0 to 100 %
Specifications Note For Alarm Output
Common, N.O. or N.C.
Specifications Note For Measuring Range
Standard calibration 0-20.9%
Specifications Pressure
Yes
Specifications Pump
No
Specifications Remote Display
No
Specifications Sensor Flow
125 mL/min
Specifications Sensor Type
Ceramic | Solid State O2 Sensor
Specifications Signal Input
10 to 32 VDC external measuring control signal for start/stop of the analyzer.
Specifications Start Up Time
10 min
Specifications Weight
3.8 kg
