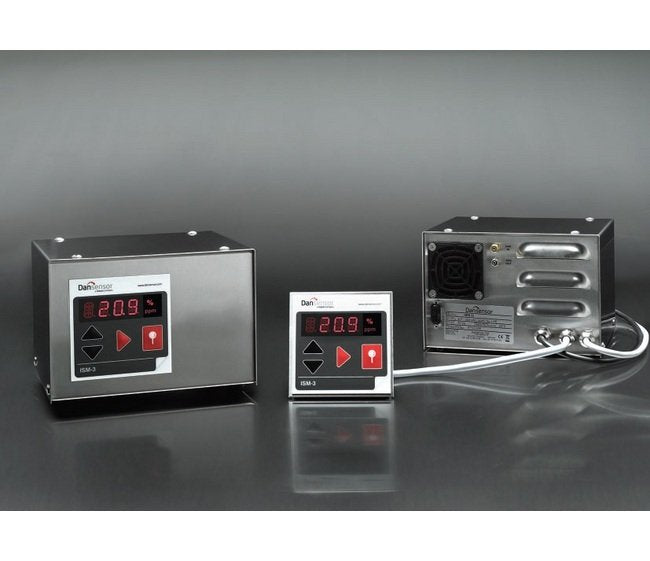

Dansensor® ISM-3i Oxygen Sensor Module with Pump
Dansensor® ISM-3i Oxygen Sensor Module with Pump
SKU:PRO-b18d0c
Reliable Dansensor® ISM-3i Oxygen Sensor Module with Pump for accurate gas purity measurements. High reliability, low maintenance, and compliance with industry standards.
Regular price
$1,299.99
Regular price
Sale price
$1,299.99
Unit price
per
Initiate Order
Dansensor® ISM-3i Oxygen Sensor Module with Pump
$1,299.99
Quantity: 1
Claim Your Seller Account
Dansensor® ISM-3i Oxygen Sensor Module with Pump
$1,299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Dansensor® ISM-3i Oxygen Sensor Module with Pump is a reliable solution for oxygen monitoring in gas mixtures. Featuring a solid-state O2 sensor and high accuracy of better than ± 1% of the displayed value, this module offers two oxygen concentration alarms, self-diagnostics, and a measuring range from 1 ppm to 100%. With a stainless steel cabinet and optional sample kit for flow packaging machines, it combines durability with flexibility for various applications. The ISM-3i ensures low maintenance demands, high reliability, and compliance with industry standards, making it an ideal choice for gas purity measurements in industrial settings.
Product Specifications
Additional Information Additional Information
Optional sample kit for flow packaging machines (part number 270165)
Benefits Benefits
High reliability and accuracy- better than ± 1% of readingLow maintenance demandMeasuring range:1 ppm - 100% (std. 0-20,9%)Self diagnostics - monitoring of vital parameters with alarm output
Features Features
2 oxygen concentration alarmsSample gas supply by gas pressure or internal pump (specific instrument versions)Different set-up options for adaptation to the analyzer application0/4 - 20 mA as standard (optional: 0-10V if specified with the order)
Note Note
Specifications subject to change without notice. Further specifications are available in the User Guide.
Specifications Accuracy
± 1 Digit in Calibrated Range. | Better than ± 1 % of the Displayed Value
Specifications Alarms
Two O2 concentration alarm settings, system fault alarm (bad gas flow, sensor error, etc.)
Specifications Alternating Current Ac Voltage
115 V
Specifications Alternating Current Ac Voltage Tolerance
10 %
Specifications Built In Display
No
Specifications Cabinet Depth
125 mm
Specifications Cabinet Height
125 mm
Specifications Cabinet Material
Stainless Steel
Specifications Cabinet Width
185 mm
Specifications Calibration Intervals
12 m
Specifications Current Output
0/4 - 20 mA as standard (optional: 0-10V if specified with the order), scale can be defined by operator, i.e. 0-1%, 0-100 ppm.
Specifications Display Depth
20 mm
Specifications Display Height
96 mm
Specifications Display Width
96 mm
Specifications Frequency
50 Hz | 60 Hz
Specifications Maximum Alarm Output
48 V | 1 A
Specifications Measuring Range
6 to 100 %
Specifications Note For Alarm Output
Common, N.O. or N.C.
Specifications Note For Display
3 mm bezel for panel mounting.
Specifications Note For Measuring Range
Standard calibration 0-20.9%
Specifications Pressure
No
Specifications Pump
Yes
Specifications Remote Display
Yes
Specifications Sensor Flow
125 mL/min
Specifications Sensor Type
Ceramic | Solid State O2 Sensor
Specifications Signal Input
10 to 32 VDC external measuring control signal for start/stop of the analyzer.
Specifications Start Up Time
10 min
Specifications Weight
3.7 kg
