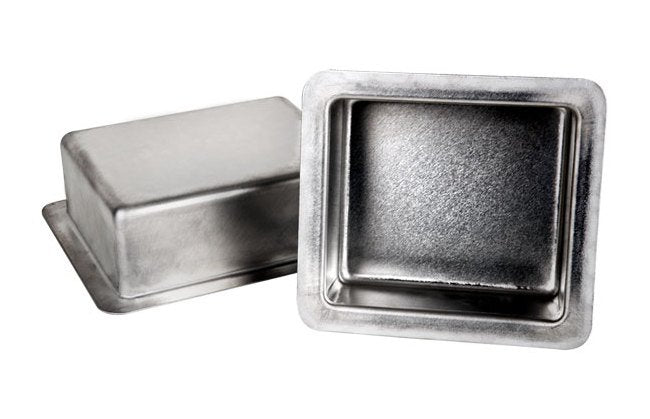

Deep Drawn Flanged Aluminum and Stainless Steel Housings
Deep Drawn Flanged Aluminum and Stainless Steel Housings
Customizable seamless deep drawn housings in aluminum and stainless steel for aerospace and defense applications.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
Deep Drawn Flanged Aluminum and Stainless Steel Housings
$39.99
Quantity: 1
Claim Your Seller Account
Deep Drawn Flanged Aluminum and Stainless Steel Housings
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Experience seamless and customizability with our Deep Drawn Flanged Housings made from aerospace aluminum alloys. These can be tailored to meet your exact specifications, with options for holes, finishes, and markings. Enjoy the benefits of 100% seamless construction, quick turn-around times, and no minimum order quantity requirements. Perfect for aeronautics, military, electronics, and more.
Product Specifications
Benefits Additional Information
ZERO provides value added services and operations. We understand and provide continuous delivery of products to meet your expectations in Kanban and long term agreements.ZERO has no minimum order quantity required. We can draw exactly what you need! Price breaks are available at 10, 25, 50, 100, and 250+ piece quantities.
Benefits Benefits
The benefits start with a single sheet of metal. ZERO uses only the highest quality aerospace aluminum alloys. Each piece is precision sheared and formed using the ZERO method of deep drawing, then trimmed and tempered to your specification.
Benefits Benefits Of Zeros Deep Drawing
Created from a single sheet of metalCans are 100% seamlessLarge quantities of deep drawn products can be easily manufacturedUniform material thickness can be achievedOver 30,000 ToolsNo tooling or set up cost on stock sizesFree trimming to height specificationLow tooling cost for custom jobsIn-house modification services (to adapt a standard can to special requirements)Quick turn-around, including next-day shipping if required5 axis laser capabilities for precision modifications and prototyping
Custom Options Accessories
Blowers | Brackets | Card Edges | Covers | Fans | Feet | Flanges | Gaskets | Handles | Hinges | Latches | Mounting Box | Nameplates | Panels
Custom Options Alloy Custom
Many materials, other than aluminum, can be deep drawn. ZERO has the ability to draw most materials on special order.
Custom Options Assembly
Assemble Components | Install Rivets, Screws and Washers | Mount Hardware
Custom Options Finish Custom
Black Anodize | Clear Anodize | Custom Anodize | Custom Powder-Coat Paint | Custom Wet Paint | FED-Std-595, Pantone and RAL | Gold Anodize | Gold Chemical Film | Standards Powder-Coat Paint | Standards Wet Paint | Yellow Chemical Film
Custom Options Marking Custom
Bar Code | Emboss | Etch and Fill | Hot Stamp | Label | Silk-Screen | Stencil
Custom Options Modified Or Custom Deep Drawn Parts
ZERO has a completely equipped design and manufacturing facility to perform any secondary operation or modification to standard boxes and covers. We also have an experienced staff of tool and die makers to satisfy your custom or special deep drawn requirements.
Custom Options Operations
Louvering | Piercing | Ramping | Tapping | Welding
Custom Options Surface Custom
Countersink Holes | Custom Shapes | Obround Laser Cut Holes | Round Laser Cut Holes | Square/Rectangle Laser Cut Holes
Custom Options Testing
Die Penetrant | Drop Test | Pull Test | Watertight Integrity
Custom Options Tolerances Custom
Closer tolerances, on trim heights can be provided on special order at additional cost. Standard edge to feature dimensions will be held to ±0.030.Feature to feature will be held ±0.010.
General Description General Description
ZERO Manufacturing's deep-drawn Square and Rectangular boxes are available in any height between the maximum and minimum dimensions listed. When ordering, please provide the part number and height desired in inches.Remember that ZERO can save you time and money by fulfilling all your modification needs in-house. Eliminate extra vendors and let ZERO finish the job for you.
Note Note
Height: Choose between minimum and maximum heights listed.When ordering give part number and height desired in inches. Example: HF0300506-1.00 = Rectangular flanged housing 3.00" W x 5.00" L x 1.00" H.
Options Certifications
First Article Report | Material (Chemical/Physical) | Material Source Inspection
Options Finish
Anodize | Chemical Film | Paint Coat | Powder-Coat
Options Heat Treating
Standard heat treating is Fast and Slow Cycle Hydrogen Annealing. ZERO can Heat Treat Alloy 6061-0 to a T-4 or T-6 condition in conjunction with the drawing process.
Options Marking
Part Number Label | Rubber Stamp
Options Packaging
Bag and Tag | Bag Only | Egg Crate
Options Surface
Bead Pattern (if Available) | Deburr | Sandblast | Sand-o-Flex (Jitterbug) | Sleeve Cut
Specifications Alloy
1100-0
Specifications Blank Gauge Thickness Before Draw
0.050 in
Specifications Flange Width
0.50 in
Specifications Inside Corner Radius R1
0.13 in
Specifications Inside Corner Radius R2
0.44 in
Specifications Made In
USA
Specifications Minimum Order
1
Specifications Outside Flange Radius Top R3
0.09 in
Specifications Outside Flange Radius Top R4
0.5 in
Specifications Outside Height Maximum
1.500 in
Specifications Outside Height Minimum
0.75 in
Specifications Outside Width
3.73 in
Tolerances Maximum Bow Tolerances For 6 To 12 Inch Basic Size
0.06 in
Tolerances Maximum Bow Tolerances For Over 12 Inch Basic Size
0.12 in
Tolerances Maximum Bow Tolerances For Up To 6 Inch Basic Size
0.03 in
Tolerances Trim Height
Over 24 in
Tolerances Trim Height Tolerance
0.06 in
Tolerances Width
6 to 24 in
Tolerances Width Tolerance
0.03 in
