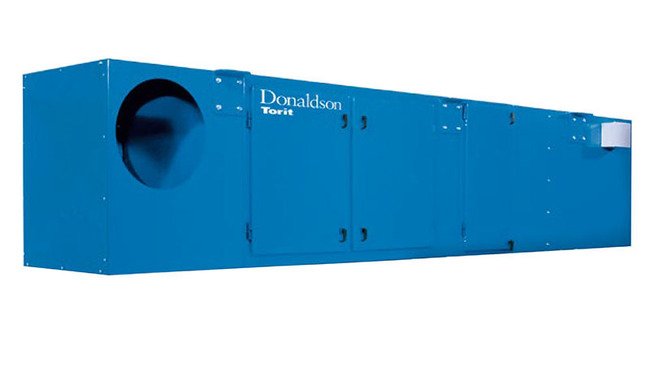

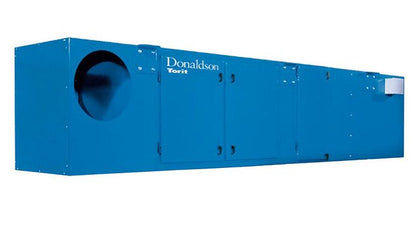

Donaldson® Modular Mediafilter™ Horizontal Series 2000 CFM Source Mist Collector
Donaldson® Modular Mediafilter™ Horizontal Series 2000 CFM Source Mist Collector
SKU:MOD-583deb
Efficiently capture contaminants with the Donaldson® Modular Mediafilter™ Source Mist Collector.
Regular price
$3,499.99
Regular price
Sale price
$3,499.99
Unit price
per
Initiate Order
Donaldson® Modular Mediafilter™ Horizontal Series 2000 CFM Source Mist Collector
$3,499.99
Quantity: 1
Claim Your Seller Account
Donaldson® Modular Mediafilter™ Horizontal Series 2000 CFM Source Mist Collector
$3,499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Donaldson® Modular Mediafilter™ Horizontal Series 2000 CFM Source Mist Collector offers a powerful solution for industrial air filtration. With a dual drainage system and a 3 or 5 hp power pack, this collector efficiently captures contaminants. Featuring high-quality 1st and 2nd stage filters and a ceiling mount design that saves space, it ensures a cleaner work environment, meeting OSHA Clean Air Standards. Consider genuine Donaldson Torit replacement filters and parts to optimize performance.
Product Specifications
Additional Information
Ceiling mount, horizontal design saves valuable floor spaceDesign features provide easy filter change out and simple maintenanceAvailable in ambient or source capture modelsProvides a cleaner work environment for maximum productivityHelps support OSHA Clean Air Standards

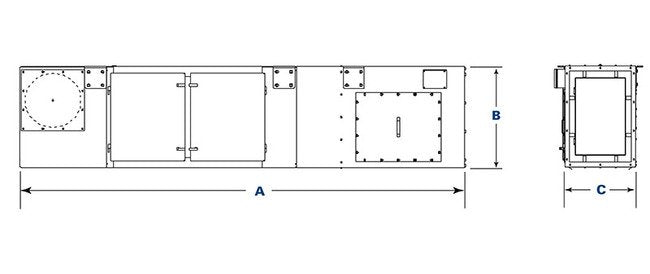

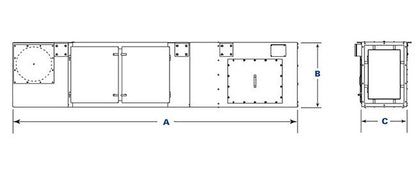

Dimensions Dimension A
126.5 in | 3213.1 mm
Dimensions Dimension B
31.8 in | 807.7 mm
Dimensions Dimension C
29.5 in | 749.3 mm
Equipment Options
First-stage high efficiency filter, 24 x 24 x 4 inches (609.6 x 609.6 x 101.6 millimeters)First-stage multi-vee filter, 24 x 24 x 4 inches (609.6 x 609.6 x 101.6 millimeters)HEPA/95% DOP filter module, 24 x 24 x 11.5 inches (609.6 x 609.6 x 292.1 millimeters)Carbon filter moduleMultiple power pack options, including explosion-proof motorsP-Trap assemblyP-Trap with Y-Strainer assembly1-Gallon (3.8-Liter) container
Note
Significantly improve the performance of your collector with genuine Donaldson Torit replacement filters and parts.All Rights Reserved. All products, product specifications, and data (airflow, capacity, dimensions, or availability) are subject to change without notice, and may vary by region or country. Donaldson Torit is a registered trademark of Donaldson Company, Inc. Contains Donaldson proprietary technology.
Specifications 1st Stage Filter
4" (101.6 mm) Impinger and 1" (25.4 mm) Aluminum Mesh
Specifications 2nd Stage Filter
Vee-Bag 126 sq. ft. (11.7 m²)
Specifications Collector Type
Source
Specifications Inlet Collar
10 in | 12 in | 14 in | 254.0 mm | 304.8 mm | 355.6 mm
Specifications Nominal Airflow
2000 ft³/min | 3397 m³/h
Specifications Shipping Weight
575 lb | 260.8 kg
