Donaldson® Torit® Ambient Ventilation System
Donaldson® Torit® Ambient Ventilation System
SKU:AMB-072f3c
Efficient ceiling-mount ventilation system with Ultra-Web® FR filters, saving space and maximizing productivity.
Regular price
$8,999.99
Regular price
Sale price
$8,999.99
Unit price
per
Initiate Order
Donaldson® Torit® Ambient Ventilation System
$8,999.99
Quantity: 1
Claim Your Seller Account
Donaldson® Torit® Ambient Ventilation System
$8,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

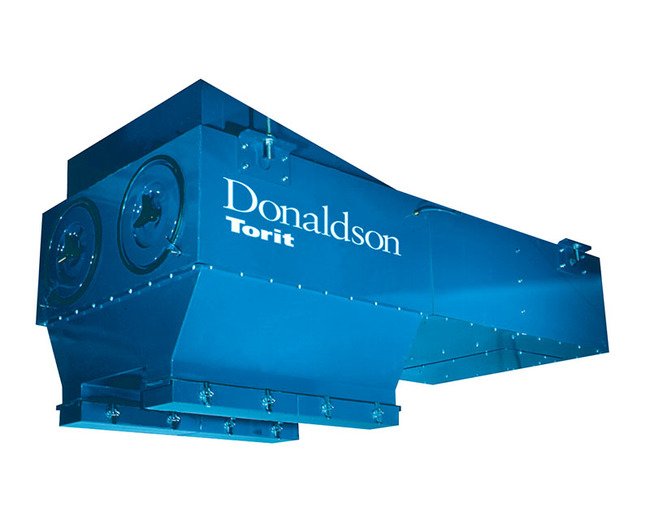

The Donaldson® Torit® Ambient Ventilation System is a self-contained, ceiling-mount general ventilation system designed for high efficiency. Featuring Ultra-Web® FR cartridge filters for superior filtration efficiency and long filter life, this system saves plant floor space with easy filter changeout and maintenance. With a nominal airflow of 2900 ft³/min, 10-year warranty, and advanced features like recirculation of clean air and FLUENT® design for minimal maintenance expense, it ensures a cleaner work environment and maximum productivity.
Product Specifications
Additional Information
MERV (The Minimum Efficiency Reporting Value (MERV) of this filter cartridge has been determined through independent laboratory testing using ASHRAE 52.2 (2007) test standards. The MERV rating was determined at a face velocity of 118 feet per minute (36.0 meters per minute) and loading up to four inches (101.6 millimeters) water gauge. Actual efficiency of any filter cartridge will vary according to the specific application parameters. Dust concentration, airflow, particle characteristics, and pulse cleaning methods all affect filtration efficiency.) 15 filtration efficiency rating per ASHRAE 52.2-2007Recirculation of clean air reduces need for costly make-up airFLUENT® (Registered trademark of Fluent, Inc.) designed inlet and dust hopper minimize fume re-entrainment and reduce maintenance expense.Four small, easy-handling dust pans are lightweight even when full and allow quick dust disposalProvides a cleaner work environment for maximum productivity

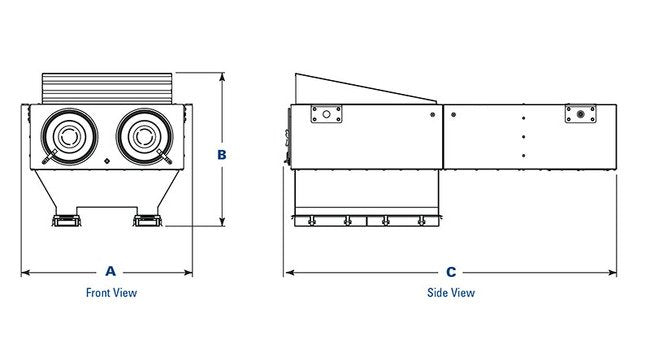

Dimensions Height
97.4 in | 2474 mm
Dimensions Length
50.0 in | 1270 mm
Dimensions Width
44.9 in | 1140.5 mm
Options
Magnehelic® (Registered trademarks of Dwyer Instruments, Inc.) gaugePhotohelic® (Registered trademarks of Dwyer Instruments, Inc.) gaugeHopperSolenoid valve silencer
Specifications Filter Area
636 ft² | 59.1 m²
Specifications Inlet Velocity
1325 fpm | 403.9 m/min
Specifications Nominal Airflow
2900 ft³/min | 4926 m³/h
Specifications Number Of Filters Ultra Web Fr
4
Specifications Number Of Valves
2
Specifications Shipping Weight
900 lb | 32.2 kg
Specifications Sound Level
71 dBA
Specifications Valve Size
3/4 in | 19.05 mm
Specifications Warranty
10 years
Standard Features
Ultra-Web® FR cartridge filters208/230/460/60/3 voltage3 hp TEFC blower motor
