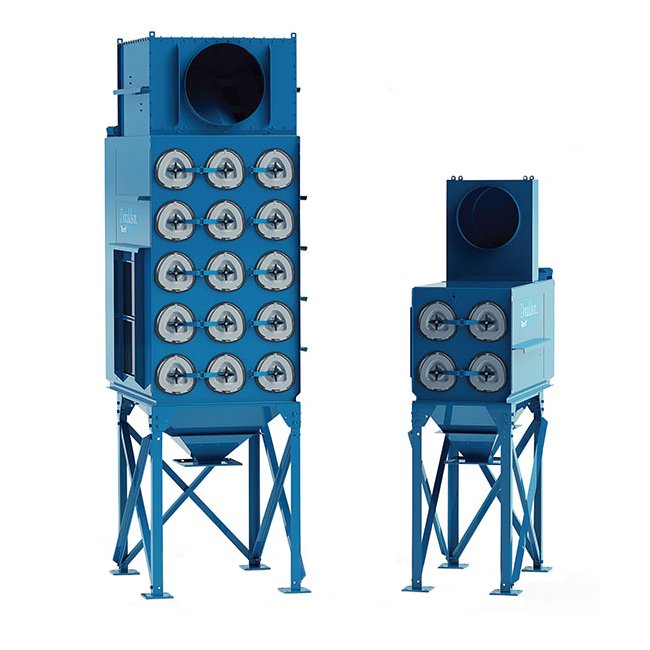

Donaldson® Torit® Downflo® Evolution 12 Filters Dust Collector, 140in
Donaldson® Torit® Downflo® Evolution 12 Filters Dust Collector, 140in
SKU:DOW-df152d
Revolutionize dust collection with the Donaldson® Torit® Downflo® Evolution 12 Filters Dust Collector.
Regular price
$8,999.99
Regular price
Sale price
$8,999.99
Unit price
per
Initiate Order
Donaldson® Torit® Downflo® Evolution 12 Filters Dust Collector, 140in
$8,999.99
Quantity: 1
Claim Your Seller Account
Donaldson® Torit® Downflo® Evolution 12 Filters Dust Collector, 140in
$8,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Donaldson® Torit® Downflo® Evolution 12 Filters Dust Collector with 140in Dimension A offers breakthrough performance in dust collection. This best-in-class collector reduces filter costs, saves valuable floor space, and incorporates advanced Ultra-Web® nanofiber filtration. With precise engineering, it complies with industry standards, making it ideal for dry bulk, food processing, welding, and more.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Additional Information
A smaller collector helps lower the initial purchase price, reduces filter replacement costs, and opens up valuable manufacturing floor space.This state of the art collector, coupled with Donaldson®'s industry-leading Ultra-Web® nanofiber filtration technology, is truly an intelligent design.
Applications
Dry Bulk | Food Processing | Glass | Metal Grinding | Metal Manufacturing | Pharmaceutical | Plasma Cutting | Thermal Spray | Welding

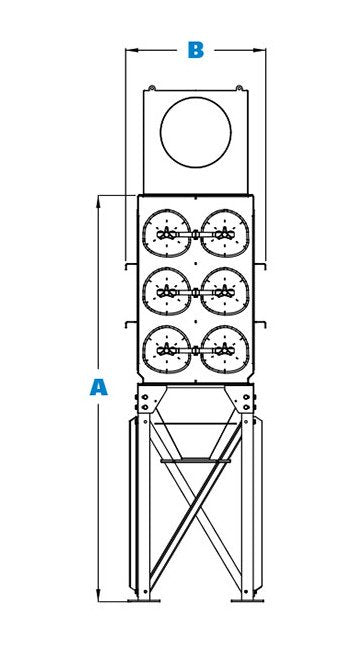

Dimensions Dimension A
140 in | 3556 mm
Dimensions Dimension B
48 in | 1219.0 mm
Dimensions Dimension C
101 in | 2565 mm
Dimensions Dimension D
24.0 in | 36.0 in | 42.0 in | 48.0 in | 610 mm | 915 mm | 1067 mm | 1219 mm
Operating Conditions Alternating Current Ac Control Voltage
120 V
Operating Conditions Basic Wind Speed And Exposure C Per Interna
90 mph | 145 km/h
Operating Conditions Compressed Air Required
90 to 100 psi | 6.2 to 6.9 bar
Operating Conditions Direct Current Dc Control Voltage
24 V
Operating Conditions Housing Construction Material
Steel
Operating Conditions Housing Construction Material Thickness
3/16 in. (4.8 mm) to 10 Gauge
Operating Conditions Housing Rating
-25 to 10 inH2O | -635 to 254 mmH2O
Operating Conditions Operating Temperature
150 ºF | 66 ºC
Operating Conditions Seismic Spectral Acceleration S1 Per Intern
0.6 g
Operating Conditions Seismic Spectral Acceleration Ss Per Intern
1.5 g
Specifications Approximate Shipping Weight
2800 lb | 1043 kg
Specifications Inlet Size For 24 Inch In Dimension D
10 to 16 in
Specifications Inlet Size For 36 Inch In Dimension D
17 to 24 in
Specifications Inlet Size For 42 Inch In Dimension D
26 in | 28 in | 30 in | 32 in
Specifications Inlet Size For 48 Inch In Dimension D
34 in | 36 in | 38 in | 40 in | 42 in
Specifications Number Of Filters
12
Specifications Number Of Valves
6
Specifications Ultra Web Filter Area
3048 ft² | 283.2 m²
