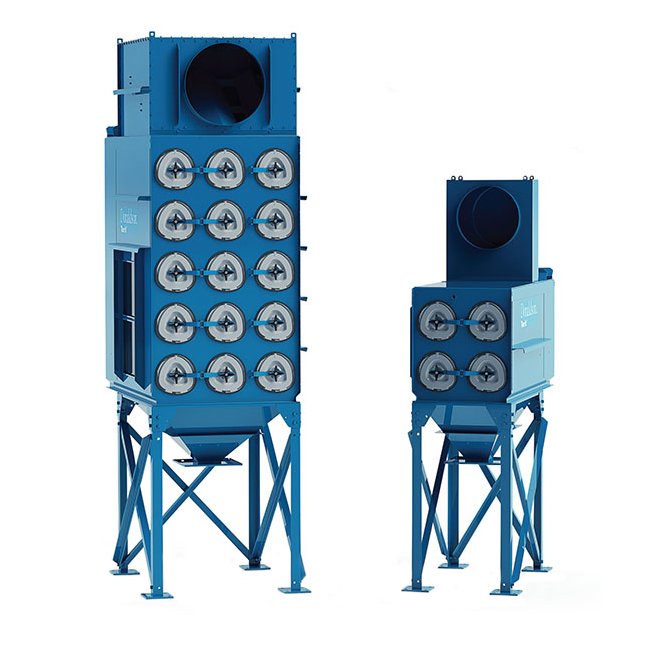

Donaldson® Torit® Downflo® Evolution 18 Filters Dust Collector
Donaldson® Torit® Downflo® Evolution 18 Filters Dust Collector
SKU:DOW-89639f
Revolutionize dust collection with the Donaldson® Torit® Downflo® Evolution 18 Filters Dust Collector. Efficiency redefined!
Regular price
$9,499.99
Regular price
Sale price
$9,499.99
Unit price
per
Initiate Order
Donaldson® Torit® Downflo® Evolution 18 Filters Dust Collector
$9,499.99
Quantity: 1
Claim Your Seller Account
Donaldson® Torit® Downflo® Evolution 18 Filters Dust Collector
$9,499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Experience the unparalleled efficiency of the Donaldson® Torit® Downflo® Evolution 18 Filters Dust Collector. This innovative collector reduces equipment size and filter requirements by up to 40%, cutting costs and optimizing floor space. With a vast Ultra-Web® Filter Area of 4572 ft², it excels in dry bulk, food processing, metal grinding, and more. Endorsed by industry leaders, this collector ensures superior performance and compliance with global safety standards.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Additional Information
A smaller collector helps lower the initial purchase price, reduces filter replacement costs, and opens up valuable manufacturing floor space.This state of the art collector, coupled with Donaldson®'s industry-leading Ultra-Web® nanofiber filtration technology, is truly an intelligent design.
Applications
Dry Bulk | Food Processing | Glass | Metal Grinding | Metal Manufacturing | Pharmaceutical | Plasma Cutting | Thermal Spray | Welding
Dimensions Dimension A
140 in | 3556 mm
Dimensions Dimension B
68 in | 1727.0 mm
Dimensions Dimension C
101 in | 2565 mm
Dimensions Dimension D
24.0 in | 36.0 in | 42.0 in | 48.0 in | 610 mm | 915 mm | 1067 mm | 1219 mm
Operating Conditions Alternating Current Ac Control Voltage
120 V
Operating Conditions Basic Wind Speed And Exposure C Per Interna
90 mph | 145 km/h
Operating Conditions Compressed Air Required
90 to 100 psi | 6.2 to 6.9 bar
Operating Conditions Direct Current Dc Control Voltage
24 V
Operating Conditions Housing Construction Material
Steel
Operating Conditions Housing Construction Material Thickness
3/16 in. (4.8 mm) to 10 Gauge
Operating Conditions Housing Rating
-25 to 10 inH2O | -635 to 254 mmH2O
Operating Conditions Operating Temperature
150 ºF | 66 ºC
Operating Conditions Seismic Spectral Acceleration S1 Per Intern
0.6 g
Operating Conditions Seismic Spectral Acceleration Ss Per Intern
1.5 g
Specifications Approximate Shipping Weight
3500 lb | 1588 kg
Specifications Inlet Size For 24 Inch In Dimension D
10 to 16 in
Specifications Inlet Size For 36 Inch In Dimension D
17 to 24 in
Specifications Inlet Size For 42 Inch In Dimension D
26 in | 28 in | 30 in | 32 in
Specifications Inlet Size For 48 Inch In Dimension D
34 in | 36 in | 38 in | 40 in | 42 in
Specifications Number Of Filters
18
Specifications Number Of Valves
9
Specifications Ultra Web Filter Area
4572 ft² | 424.8 m²
