Donaldson® Torit® Downflo® Oval 10 Dust Collector (45.0 in)
Donaldson® Torit® Downflo® Oval 10 Dust Collector (45.0 in)
SKU:DOW-b20b31
Experience unmatched filtration efficiency and cost savings with Donaldson® Torit® Downflo® Oval 10 Dust Collector. Benefit from cleaner air, longer filter life, and enhanced energy efficiency.
Regular price
$13,999.00
Regular price
Sale price
$13,999.00
Unit price
per
Initiate Order
Donaldson® Torit® Downflo® Oval 10 Dust Collector (45.0 in)
$13,999.00
Quantity: 1
Claim Your Seller Account
Donaldson® Torit® Downflo® Oval 10 Dust Collector (45.0 in)
$13,999.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

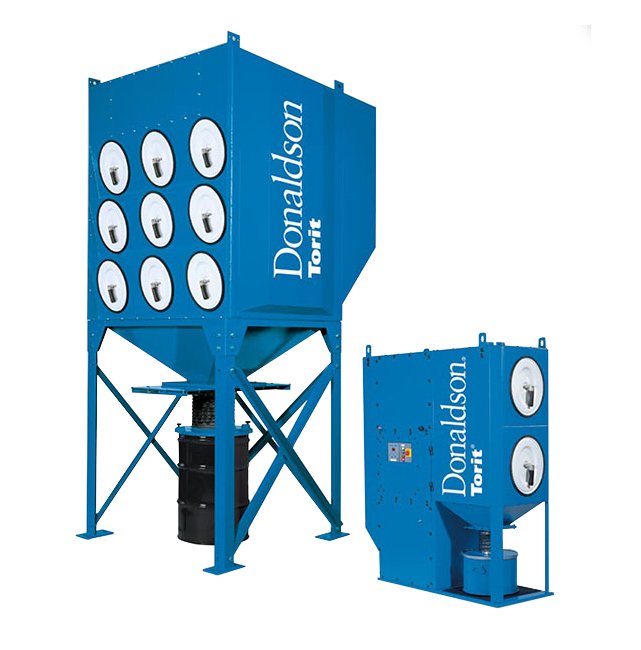

The Donaldson® Torit® Downflo® Oval 10 Dust Collector is an advanced solution that offers superior filtration capacity with its Ultra-Web® nanofiber technology. With 10 filter rows and a high-performance design, this dust collector ensures cleaner air, extended filter life, and substantial cost savings. Its compact yet robust construction, coupled with innovative cleaning technology and nanofiber filters, facilitates increased airflow without compromising space or filter integrity.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Additional Information
The DFO advantage is found in the collector's proprietary design and components. The combination of a new cabinet design that greatly lowers cabinet velocities, proprietary Extra-Life™ cleaning technology, and proven Ultra-Web® nanofiber filters allows more airflow through the collector without increasing the size of the footprint or damaging the filters.A smaller collector helps lower the initial purchase price, reduces filter replacement costs and opens up valuable manufacturing floor space.

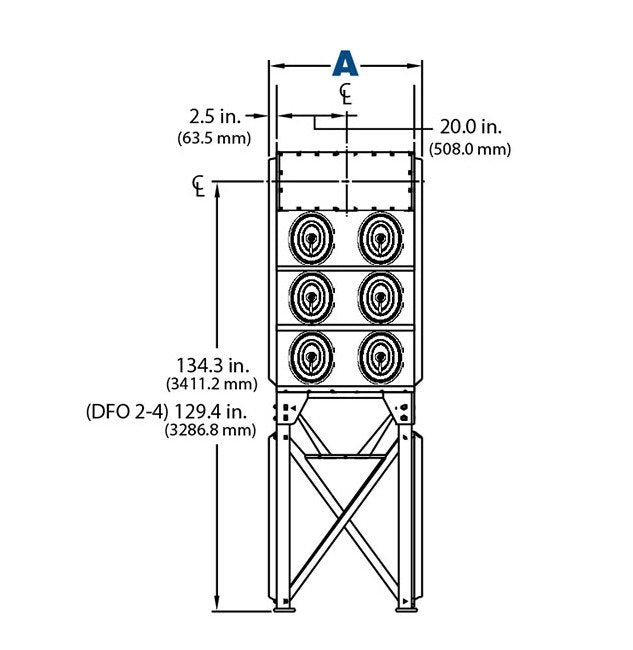

Dimensions Dimension A
45.0 in | 1143.0 mm
Dimensions Dimension B
146.5 in | 3721.1 mm
Dimensions Dimension C
85.3 in | 2166.6 mm
Note
Provided through Donaldson® Torit® fan program.
Operating Conditions Compressed Air Required
90 to 100 psi | 6.2 to 6.9 bar
Operating Conditions Housing Construction Collector Thickness
10 gauge
Operating Conditions Housing Construction Tubesheet Thickness
7 gauge
Operating Conditions Housing Rating
-20 inH2O | -508 mmH2O
Operating Conditions Seismic Rating Zone
4
Operating Conditions Wind Load Rating
100 mph | 161 km/h
Operations
23 standard model sizesCustomized sizes availableMany options and accessoriesExceptionally compact designSignificant energy savings
Specifications Approximate Shipping Weight
1900 lb | 861.8 kg
Specifications Nominal Airflow
950 to 7980 ft³/min | 1613.7 to 13555.2 m³/h
Specifications Number Of Cartridges
10
Specifications Number Of Filters
10
Specifications Number Of Filter Rows
3
Specifications Number Of Valves
5
Specifications Ultra Web Filter Area
1900 ft² | 176.5 m²
