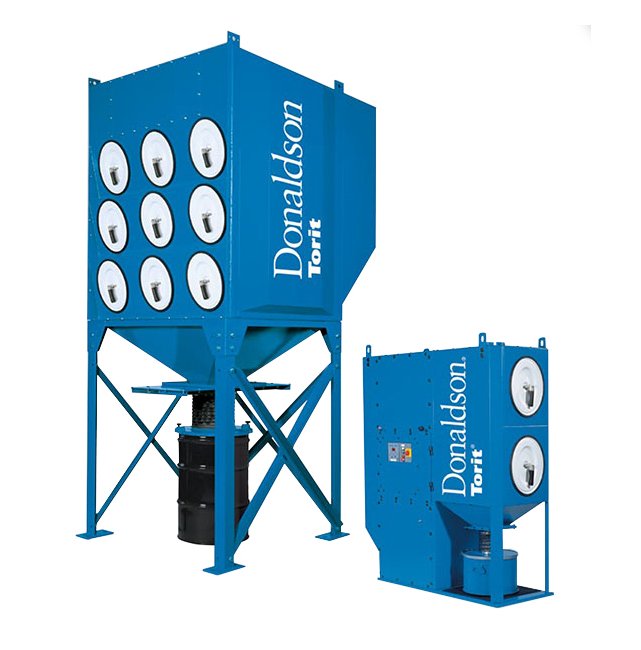

Donaldson® Torit® Downflo® Oval 32 Dust Collector with 85.0 Inch Dimension
Donaldson® Torit® Downflo® Oval 32 Dust Collector with 85.0 Inch Dimension
SKU:DOW-80ce56
Enhanced Downflo® Oval 32 Dust Collector - Cleaner air, longer filter life, cost savings!
Regular price
$24,999.99
Regular price
Sale price
$24,999.99
Unit price
per
Initiate Order
Donaldson® Torit® Downflo® Oval 32 Dust Collector with 85.0 Inch Dimension
$24,999.99
Quantity: 1
Claim Your Seller Account
Donaldson® Torit® Downflo® Oval 32 Dust Collector with 85.0 Inch Dimension
$24,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Donaldson® Torit® Downflo® Oval 32 Dust Collector sets a new standard in high-performance dust collection. With 32 cartridges and innovative Ultra-Web® filtration technology, it offers superior air quality, extended filter life, and significant cost savings. Designed for efficiency and space-saving, this collector features advanced cleaning technology and a compact footprint, making it ideal for industrial applications requiring premium dust control solutions.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Additional Information
The DFO advantage is found in the collector's proprietary design and components. The combination of a new cabinet design that greatly lowers cabinet velocities, proprietary Extra-Life™ cleaning technology, and proven Ultra-Web® nanofiber filters allows more airflow through the collector without increasing the size of the footprint or damaging the filters.A smaller collector helps lower the initial purchase price, reduces filter replacement costs and opens up valuable manufacturing floor space.

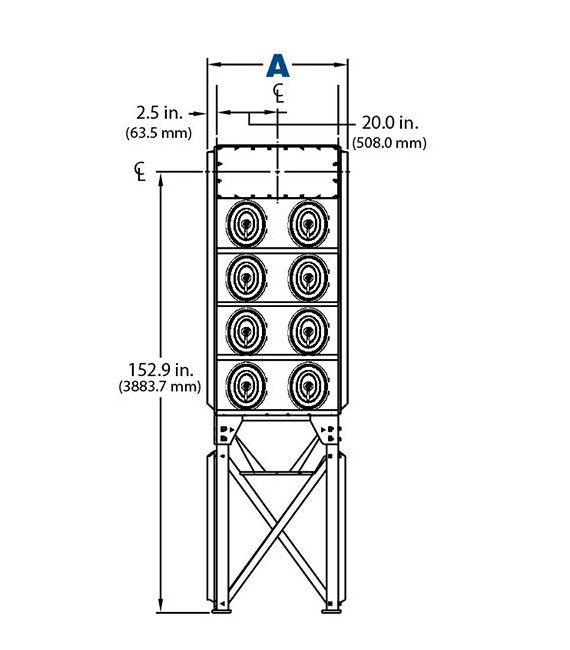

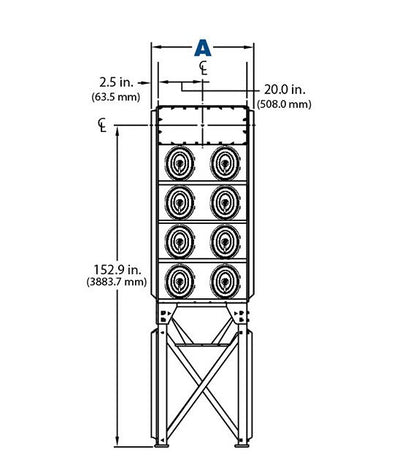

Dimensions Dimension A
85.0 in | 2159.0 mm
Dimensions Dimension B
165.1 in | 4193.5 mm
Dimensions Dimension C
85.3 in | 2166.6 mm
Note
Provided through Donaldson® Torit® fan program.
Operating Conditions Compressed Air Required
90 to 100 psi | 6.2 to 6.9 bar
Operating Conditions Housing Construction Collector Thickness
10 gauge
Operating Conditions Housing Construction Tubesheet Thickness
7 gauge
Operating Conditions Housing Rating
-20 inH2O | -508 mmH2O
Operating Conditions Seismic Rating Zone
4
Operating Conditions Wind Load Rating
100 mph | 161 km/h
Operations
23 standard model sizesCustomized sizes availableMany options and accessoriesExceptionally compact designSignificant energy savings
Specifications Approximate Shipping Weight
4200 lb | 1905.1 kg
Specifications Nominal Airflow
3040 to 25540 ft³/min | 5163.9 to 43383.5 m³/h
Specifications Number Of Cartridges
32
Specifications Number Of Filters
32
Specifications Number Of Filter Rows
4
Specifications Number Of Valves
16
Specifications Ultra Web Filter Area
6080 ft² | 564.8 m²
