Donaldson® Torit® Downflo® Workstation Dust Collector - 22000 CFM
Donaldson® Torit® Downflo® Workstation Dust Collector - 22000 CFM
SKU:DOW-495769
Enhance air quality and performance in your industrial workspace with the Donaldson® Torit® Downflo® Workstation Dust Collector. Efficient, robust, and maintenance-friendly.
Regular price
$8,699.99
Regular price
Sale price
$8,699.99
Unit price
per
Initiate Order
Donaldson® Torit® Downflo® Workstation Dust Collector - 22000 CFM
$8,699.99
Quantity: 1
Claim Your Seller Account
Donaldson® Torit® Downflo® Workstation Dust Collector - 22000 CFM
$8,699.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

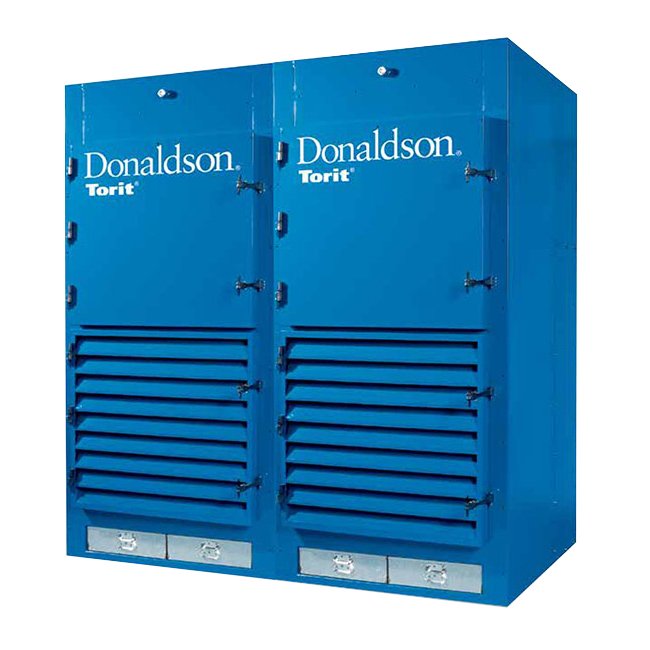

The Donaldson® Torit® Downflo® Workstation Dust Collector provides a versatile and efficient solution for industrial settings. With a nominal airflow of 22000 cubic feet per minute, this unit is equipped with 24 Ultra-Web® cartridge filters and a robust structure for heavy-duty operations. The proprietary design ensures high filtration efficiency, extended filter life, and easy maintenance. Ideal for metalworking, woodworking, and other processes requiring superior air quality and clean air recirculation.
Product Specifications
Additional Information
The Downflo® WorkStation's advantages are found in the collector's exclusive design and proprietary components. Featuring a ledgeless design in combination with proprietary Ultra-Web® filter media and ExtraLife™ cleaning technology, the DWS delivers exceptional performance in metalworking, woodworking, and process applications where high filtration efficiency and ledgeless construction is often a requirement.
Design Options Hard Wall Acoustic Panels
180 x 90 x 90 in | 4572 x 2286 x 2286 mm

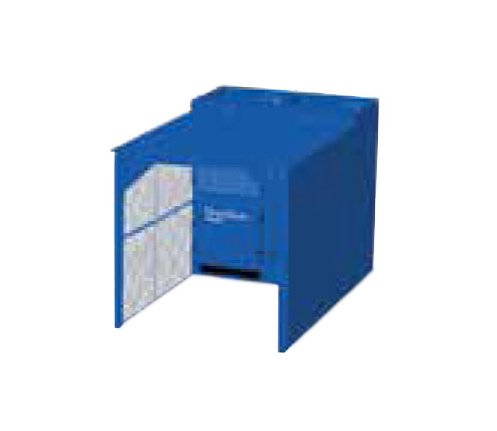

Design Options Hard Wall Galvanized Panels
180 x 90 x 90 in | 4572 x 2286 x 2286 mm
Design Options Note For Design Options
Dimensions are width x depth x height

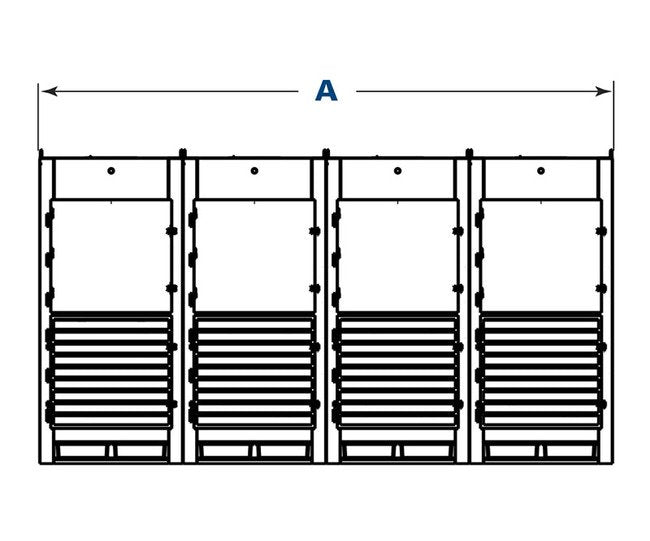

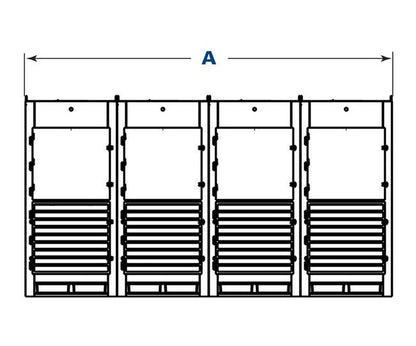

Dimensions Dimension A
180.0 in | 4572.0 mm

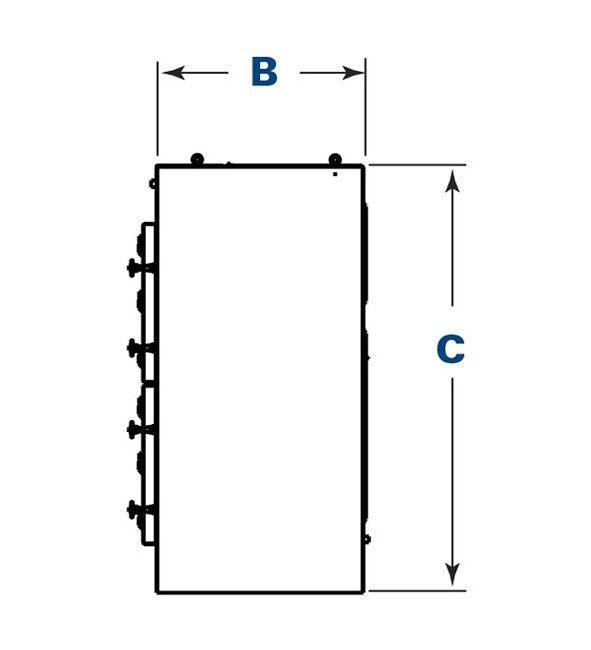

Dimensions Dimension B
47.8 in | 1214.1 mm
Dimensions Dimension C
96.0 in | 2438.4 mm
Features
Flexible, modular, self-contained workstationsProprietary Ultra-Web® cartridge filters provide cleaner air longerEasy filter access requires no toolsNo hoods or ductwork requiredEnergy savings - recirculate clean air and reduce the need for costly make-up airLedgeless construction minimizes dust build up inside the collectorReversible louver inlets
Operations
8 standard model sizesCustomized sizes availableMany options and accessories
Purpose
Most basic booth/hooding arrangementLightweight structure for use under most light conditionsLightweight structure for moderate sound controlHeavy-duty structure/smooth walls for easy washdownHeavy-duty structure for higher sound control
Specifications Nominal Airflow
22000 ft³/min | 37370 m³/h
Specifications Number Of Drawers
8
Specifications Number Of Filters
24
Specifications Number Of Modules
4
Specifications Number Of Valves
24
Specifications Shipping Weight
5400 lb | 2449.4 kg
Specifications Ultra Web Filter Area
4560 ft² | 423.6 m²
Specifications Warranty
10 years
