Donaldson® Torit® FT Pulse Jet Baghouse Dust Collector with Walk-in Plenum
Donaldson® Torit® FT Pulse Jet Baghouse Dust Collector with Walk-in Plenum
SKU:FTP-aeb9ae
High-volume dust collector with walk-in plenum for easy servicing in all conditions. Ideal for industrial use.
Regular price
$8,999.00
Regular price
Sale price
$8,999.00
Unit price
per
Initiate Order
Donaldson® Torit® FT Pulse Jet Baghouse Dust Collector with Walk-in Plenum
$8,999.00
Quantity: 1
Claim Your Seller Account
Donaldson® Torit® FT Pulse Jet Baghouse Dust Collector with Walk-in Plenum
$8,999.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Donaldson® Torit® FT Pulse Jet Baghouse Dust Collector with Walk-in Plenum is designed for high-volume dust collection applications, offering easy and dependable operation. Featuring all-welded construction for durability and air/water integrity, this collector comes with an optional walk-in plenum for servicing in adverse weather conditions. With a cleaning system that minimizes moisture and particulate issues, this collector is efficient and low-maintenance. The integral fan option reduces space requirements, making it ideal for industrial settings.
Product Specifications
Additional Information
Unique cleaning system minimizes moisture and particulate issues in pulse valvesCollectors with up to 225 bag filters require only one dirty air inlet, one clean air outlet, and one hopper, resulting in reduced ducting and hopper outlet costs

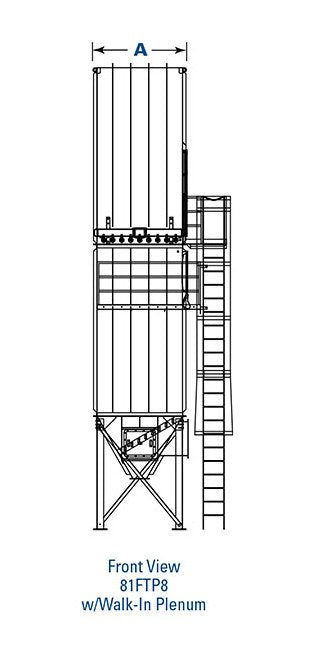

Dimensions Dimension A
82 in | 2082.8 mm

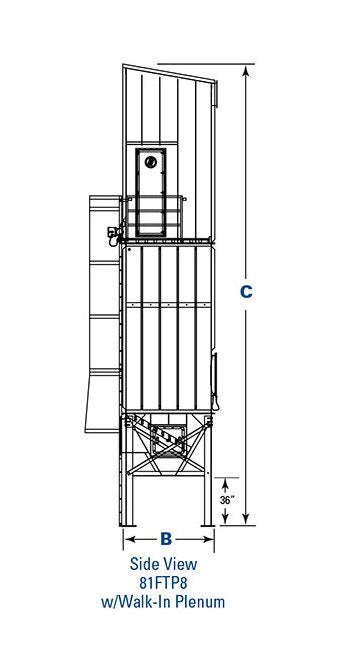

Dimensions Dimension B
82 in | 2082.8 mm
Dimensions Dimension C
304.1 in | 7724.1 mm
Specifications Cloth Area
1080 ft² | 100.3 m²
Specifications Length Of Bag Filters
8 ft | 2.4 m
Specifications Model
With Walk-in Plenum
Specifications Nominal Airflow
4320 to 10800 ft³/min | 7338 to 18345 m³/h
Specifications Shipping Weight
6750 lb | 3061.7 kg
