Donaldson® Torit® MBW 1730 sqft Baghouse Dust Collector
Donaldson® Torit® MBW 1730 sqft Baghouse Dust Collector
SKU:MOD-735f9e
Reliable Donaldson® Torit® Modular Baghouse Dust Collector with Dura-Life™ filters and Ultra-Web® SB Pleated Bags for efficient and clean air filtration.
Regular price
$15,999.99
Regular price
Sale price
$15,999.99
Unit price
per
Initiate Order
Donaldson® Torit® MBW 1730 sqft Baghouse Dust Collector
$15,999.99
Quantity: 1
Claim Your Seller Account
Donaldson® Torit® MBW 1730 sqft Baghouse Dust Collector
$15,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Donaldson® Torit® MBW Modular Baghouse Dust Collector offers reliable, efficient, and continuous-duty operation, featuring Dura-Life™ bag filters for extended bag life and reduced emissions. With a Plated Bag Media Area of 3823 ft², 108 bags, 12 valves, and a 10-year warranty, this collector ensures top-notch performance. The inclusion of Ultra-Web® SB Pleated Bags enhances filtration efficiency, reduces emissions, and simplifies maintenance. Ideal for institutional settings requiring high-performance dust collection solutions.
Product Specifications
Additional Information
The MB is now also available with Ultra-Web® Spunbond Pleated Bags. This option provides pleated filters with our Ultra-Web® nanofiber web-like net to capture dust on the surface of the filter. These filters reduce emissions, provide longer filter life and allow the collector to be downsized to reduce the overall purchase price. The MB provides reliable service with easy maintenance. Computer designed inlets and deflector plates, coupled with maximized bag spacing, result in optimal airflow with minimal abrasion. Advanced valves, providing 50% more cleaning air, result in a more efficient operation. Over the life of the collector, no other baghouse can provide this much value.

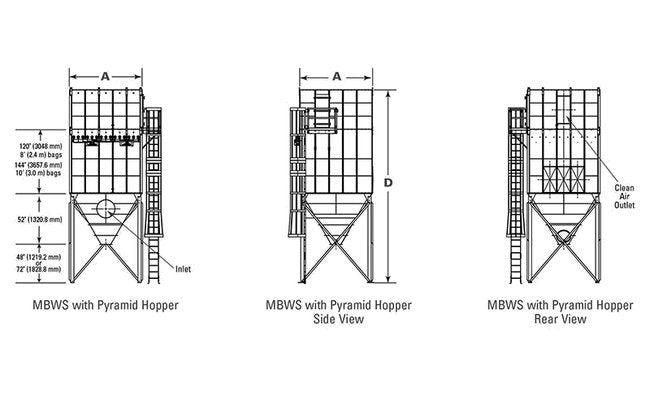

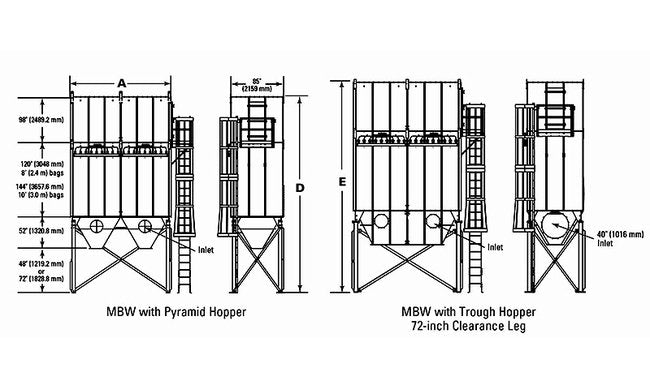

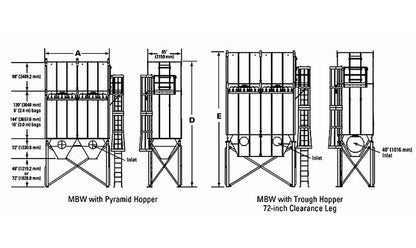

Dimensions Dimension A Mbtmbw
111.0 in | 2819.4 mm
Dimensions Dimension B Mbt 48 In
314.8 in | 7995.9 mm
Dimensions Dimension B Mbt 72 In
338.8 in | 8605.5 mm
Dimensions Dimension D Mbt 48 In
364.7 in | 9263.4 mm
Dimensions Dimension D Mbt 72 In
388.7 in | 9873 mm
Features
High body inlet models allow higher air-to-media ratios on lighter dustsSquare models help minimize ducting and accessory costsDura-Life™ "Twice the Life" Bag FiltersUltra-Web® SB Pleated Bag OptionClean air bag access for easier bag serviceWelded design increases durabilityIntegral fan option reduces space requirementsTool-free installation of bag filters and cages
Specifications Bag Cloth Area
1730 ft² | 160.7 m²
Specifications Number Of Bags
108
Specifications Number Of Valves
12
Specifications Plated Bag Media Area 20 Inch In Uw
1274 ft² | 118.4 m²
Specifications Plated Bag Media Area 40 Inch In Uw
2549 ft² | 236.8 m²
Specifications Plated Bag Media Area 60 Inch In Uw
3823 ft² | 355.2 m²
Specifications Plated Bag Media Area 80 Inch In Uw
5108 ft² | 474.6 m²
Specifications Shipping Weight
9400 lb | 4263.8 kg
Specifications Warranty
10 years
