Donaldson® Torit® MBW Modular Baghouse Dust Collector - 1299 ft² Bag Cloth Area
Donaldson® Torit® MBW Modular Baghouse Dust Collector - 1299 ft² Bag Cloth Area
SKU:MOD-d6f248
Reliable dust collector with Dura-Life™ bag filters for efficient, low-emission operation. Perfect for institutions.
Regular price
$14,299.99
Regular price
Sale price
$14,299.99
Unit price
per
Initiate Order
Donaldson® Torit® MBW Modular Baghouse Dust Collector - 1299 ft² Bag Cloth Area
$14,299.99
Quantity: 1
Claim Your Seller Account
Donaldson® Torit® MBW Modular Baghouse Dust Collector - 1299 ft² Bag Cloth Area
$14,299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Donaldson® Torit® MBW Modular Baghouse Dust Collector is a reliable solution for continuous-duty, pulse-jet dust collection. Featuring Dura-Life™ bag filters for longer life and reduced emissions, this unit offers superior performance. With options like Ultra-Web® Spunbond Pleated Bags and advanced cleaning air valves, it ensures efficient operation and optimal airflow. The MBW is designed for easy maintenance, providing value over its lifespan. Ideal for institutional and government buyers seeking high-performance dust collection systems.
Product Specifications
Additional Information
The MB is now also available with Ultra-Web® Spunbond Pleated Bags. This option provides pleated filters with our Ultra-Web® nanofiber web-like net to capture dust on the surface of the filter. These filters reduce emissions, provide longer filter life and allow the collector to be downsized to reduce the overall purchase price. The MB provides reliable service with easy maintenance. Computer designed inlets and deflector plates, coupled with maximized bag spacing, result in optimal airflow with minimal abrasion. Advanced valves, providing 50% more cleaning air, result in a more efficient operation. Over the life of the collector, no other baghouse can provide this much value.

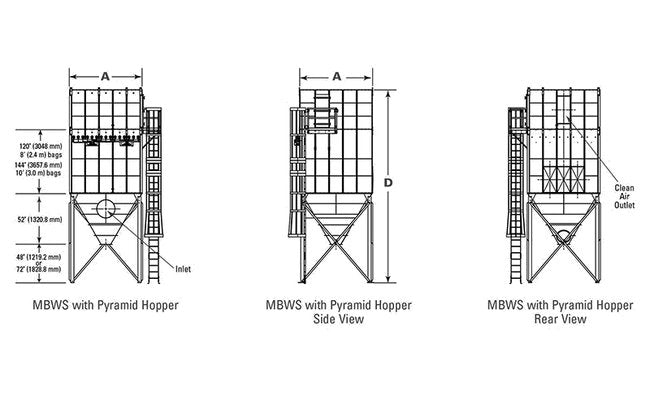

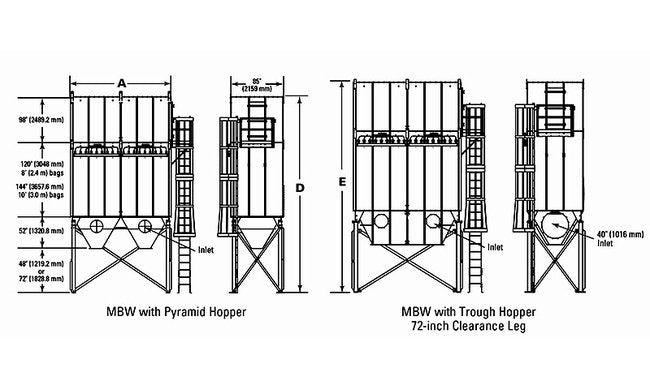

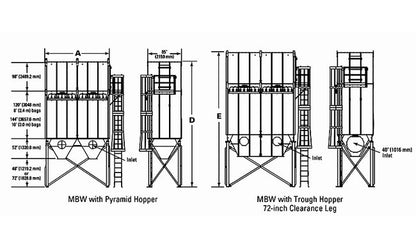

Dimensions Dimension A Mbtmbw
111.0 in | 2819.4 mm
Dimensions Dimension B Mbt 48 In
314.8 in | 7995.9 mm
Dimensions Dimension B Mbt 72 In
338.8 in | 8605.5 mm
Dimensions Dimension D Mbt 48 In
364.7 in | 9263.4 mm
Dimensions Dimension D Mbt 72 In
388.7 in | 9873 mm
Features
High body inlet models allow higher air-to-media ratios on lighter dustsSquare models help minimize ducting and accessory costsDura-Life™ "Twice the Life" Bag FiltersUltra-Web® SB Pleated Bag OptionClean air bag access for easier bag serviceWelded design increases durabilityIntegral fan option reduces space requirementsTool-free installation of bag filters and cages
Specifications Bag Cloth Area
1299 ft² | 120.7 m²
Specifications Number Of Bags
81
Specifications Number Of Valves
9
Specifications Plated Bag Media Area 20 Inch In Uw
956 ft² | 88.8 m²
Specifications Plated Bag Media Area 40 Inch In Uw
1912 ft² | 177.6 m²
Specifications Plated Bag Media Area 60 Inch In Uw
2867 ft² | 266.4 m²
Specifications Plated Bag Media Area 80 Inch In Uw
3831 ft² | 355.9 m²
Specifications Shipping Weight
9172 lb | 4160.3 kg
Specifications Warranty
10 years
