Donaldson® Torit® Model MBW Baghouse Dust Collector - 691 ft² Bag Cloth Area
Donaldson® Torit® Model MBW Baghouse Dust Collector - 691 ft² Bag Cloth Area
SKU:MOD-e32bcc
Reliable, efficient Model MBW Dust Collector with Dura-Life™ bag filters. Optimal airflow, reduced emissions, and high durability.
Regular price
$12,999.99
Regular price
Sale price
$12,999.99
Unit price
per
Initiate Order
Donaldson® Torit® Model MBW Baghouse Dust Collector - 691 ft² Bag Cloth Area
$12,999.99
Quantity: 1
Claim Your Seller Account
Donaldson® Torit® Model MBW Baghouse Dust Collector - 691 ft² Bag Cloth Area
$12,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Donaldson® Torit® Model MBW Modular Baghouse Dust Collector is the epitome of reliability and efficiency for continuous-duty industrial operations. This unit boasts a breakthrough technology with Dura-Life™ bag filters that offer extended bag life and reduced emissions. Featuring high body inlet models for increased air-to-media ratios, reduced ducting costs, and Dura-Life™ bag filters for enhanced durability, this dust collector ensures optimal airflow and minimal abrasion. With an array of efficient features, such as the Ultra-Web® Spunbond Pleated Bags option for reduced emissions and longer filter life, the MBW provides easy maintenance and maximum value over its lifespan.
Product Specifications
Additional Information
The MB is now also available with Ultra-Web® Spunbond Pleated Bags. This option provides pleated filters with our Ultra-Web® nanofiber web-like net to capture dust on the surface of the filter. These filters reduce emissions, provide longer filter life and allow the collector to be downsized to reduce the overall purchase price. The MB provides reliable service with easy maintenance. Computer designed inlets and deflector plates, coupled with maximized bag spacing, result in optimal airflow with minimal abrasion. Advanced valves, providing 50% more cleaning air, result in a more efficient operation. Over the life of the collector, no other baghouse can provide this much value.

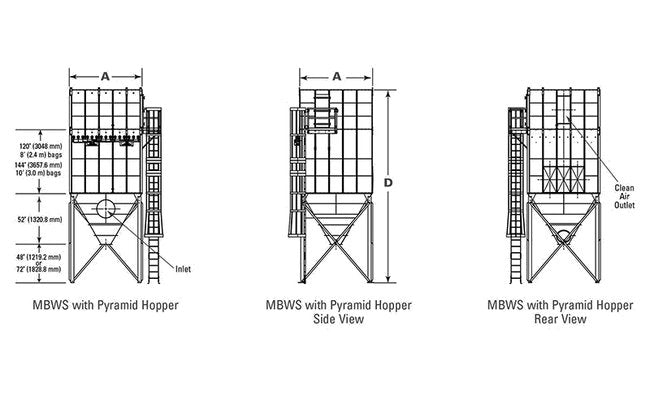

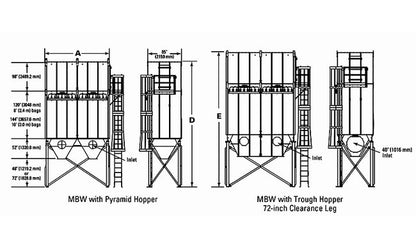

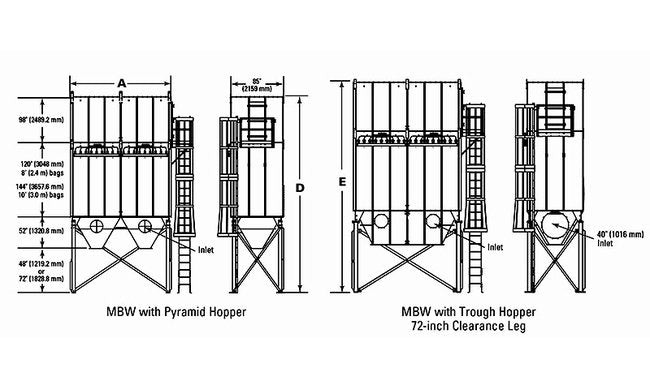

Dimensions Dimension A Mbtmbw
85.0 in | 2159.0 mm
Dimensions Dimension B Mbt 48 In
268.1 in | 6809.7 mm
Dimensions Dimension B Mbt 72 In
292.1 in | 7419.3 mm
Dimensions Dimension D Mbt 48 In
294.1 in | 7470.1 mm
Dimensions Dimension D Mbt 72 In
318.1 in | 8079.7 mm
Features
High body inlet models allow higher air-to-media ratios on lighter dustsSquare models help minimize ducting and accessory costsDura-Life™ "Twice the Life" Bag FiltersUltra-Web® SB Pleated Bag OptionClean air bag access for easier bag serviceWelded design increases durabilityIntegral fan option reduces space requirementsTool-free installation of bag filters and cages
Specifications Bag Cloth Area
691 ft² | 64.2 m²
Specifications Number Of Bags
54
Specifications Number Of Valves
6
Specifications Plated Bag Media Area 20 Inch In Uw
637 ft² | 59.2 m²
Specifications Plated Bag Media Area 40 Inch In Uw
1274 ft² | 118.4 m²
Specifications Plated Bag Media Area 60 Inch In Uw
1912 ft² | 177.6 m²
Specifications Plated Bag Media Area 80 Inch In Uw
2554 ft² | 237.3 m²
Specifications Shipping Weight
6870 lb | 3116.2 kg
Specifications Warranty
10 years
