Donaldson® Torit® Modular Baghouse - High-Efficiency Dust Collector
Donaldson® Torit® Modular Baghouse - High-Efficiency Dust Collector
SKU:MOD-c3be51
Reliable and efficient Baghouse Dust Collector with Dura-Life™ bag filters for extended longevity and reduced emissions.
Regular price
$3,499.99
Regular price
Sale price
$3,499.99
Unit price
per
Initiate Order
Donaldson® Torit® Modular Baghouse - High-Efficiency Dust Collector
$3,499.99
Quantity: 1
Claim Your Seller Account
Donaldson® Torit® Modular Baghouse - High-Efficiency Dust Collector
$3,499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Donaldson® Torit® Modular Baghouse (MB) is a cutting-edge industrial dust collector designed for reliable, efficient, and continuous-duty operation. Featuring the revolutionary Dura-Life™ bag filters, this dust collector offers an extended bag life and reduced emissions, ensuring a cleaner and healthier work environment. With advanced features like high body inlet models for higher air-to-media ratios, Ultra-Web® SB Pleated Bag Option for superior filtration, and tool-free installation of bag filters, the Donaldson® Torit® Modular Baghouse is the ideal solution for industrial facilities looking to enhance air quality and comply with stringent environmental regulations.
Product Specifications
Additional Information
The MB is now also available with Ultra-Web® Spunbond Pleated Bags. This option provides pleated filters with our Ultra-Web® nanofiber web-like net to capture dust on the surface of the filter. These filters reduce emissions, provide longer filter life and allow the collector to be downsized to reduce the overall purchase price. The MB provides reliable service with easy maintenance. Computer designed inlets and deflector plates, coupled with maximized bag spacing, result in optimal airflow with minimal abrasion. Advanced valves, providing 50% more cleaning air, result in a more efficient operation. Over the life of the collector, no other baghouse can provide this much value.

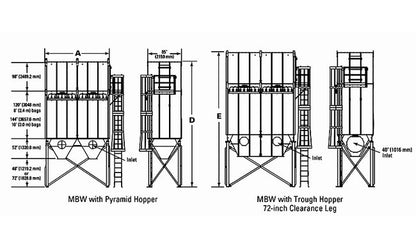

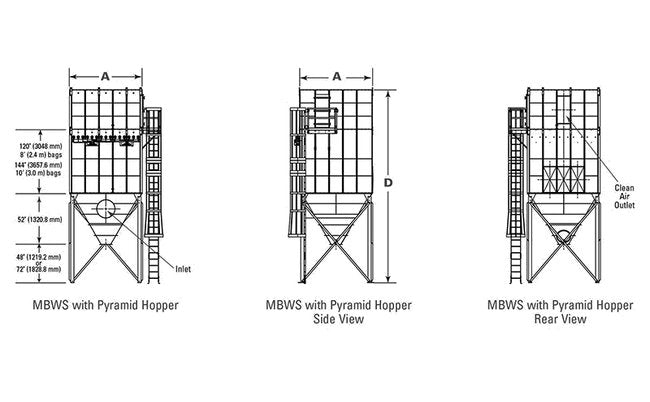

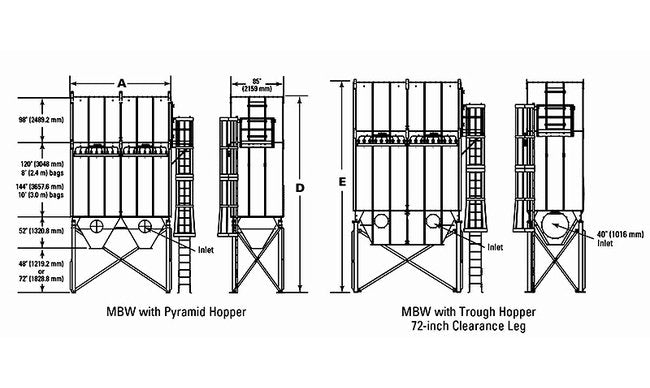

Dimensions Dimension A Mbtmbw
137.0 in | 3479.8 mm
Dimensions Dimension D Mbt 48 In
339.1 in | 8613.1 mm
Dimensions Dimension D Mbt 72 In
363.1 in | 9222.7 mm
Features
High body inlet models allow higher air-to-media ratios on lighter dustsSquare models help minimize ducting and accessory costsDura-Life™ "Twice the Life" Bag FiltersUltra-Web® SB Pleated Bag OptionClean air bag access for easier bag serviceWelded design increases durabilityIntegral fan option reduces space requirementsTool-free installation of bag filters and cages
Specifications Bag Cloth Area
2884 ft² | 267.9 m²
Specifications Number Of Bags
225
Specifications Number Of Valves
15
Specifications Plated Bag Media Area 20 Inch In Uw
2655 ft² | 246.7 m²
Specifications Plated Bag Media Area 40 Inch In Uw
5310 ft² | 493.3 m²
Specifications Plated Bag Media Area 60 Inch In Uw
7965 ft² | 740.0 m²
Specifications Plated Bag Media Area 80 Inch In Uw
10643 ft² | 988.7 m²
Specifications Shipping Weight
14460 lb | 6558.9 kg
Specifications Warranty
10 years
