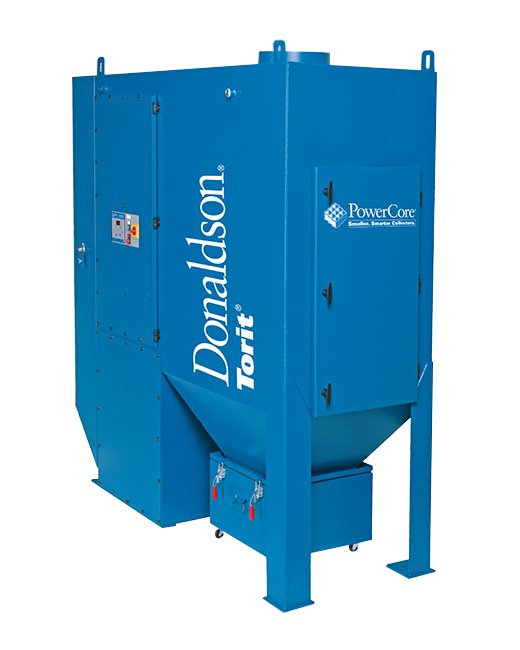

Donaldson® Torit® PowerCore® TG Series 2 Valve Dust Collector
Donaldson® Torit® PowerCore® TG Series 2 Valve Dust Collector
SKU:TOR-5fd9f7
Transform air quality with Donaldson® Torit® PowerCore® TG Dust Collector - Compact, Powerful, Efficient!
Regular price
$8,999.99
Regular price
Sale price
$8,999.99
Unit price
per
Initiate Order
Donaldson® Torit® PowerCore® TG Series 2 Valve Dust Collector
$8,999.99
Quantity: 1
Claim Your Seller Account
Donaldson® Torit® PowerCore® TG Series 2 Valve Dust Collector
$8,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Enhance air quality with the Donaldson® Torit® PowerCore® TG Series 2 Valve Dust Collector - a compact, high-performance solution for welding, laser cutting, and thermal spray applications. Featuring advanced PowerCore® filtration technology, this collector offers up to 65% smaller footprint than traditional units. With robust construction meeting IBC 2006 standards, quiet operation, and efficient controls, it ensures cleaner air in industrial settings while optimizing space and energy consumption.
Product Specifications
Additional Information
Torit® PowerCore® TG collectors' strong and sleek all-welded housing is the ideal fit as a stand-alone on the plant floor or integrated into an OEM design. Factor in the energy saver package, quiet motor and smart controls specifically designed for metalworking, and the choice is clear. Torit® PowerCore® TG is the best combination of footprint, appearance and performance.
Applications
While PowerCore® filter packs are new to the metalworking market, they have a proven track record in other related filtration industries. Donaldson® offers them in many shapes and sizes for high performance vehicles, construction, agricultural and medium/heavy duty transportation applications as well as gas turbine air intakes that protect multi-million dollar turbine engines for power plants across the globe. Donaldson® Torit® introduced the PowerCore® CPC and CPV collectors for the baghouse markets in 2008.

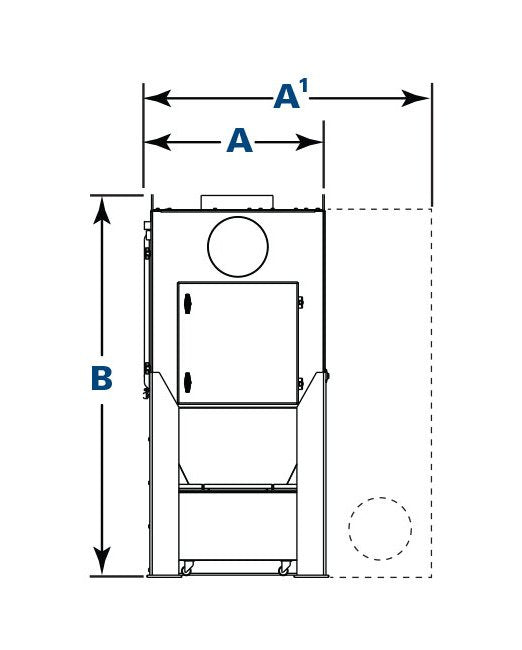

Dimensions Dimension A
30.8 in
Dimensions Dimension A1
47.1 in
Dimensions Dimension B
66.6 in
Dimensions Dimension C
83.2 in
Operating Conditions Alternating Current Ac Control Voltage
120 V
Operating Conditions Compressed Air Required
90 to 100 psi | 6.2 to 6.9 bar
Operating Conditions Direct Current Dc Control Voltage
24 V
Operating Conditions Frequency
60 Hz
Operating Conditions Horsepower
5 hp
Operating Conditions Housing Construction Material Thickness
3/16 to 12 gauge steel compliant with Per International Building Code (IBC) 2006
Operating Conditions Operating Temperature
150 ºF | 66 ºC
Operating Conditions Reinforced Housing Rating
0.15 bar
Operating Conditions Seismic Spectral Acceleration S1 Per Intern
0.6 g
Operating Conditions Seismic Spectral Acceleration Ss Per Intern
1.5 g
Operating Conditions Sound Level
71 to 74 dBA
Operating Conditions Standard Housing Rating
12 in | 304.8 mm
Operating Conditions Wind Load Rating
90 mph | 145 km/h
Specifications Low Inlet Box Shipping Weight
1700 lb

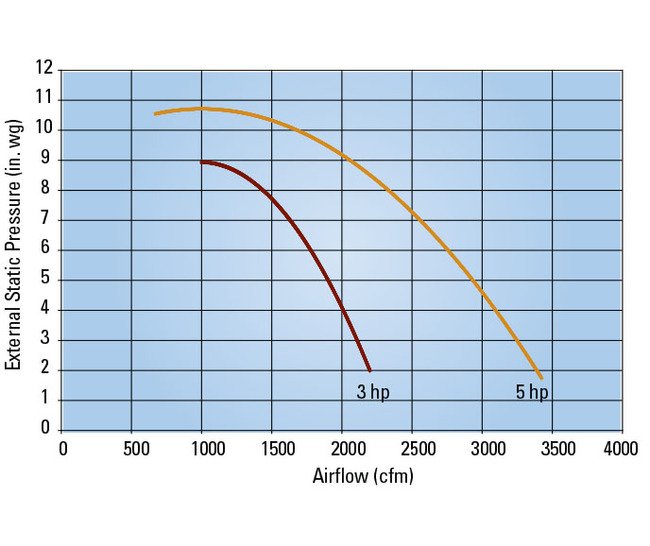

Specifications Nominal Airflow
960 to 3200 ft³/min
Specifications Number Of Filter Packs
2
Specifications Number Of Valves
2
Specifications Peak Pulse Noise
92.7 dBA
Specifications Powercore Filter Area
294 ft²
Specifications R Housing Shipping Weight
1150 lb
Specifications Standard Housing Shipping Weight
1100 lb
