Donaldson® Torit® RF Baghouse Dust Collector - 4766 sq ft
Donaldson® Torit® RF Baghouse Dust Collector - 4766 sq ft
SKU:RFB-4b16fe
Powerful Donaldson® Torit® RF Baghouse Dust Collector - Heavy-duty, energy-efficient, superior performance.
Regular price
$18,999.00
Regular price
Sale price
$18,999.00
Unit price
per
Initiate Order
Donaldson® Torit® RF Baghouse Dust Collector - 4766 sq ft
$18,999.00
Quantity: 1
Claim Your Seller Account
Donaldson® Torit® RF Baghouse Dust Collector - 4766 sq ft
$18,999.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Donaldson® Torit® RF Baghouse Dust Collector sets the standard for heavy-duty dust collection with its innovative design. Combining a cyclone precleaner and baghouse in one unit, it offers a powerful cleaning system that eliminates the need for compressed air. Equipped with Dura-Life™ bag filters and Ultra-Web® SB pleated bag option, this collector delivers exceptional performance while reducing energy consumption. With features like Even-Air™ Flow Straightener, oval-shaped bags, and a conical hopper, it ensures efficient operation and easy maintenance. Ideal for institutional and industrial use, the RF Baghouse Collector surpasses competitors in performance and energy efficiency.
Product Specifications

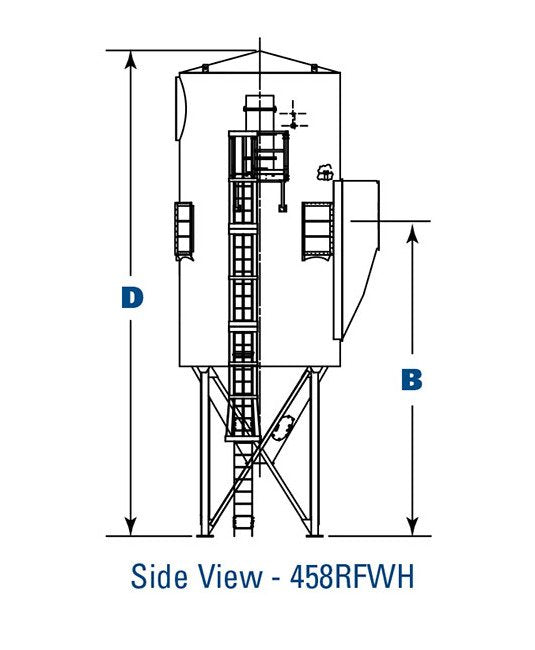

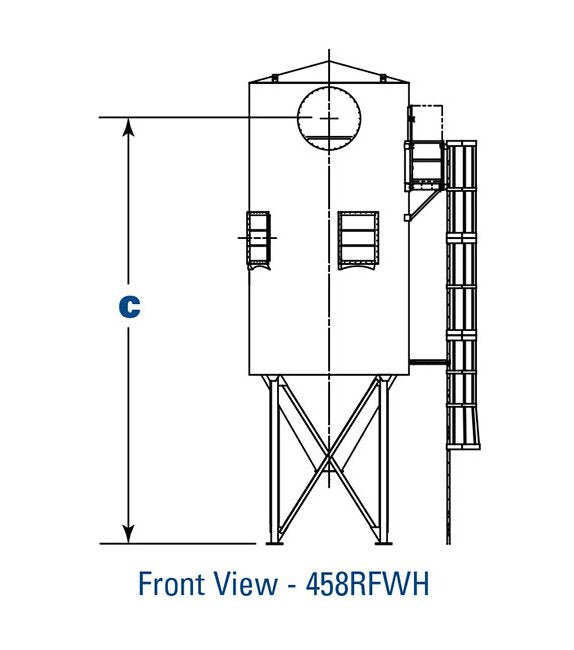

Dimensions Dimension A
157.6 in | 4003.0 mm
Dimensions Dimension B
269.4 in | 6842.8 mm
Dimensions Dimension C
374.6 in | 9514.8 mm
Dimensions Dimension D
431.4 in | 10957.6 mm
Features
High-Body inlet option for abrasive dustEven-Air™ Flow Straightener reduces wear on bag filtersAward winning Dura-Life™ Twice the Life" bag filtersOval shaped bags provide better snap for better bag cleaningUltra-Web® SB Pleated Bag OptionClean-air bag access for easier bag serviceSingle inlet, outlet and hopper reduces duct and hopper outlet costs60º conical hopper reduces dust build-upRequires less energy than comparable sized unitsRF cleaning system requires no compressed air
Note
All units 570 and larger are of panelized construction and dimension B" is from center of the inlet to bottom of the 36-in (914.4 mm) hopper outlet.
Specifications Air Pump
7.5 hp
Specifications Bag Cloth Area
4766 ft² | 443 m²
Specifications Number Of Bags
458
Specifications Plated Bag Media Area 30 Inch In Uw
6091 ft² | 566 m²
Specifications Plated Bag Media Area 40 Inch In Uw
7969 ft² | 740 m²
Specifications Plated Bag Media Area 60 Inch In Uw
12182 ft² | 1132 m²
Specifications Plated Bag Media Area 80 Inch In Uw
15984 ft² | 1485 m²
Specifications Shipping Weight
25400 lb | 11521.2 kg
Specifications Type
High Body Inlet
Specifications Warranty
10 years
