Donaldson® Torit® RF Baghouse Dust Collector - High Efficiency Industrial Dust Collection
Donaldson® Torit® RF Baghouse Dust Collector - High Efficiency Industrial Dust Collection
SKU:RFB-c887e3
High-efficiency Donaldson® Torit® RF Baghouse Dust Collector - Energy-efficient, powerful cleaning system for heavy dust loads. Ideal for industrial, government, and institutional use.
Regular price
$26,999.99
Regular price
Sale price
$26,999.99
Unit price
per
Initiate Order
Donaldson® Torit® RF Baghouse Dust Collector - High Efficiency Industrial Dust Collection
$26,999.99
Quantity: 1
Claim Your Seller Account
Donaldson® Torit® RF Baghouse Dust Collector - High Efficiency Industrial Dust Collection
$26,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

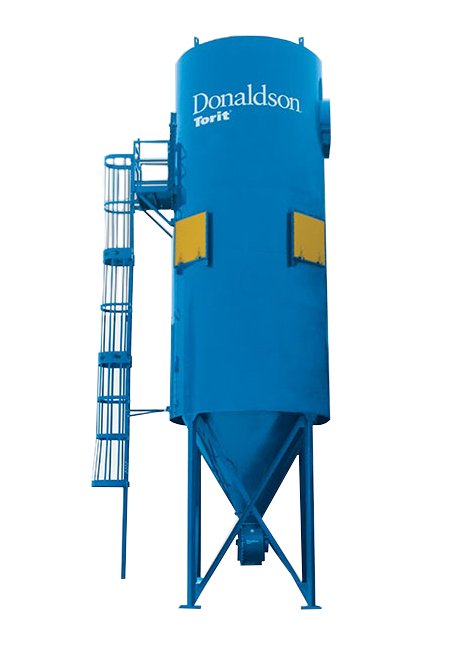

The Donaldson® Torit® RF Baghouse Dust Collector sets the gold standard for handling heavy dust loads and large air volumes. This high-efficiency unit combines a cyclone precleaner and a baghouse, featuring an energy-efficient cleaning system that eliminates the need for compressed air. With the revolutionary Dura-Life™ bag filters and Ultra-Web® SB pleated bag options, this collector offers exceptional performance while reducing energy consumption. Its innovative design includes a High-Body inlet for abrasive dust, Even-Air™ Flow Straightener for improved filter lifespan, and clean-air bag access for easy maintenance. Meeting stringent industry standards, the RF Baghouse Collector ensures superior dust control and durability, making it ideal for industrial, government, and institutional applications.
Product Specifications

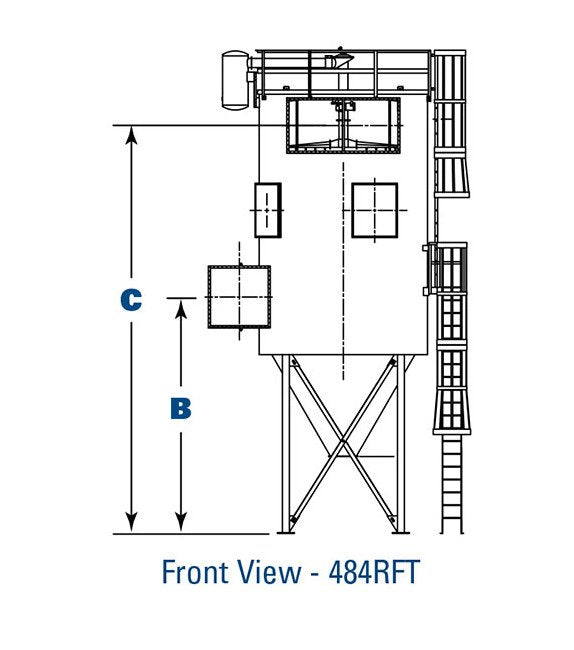

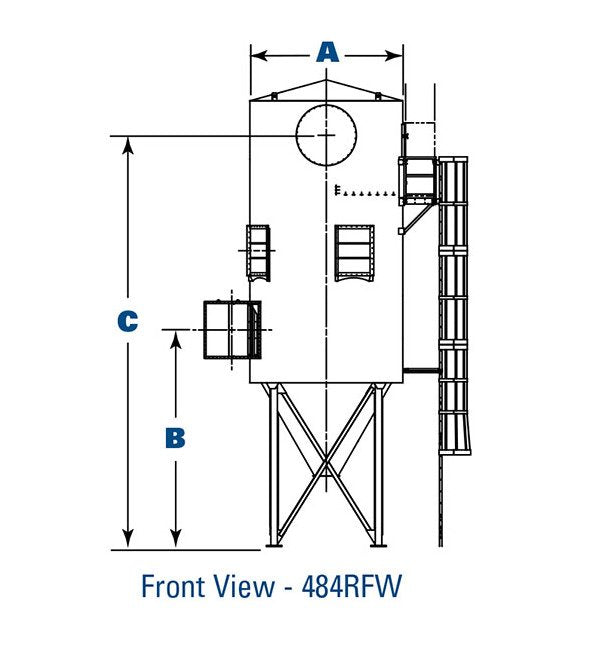

Dimensions Dimension A
139.6 in | 3545.8 mm
Dimensions Dimension B
253.8 in | 6446.5 mm
Dimensions Dimension C
358.8 in | 9113.5 mm

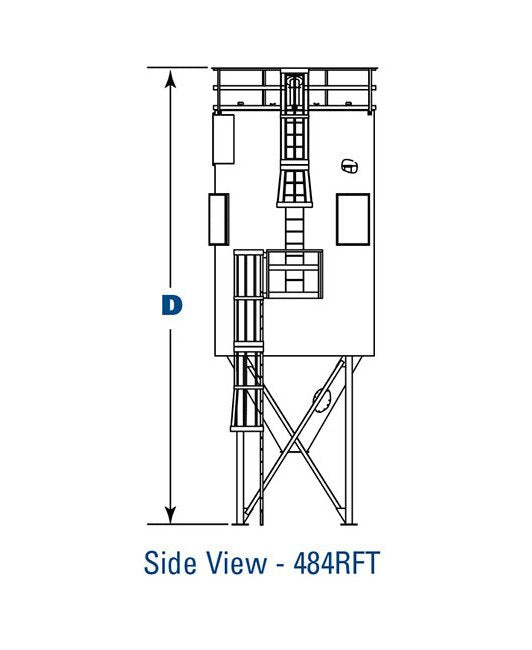

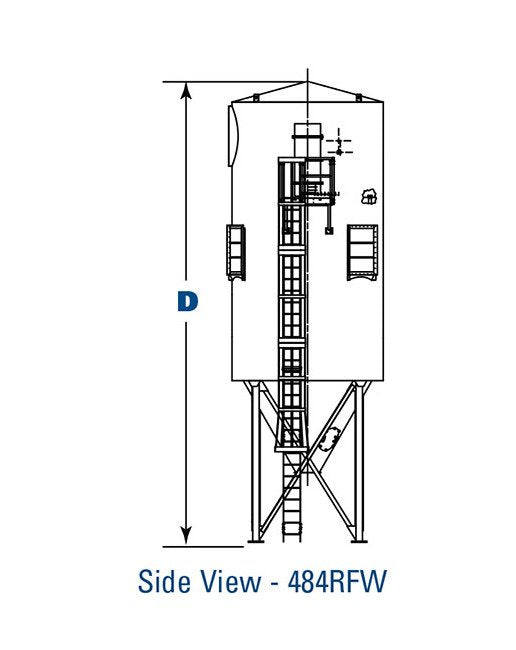

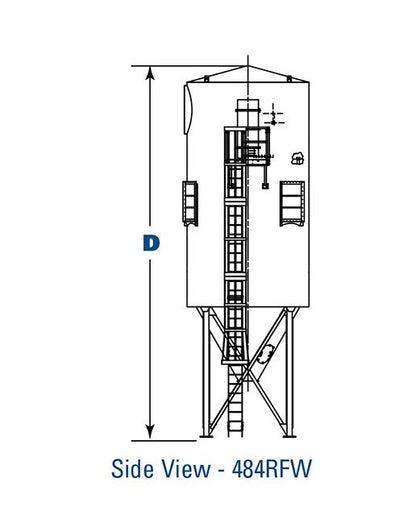

Dimensions Dimension D
413.1 in | 10492.7 mm
Features
High-Body inlet option for abrasive dustEven-Air™ Flow Straightener reduces wear on bag filtersAward winning Dura-Life™ Twice the Life" bag filtersOval shaped bags provide better snap for better bag cleaningUltra-Web® SB Pleated Bag OptionClean-air bag access for easier bag serviceSingle inlet, outlet and hopper reduces duct and hopper outlet costs60º conical hopper reduces dust build-upRequires less energy than comparable sized unitsRF cleaning system requires no compressed air
Note
All units 570 and larger are of panelized construction and dimension B" is from center of the inlet to bottom of the 36-in (914.4 mm) hopper outlet.
Specifications Air Pump
7.5 hp
Specifications Bag Cloth Area
3705 ft² | 344 m²
Specifications Number Of Bags
356
Specifications Plated Bag Media Area 30 Inch In Uw
4735 ft² | 440 m²
Specifications Plated Bag Media Area 40 Inch In Uw
6194 ft² | 575 m²
Specifications Plated Bag Media Area 60 Inch In Uw
9469 ft² | 880 m²
Specifications Plated Bag Media Area 80 Inch In Uw
12424 ft² | 1154 m²
Specifications Shipping Weight
19600 lb | 8890.4 kg
Specifications Type
High Body Inlet
Specifications Warranty
10 years
