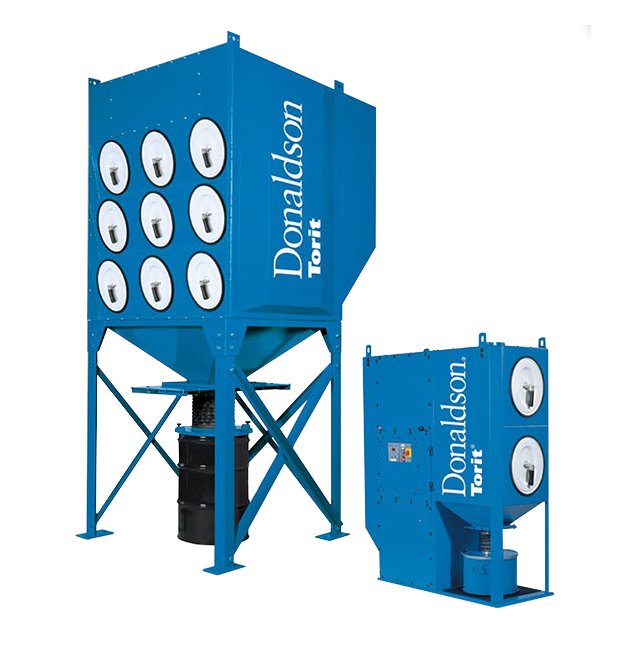

Donaldson Downflo® Oval 36 Dust Collector, 125-Inch Dimension A
Donaldson Downflo® Oval 36 Dust Collector, 125-Inch Dimension A
SKU:DOW-3a9c76
Enhance air quality and save costs with the Donaldson Downflo® Oval 36 Dust Collector featuring Ultra-Web® nanofiber technology.
Regular price
$12,999.99
Regular price
Sale price
$12,999.99
Unit price
per
Initiate Order
Donaldson Downflo® Oval 36 Dust Collector, 125-Inch Dimension A
$12,999.99
Quantity: 1
Claim Your Seller Account
Donaldson Downflo® Oval 36 Dust Collector, 125-Inch Dimension A
$12,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Donaldson Downflo® Oval 36 Dust Collector with a Dimension A of 125 inches boasts exceptional filtration capacity, powered by Ultra-Web® nanofiber technology. Offering up to 25% more filtration than standard cartridge collectors, it ensures cleaner air, extended filter life, and substantial cost savings. With a robust construction, advanced filtration area, and customized sizing options, this unit delivers outstanding performance, energy efficiency, and compact design, making it an ideal choice for industrial and institutional applications.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Additional Information
The DFO advantage is found in the collector's proprietary design and components. The combination of a new cabinet design that greatly lowers cabinet velocities, proprietary Extra-Life™ cleaning technology, and proven Ultra-Web® nanofiber filters allows more airflow through the collector without increasing the size of the footprint or damaging the filters.A smaller collector helps lower the initial purchase price, reduces filter replacement costs and opens up valuable manufacturing floor space.

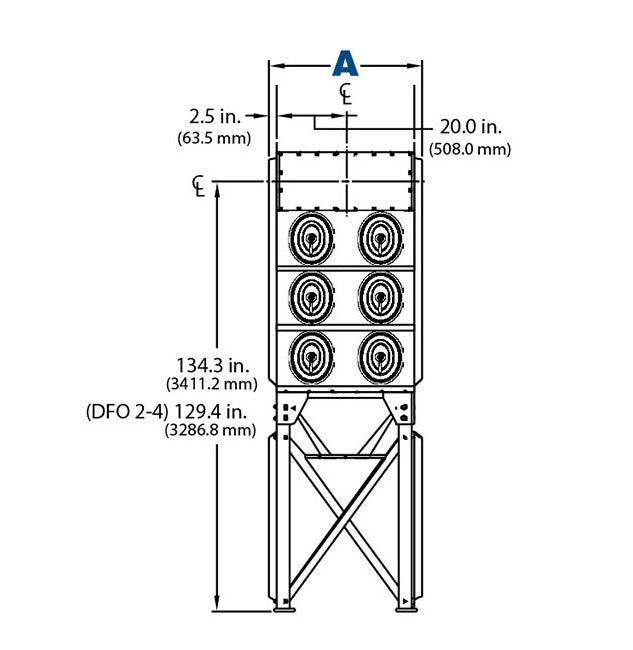

Dimensions Dimension A
125.0 in | 3175.0 mm
Dimensions Dimension B
146.5 in | 3721.1 mm
Dimensions Dimension C
85.3 in | 2166.6 mm
Note
Provided through Donaldson® Torit® fan program.
Operating Conditions Compressed Air Required
90 to 100 psi | 6.2 to 6.9 bar
Operating Conditions Housing Construction Collector Thickness
10 gauge
Operating Conditions Housing Construction Tubesheet Thickness
7 gauge
Operating Conditions Housing Rating
-20 inH2O | -508 mmH2O
Operating Conditions Seismic Rating Zone
4
Operating Conditions Wind Load Rating
100 mph | 161 km/h
Operations
23 standard model sizesCustomized sizes availableMany options and accessoriesExceptionally compact designSignificant energy savings
Specifications Approximate Shipping Weight
6100 lb | 2766.9 kg
Specifications Nominal Airflow
3420 to 28730 ft³/min | 5809.4 to 48802.2 m³/h
Specifications Number Of Cartridges
36
Specifications Number Of Filters
36
Specifications Number Of Filter Rows
3
Specifications Number Of Valves
18
Specifications Ultra Web Filter Area
6840 ft² | 635.4 m²
