Donaldson Downflo® Oval 80 Dust Collector - 205-inch Dimension A
Donaldson Downflo® Oval 80 Dust Collector - 205-inch Dimension A
SKU:DOW-a1ddd8
Experience superior filtration and cost efficiency with the Donaldson Downflo® Oval 80 Dust Collector - ideal for high-demand industrial applications.
Regular price
$22,999.00
Regular price
Sale price
$22,999.00
Unit price
per
Initiate Order
Donaldson Downflo® Oval 80 Dust Collector - 205-inch Dimension A
$22,999.00
Quantity: 1
Claim Your Seller Account
Donaldson Downflo® Oval 80 Dust Collector - 205-inch Dimension A
$22,999.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

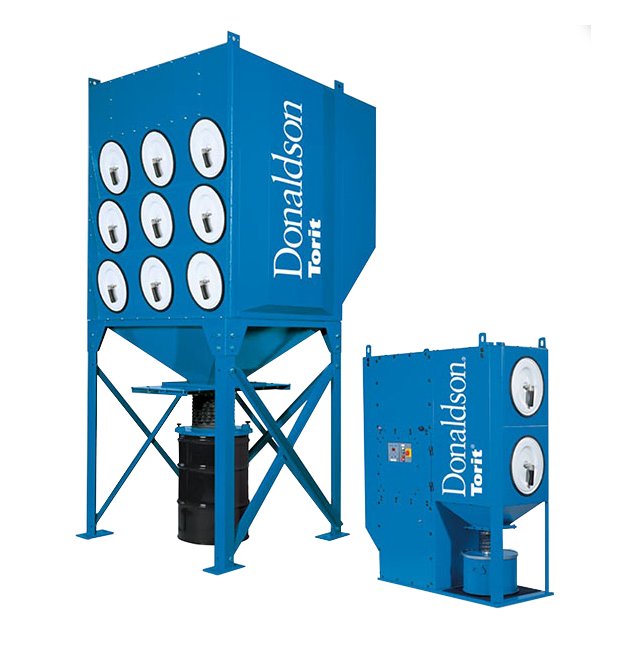

The Donaldson Downflo® Oval 80 Dust Collector sets a new standard in high-performance filtration, exceeding competitor models with up to 25% more filtration capacity. Utilizing the advanced Ultra-Web® nanofiber technology, this collector ensures cleaner air, extended filter life, and significant cost savings. With precise construction details and innovative design elements, it offers exceptional airflow efficiency while maintaining a compact footprint, thereby enhancing manufacturing space utilization and reducing operational costs.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Additional Information
The DFO advantage is found in the collector's proprietary design and components. The combination of a new cabinet design that greatly lowers cabinet velocities, proprietary Extra-Life™ cleaning technology, and proven Ultra-Web® nanofiber filters allows more airflow through the collector without increasing the size of the footprint or damaging the filters.A smaller collector helps lower the initial purchase price, reduces filter replacement costs and opens up valuable manufacturing floor space.

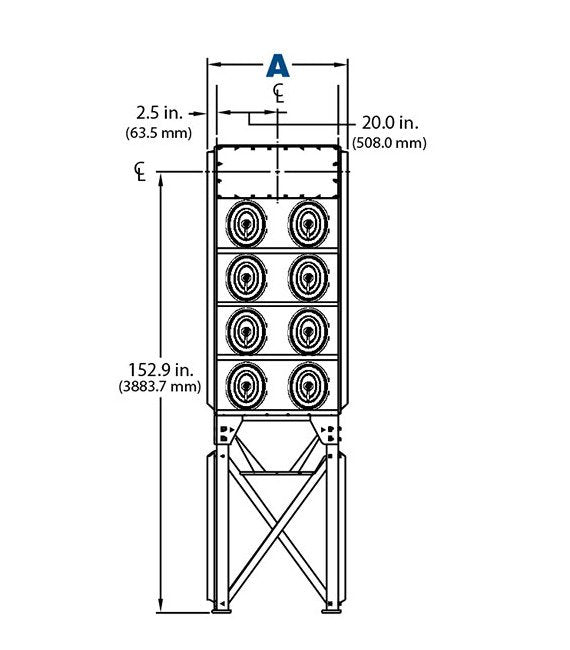

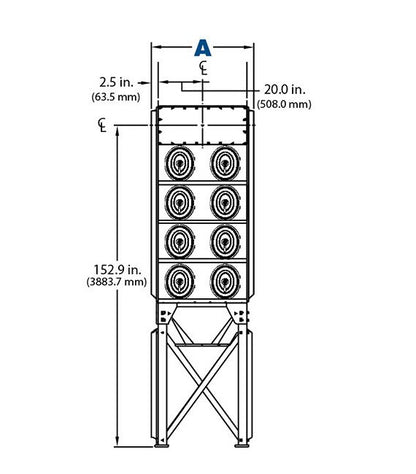

Dimensions Dimension A
205.0 in | 5207.0 mm
Dimensions Dimension B
165.1 in | 4193.5 mm
Dimensions Dimension C
85.3 in | 2166.6 mm
Note
Provided through Donaldson® Torit® fan program.
Operating Conditions Compressed Air Required
90 to 100 psi | 6.2 to 6.9 bar
Operating Conditions Housing Construction Collector Thickness
10 gauge
Operating Conditions Housing Construction Tubesheet Thickness
7 gauge
Operating Conditions Housing Rating
-20 inH2O | -508 mmH2O
Operating Conditions Seismic Rating Zone
4
Operating Conditions Wind Load Rating
100 mph | 161 km/h
Operations
23 standard model sizesCustomized sizes availableMany options and accessoriesExceptionally compact designSignificant energy savings
Specifications Approximate Shipping Weight
11000 lb | 4989.5 kg
Specifications Nominal Airflow
7600 to 63840 ft³/min | 12909.7 to 108441.8 m³/h
Specifications Number Of Cartridges
80
Specifications Number Of Filters
80
Specifications Number Of Filter Rows
4
Specifications Number Of Valves
40
Specifications Ultra Web Filter Area
15200 ft² | 1412.1 m²
