Donaldson Downflo® Oval 96 Filters Dust Collector - 245.0 in Dimension A
Donaldson Downflo® Oval 96 Filters Dust Collector - 245.0 in Dimension A
SKU:DOW-17e66e
Powerful Downflo® Oval 96 Filters Dust Collector - Superior Air Filtration & Cost Savings
Regular price
$12,349.99
Regular price
Sale price
$12,349.99
Unit price
per
Initiate Order
Donaldson Downflo® Oval 96 Filters Dust Collector - 245.0 in Dimension A
$12,349.99
Quantity: 1
Claim Your Seller Account
Donaldson Downflo® Oval 96 Filters Dust Collector - 245.0 in Dimension A
$12,349.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

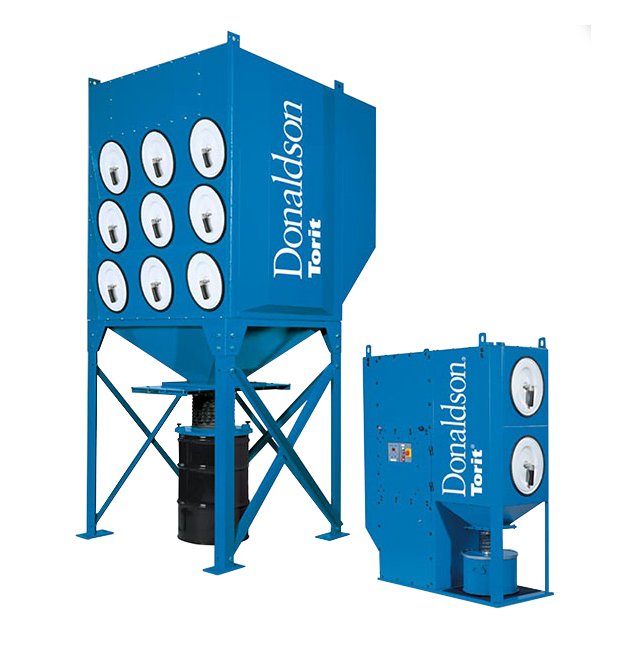

Meet the Downflo® Oval (DFO) 96 Filters Dust Collector with a Dimension A of 245.0 inches, featuring Ultra-Web® nanofiber filtration technology for superior air quality. With 25% more filtration capacity, extended filter life, and cost savings, this collector is a powerhouse for industrial air filtration needs.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Additional Information
The DFO advantage is found in the collector's proprietary design and components. The combination of a new cabinet design that greatly lowers cabinet velocities, proprietary Extra-Life™ cleaning technology, and proven Ultra-Web® nanofiber filters allows more airflow through the collector without increasing the size of the footprint or damaging the filters.A smaller collector helps lower the initial purchase price, reduces filter replacement costs and opens up valuable manufacturing floor space.

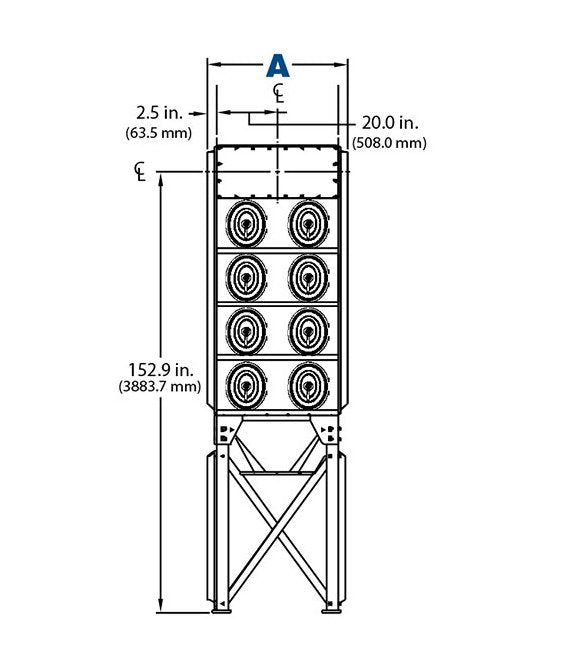

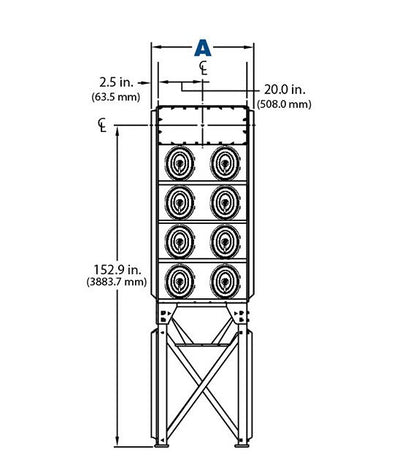

Dimensions Dimension A
245.0 in | 6223.0 mm
Dimensions Dimension B
165.1 in | 4193.5 mm
Dimensions Dimension C
85.3 in | 2166.6 mm
Note
Provided through Donaldson® Torit® fan program.
Operating Conditions Compressed Air Required
90 to 100 psi | 6.2 to 6.9 bar
Operating Conditions Housing Construction Collector Thickness
10 gauge
Operating Conditions Housing Construction Tubesheet Thickness
7 gauge
Operating Conditions Housing Rating
-20 inH2O | -508 mmH2O
Operating Conditions Seismic Rating Zone
4
Operating Conditions Wind Load Rating
100 mph | 161 km/h
Operations
23 standard model sizesCustomized sizes availableMany options and accessoriesExceptionally compact designSignificant energy savings
Specifications Approximate Shipping Weight
12600 lb | 5715.3 kg
Specifications Nominal Airflow
9120 to 76600 ft³/min | 15491.7 to 130116.6 m³/h
Specifications Number Of Cartridges
96
Specifications Number Of Filters
96
Specifications Number Of Filter Rows
4
Specifications Number Of Valves
48
Specifications Ultra Web Filter Area
18240 ft² | 1694.5 m²
