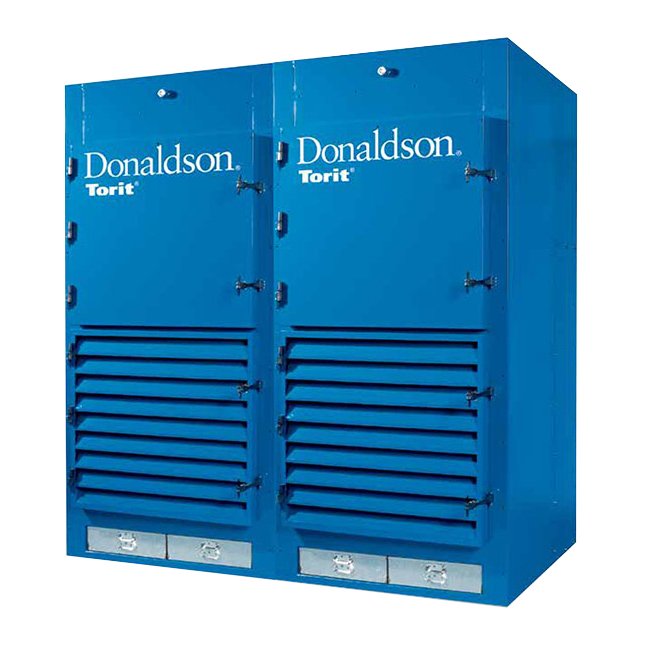

Donaldson Downflo® Workstation 9000 Dust Collector

Donaldson Downflo® Workstation 9000 Dust Collector

SKU:DOW-1e4f5f

Enhance workplace safety and air quality with the Donaldson Downflo® Workstation 9000 Dust Collector.

Regular price $4,999.99
Regular price Sale price $4,999.99
Sale

Initiate Order

Donaldson Downflo® Workstation 9000 Dust Collector

Donaldson Downflo® Workstation 9000 Dust Collector

$4,999.99

Quantity: 1

Claim Your Seller Account

Donaldson Downflo® Workstation 9000 Dust Collector

Donaldson Downflo® Workstation 9000 Dust Collector

$4,999.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The Donaldson Downflo® Workstation 9000 Dust Collector offers cutting-edge air filtration technology designed for industrial settings. With a nominal airflow of 9000 cubic feet per minute and proprietary Ultra-Web® filters, this collector ensures a cleaner work environment by efficiently capturing dust particles. Its modular design, energy-saving features, and reversible louver inlets make it a versatile and cost-effective solution for metalworking, woodworking, and other industrial processes. Backed by a 10-year warranty, this collector is engineered for durability, ease of maintenance, and superior performance.

Product Specifications

Additional Information
The Downflo® WorkStation's advantages are found in the collector's exclusive design and proprietary components. Featuring a ledgeless design in combination with proprietary Ultra-Web® filter media and ExtraLife™ cleaning technology, the DWS delivers exceptional performance in metalworking, woodworking, and process applications where high filtration efficiency and ledgeless construction is often a requirement.

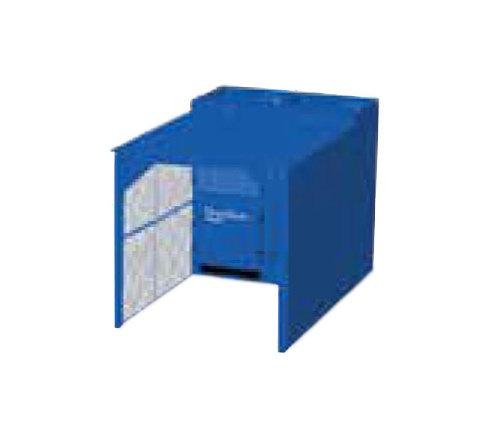

Design Options Canopy With Side Shields
90 x 36 x 90 in | 2286 x 914 x 2286 mm

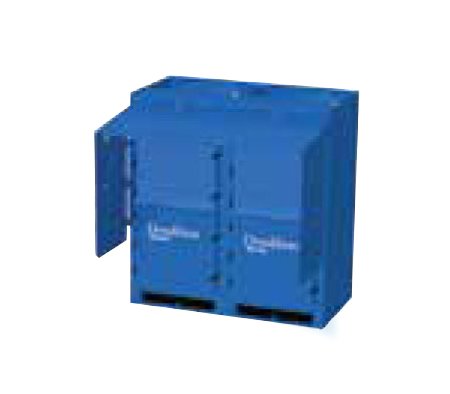

Design Options Hard Wall Acoustic Panels
90 x 90 x 90 in | 2286 x 2286 x 2286 mm
Design Options Hard Wall Galvanized Panels
90 x 90 x 90 in | 2286 x 2286 x 2286 mm
Design Options Note For Design Options
Dimensions are width x depth x height
Design Options Soft Wall Acoustical Curtains
90 x 90 x 90 in | 2286 x 2286 x 2286 mm
Design Options Soft Wall Weld Curtains
90 x 90 x 90 in | 2286 x 2286 x 2286 mm

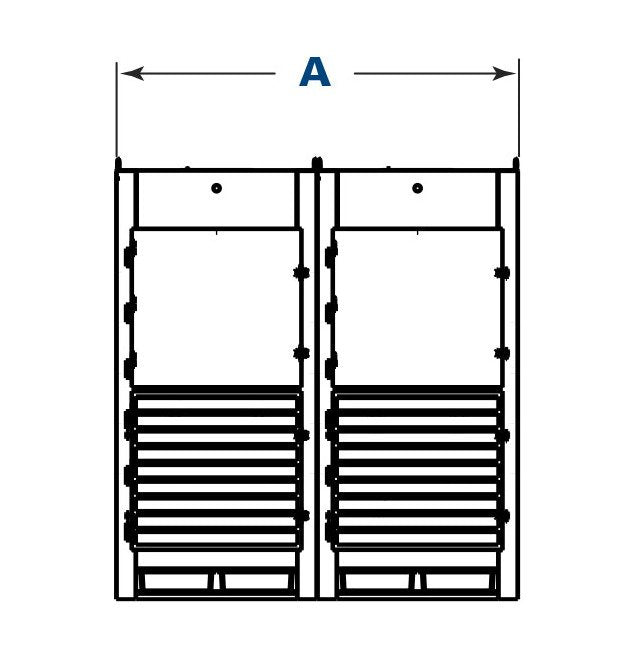

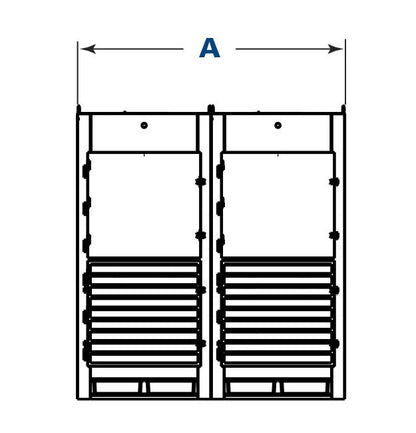

Dimensions Dimension A
90 in | 2286.0 mm

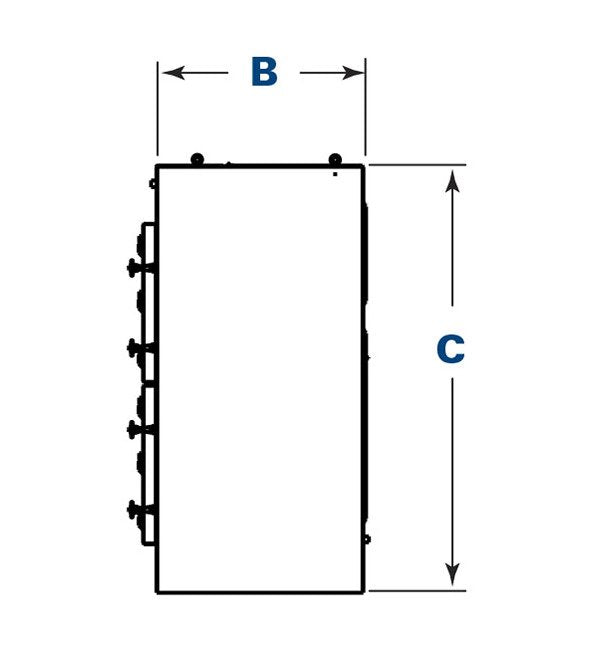

Dimensions Dimension B
47.8 in | 1214.1 mm
Dimensions Dimension C
96.0 in | 2438.4 mm
Features
Flexible, modular, self-contained workstationsProprietary Ultra-Web® cartridge filters provide cleaner air longerEasy filter access requires no toolsNo hoods or ductwork requiredEnergy savings - recirculate clean air and reduce the need for costly make-up airLedgeless construction minimizes dust build up inside the collectorReversible louver inlets
Operations
8 standard model sizesCustomized sizes availableMany options and accessories
Purpose
Most basic booth/hooding arrangementLightweight structure for use under most light conditionsLightweight structure for moderate sound controlHeavy-duty structure/smooth walls for easy washdownHeavy-duty structure for higher sound control
Specifications Nominal Airflow
9000 ft³/min | 15288 m³/h
Specifications Number Of Drawers
4
Specifications Number Of Filters
8
Specifications Number Of Modules
2
Specifications Number Of Valves
8
Specifications Shipping Weight
2600 lb | 1179.3 kg
Specifications Ultra Web Filter Area
1520 ft² | 141.2 m²
Specifications Warranty
10 years
