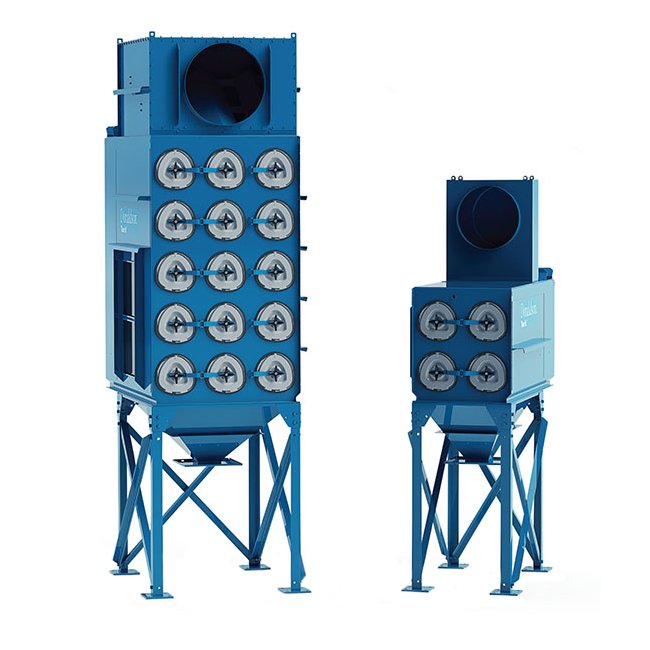

Donaldson Torit Downflo® Evolution 24 Dust Collector (160 in)
Donaldson Torit Downflo® Evolution 24 Dust Collector (160 in)
SKU:DOW-5689d3
Revolutionary Donaldson Torit Downflo® Evolution 24 Dust Collector - Max Efficiency, Min Space!
Regular price
$6,899.99
Regular price
Sale price
$6,899.99
Unit price
per
Initiate Order
Donaldson Torit Downflo® Evolution 24 Dust Collector (160 in)
$6,899.99
Quantity: 1
Claim Your Seller Account
Donaldson Torit Downflo® Evolution 24 Dust Collector (160 in)
$6,899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Donaldson Torit Downflo® Evolution 24 Dust Collector revolutionizes dust collection efficiency for both consumer and institutional buyers. With 24 Donaldson® Torit® filters and a massive Ultra-Web® Filter Area of 6096 ft², this best-in-class collector reduces equipment size and filter needs by up to 40%. Featuring seismic resistance, steel housing, and Ultra-Web® nanofiber filtration, it excels in Dry Bulk, Food Processing, Metal Grinding, and more. Lower costs, increase floor space, and enjoy superior filtration with this intelligent design.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Additional Information
A smaller collector helps lower the initial purchase price, reduces filter replacement costs, and opens up valuable manufacturing floor space.This state of the art collector, coupled with Donaldson®'s industry-leading Ultra-Web® nanofiber filtration technology, is truly an intelligent design.
Applications
Dry Bulk | Food Processing | Glass | Metal Grinding | Metal Manufacturing | Pharmaceutical | Plasma Cutting | Thermal Spray | Welding
Dimensions Dimension A
160 in | 4064 mm
Dimensions Dimension B
68 in | 1727.0 mm
Dimensions Dimension C
101 in | 2565 mm
Dimensions Dimension D
24.0 in | 36.0 in | 42.0 in | 48.0 in | 610 mm | 915 mm | 1067 mm | 1219 mm
Operating Conditions Alternating Current Ac Control Voltage
120 V
Operating Conditions Basic Wind Speed And Exposure C Per Interna
90 mph | 145 km/h
Operating Conditions Compressed Air Required
90 to 100 psi | 6.2 to 6.9 bar
Operating Conditions Direct Current Dc Control Voltage
24 V
Operating Conditions Housing Construction Material
Steel
Operating Conditions Housing Construction Material Thickness
3/16 in. (4.8 mm) to 10 Gauge
Operating Conditions Housing Rating
-25 to 10 inH2O | -635 to 254 mmH2O
Operating Conditions Operating Temperature
150 ºF | 66 ºC
Operating Conditions Seismic Spectral Acceleration S1 Per Intern
0.6 g
Operating Conditions Seismic Spectral Acceleration Ss Per Intern
1.5 g
Specifications Approximate Shipping Weight
4090 lb | 1855 kg
Specifications Inlet Size For 24 Inch In Dimension D
10 to 16 in
Specifications Inlet Size For 36 Inch In Dimension D
17 to 24 in
Specifications Inlet Size For 42 Inch In Dimension D
26 in | 28 in | 30 in | 32 in
Specifications Inlet Size For 48 Inch In Dimension D
34 in | 36 in | 38 in | 40 in | 42 in
Specifications Number Of Filters
24
Specifications Number Of Valves
12
Specifications Ultra Web Filter Area
6096 ft² | 566.3 m²
