Donaldson Torit Downflo® Evolution 48 Dust Collector
Donaldson Torit Downflo® Evolution 48 Dust Collector
SKU:DOW-0ae652
Revolutionary Downflo® Evolution 48 Dust Collector - Enhance efficiency and save costs with superior Donaldson Torit technology.
Regular price
$7,850.00
Regular price
Sale price
$7,850.00
Unit price
per
Initiate Order
Donaldson Torit Downflo® Evolution 48 Dust Collector
$7,850.00
Quantity: 1
Claim Your Seller Account
Donaldson Torit Downflo® Evolution 48 Dust Collector
$7,850.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

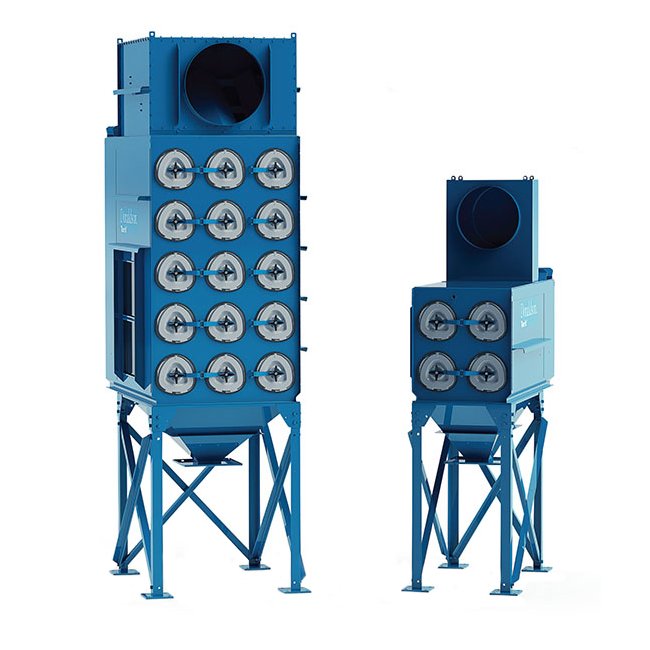

The Downflo® Evolution 48 Dust Collector by Donaldson Torit redefines dust collection efficiency. Featuring 48 advanced Ultra-Web® filters, this best-in-class collector significantly reduces equipment size and filter replacement costs while maximizing manufacturing floor space. With a robust steel construction, seismic and wind load ratings, and cutting-edge nanofiber filtration technology, this collector exceeds industry standards for performance and longevity.
Product Specifications
Additional Information
A smaller collector helps lower the initial purchase price, reduces filter replacement costs, and opens up valuable manufacturing floor space.This state of the art collector, coupled with Donaldson®'s industry-leading Ultra-Web® nanofiber filtration technology, is truly an intelligent design.
Applications
Dry Bulk | Food Processing | Glass | Metal Grinding | Metal Manufacturing | Pharmaceutical | Plasma Cutting | Thermal Spray | Welding
Dimensions Dimension A
160 in | 4064 mm
Dimensions Dimension B
128 in | 3251.0 mm
Dimensions Dimension C
101 in | 2565 mm
Dimensions Dimension D
24.0 in | 36.0 in | 42.0 in | 48.0 in | 610 mm | 915 mm | 1067 mm | 1219 mm
Operating Conditions Alternating Current Ac Control Voltage
120 V
Operating Conditions Basic Wind Speed And Exposure C Per Interna
90 mph | 145 km/h
Operating Conditions Compressed Air Required
90 to 100 psi | 6.2 to 6.9 bar
Operating Conditions Direct Current Dc Control Voltage
24 V
Operating Conditions Housing Construction Material
Steel
Operating Conditions Housing Construction Material Thickness
3/16 in. (4.8 mm) to 10 Gauge
Operating Conditions Housing Rating
-25 to 10 inH2O | -635 to 254 mmH2O
Operating Conditions Operating Temperature
150 ºF | 66 ºC
Operating Conditions Seismic Spectral Acceleration S1 Per Intern
0.6 g
Operating Conditions Seismic Spectral Acceleration Ss Per Intern
1.5 g
Specifications Approximate Shipping Weight
6700 lb | 3039 kg
Specifications Inlet Size For 24 Inch In Dimension D
10 to 16 in
Specifications Inlet Size For 36 Inch In Dimension D
17 to 24 in
Specifications Inlet Size For 42 Inch In Dimension D
26 in | 28 in | 30 in | 32 in
Specifications Inlet Size For 48 Inch In Dimension D
34 in | 36 in | 38 in | 40 in | 42 in
Specifications Number Of Filters
48
Specifications Number Of Valves
24
Specifications Ultra Web Filter Area
12192 ft² | 1132.7 m²
