Donaldson Torit Downflo® Oval Dust Collector - 24 Filters, 125.0 in Dimension A
Donaldson Torit Downflo® Oval Dust Collector - 24 Filters, 125.0 in Dimension A
SKU:DOW-51de7a
High-efficiency Downflo® Oval Dust Collector - 24 Filters, Ultra-Web® Technology, Cost-effective
Regular price
$14,999.00
Regular price
Sale price
$14,999.00
Unit price
per
Initiate Order
Donaldson Torit Downflo® Oval Dust Collector - 24 Filters, 125.0 in Dimension A
$14,999.00
Quantity: 1
Claim Your Seller Account
Donaldson Torit Downflo® Oval Dust Collector - 24 Filters, 125.0 in Dimension A
$14,999.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

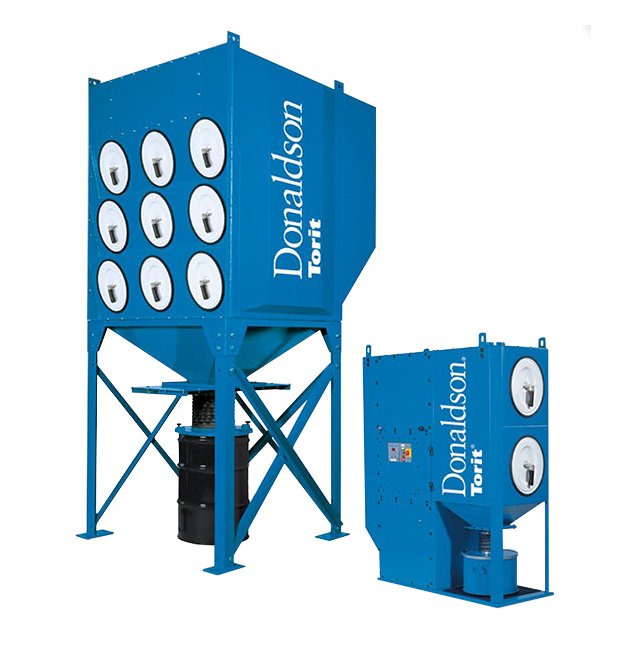

The Donaldson Torit Downflo® Oval Dust Collector is a high-performance solution designed for industrial settings, meeting the rigorous filtration needs of institutional buyers. With 24 cartridges and Ultra-Web® nanofiber filtration technology, it ensures cleaner air, extended filter life, and significant cost savings. This collector boasts a smaller footprint, lowering initial costs and saving valuable floor space while maintaining exceptional performance and energy efficiency.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Additional Information
The DFO advantage is found in the collector's proprietary design and components. The combination of a new cabinet design that greatly lowers cabinet velocities, proprietary Extra-Life™ cleaning technology, and proven Ultra-Web® nanofiber filters allows more airflow through the collector without increasing the size of the footprint or damaging the filters.A smaller collector helps lower the initial purchase price, reduces filter replacement costs and opens up valuable manufacturing floor space.

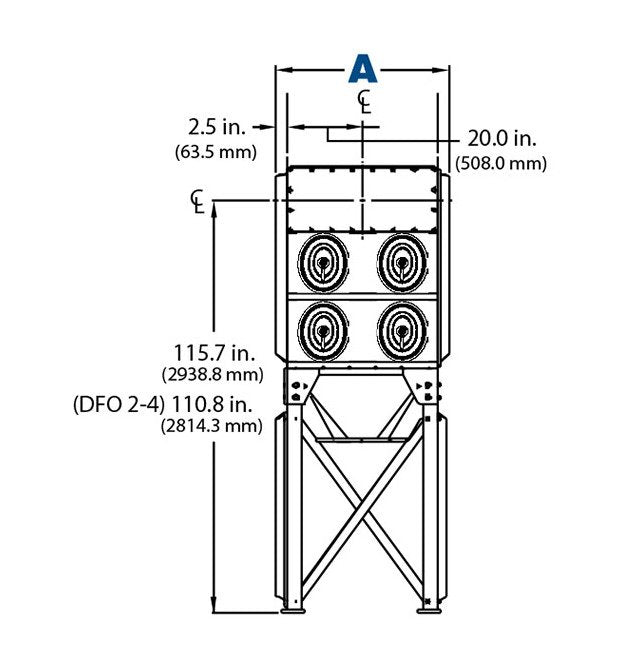

Dimensions Dimension A
125.0 in | 3175.0 mm
Dimensions Dimension B
127.8 in | 3246.1 mm
Dimensions Dimension C
84.0 in | 2133.6 mm
Note
Provided through Donaldson® Torit® fan program.
Operating Conditions Compressed Air Required
90 to 100 psi | 6.2 to 6.9 bar
Operating Conditions Housing Construction Collector Thickness
10 gauge
Operating Conditions Housing Construction Tubesheet Thickness
7 gauge
Operating Conditions Housing Rating
-20 inH2O | -508 mmH2O
Operating Conditions Seismic Rating Zone
4
Operating Conditions Wind Load Rating
100 mph | 161 km/h
Operations
23 standard model sizesCustomized sizes availableMany options and accessoriesExceptionally compact designSignificant energy savings
Specifications Approximate Shipping Weight
4200 lb | 1905.1 kg
Specifications Nominal Airflow
2280 to 19150 ft³/min | 3872.9 to 32529.1 m³/h
Specifications Number Of Cartridges
24
Specifications Number Of Filters
24
Specifications Number Of Filter Rows
2
Specifications Number Of Valves
12
Specifications Ultra Web Filter Area
4560 ft² | 423.6 m²
