Donaldson Torit PowerCore CP Series Dust Collector - 46.8" x 37.2"
Donaldson Torit PowerCore CP Series Dust Collector - 46.8" x 37.2"
Revolutionize dust collection with Donaldson Torit PowerCore CP Series. Compact, powerful, and efficient. Ideal for industrial use.
Regular price
$8,499.99
Regular price
Sale price
$8,499.99
Unit price
per
Initiate Order
Donaldson Torit PowerCore CP Series Dust Collector - 46.8" x 37.2"
$8,499.99
Quantity: 1
Claim Your Seller Account
Donaldson Torit PowerCore CP Series Dust Collector - 46.8" x 37.2"
$8,499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

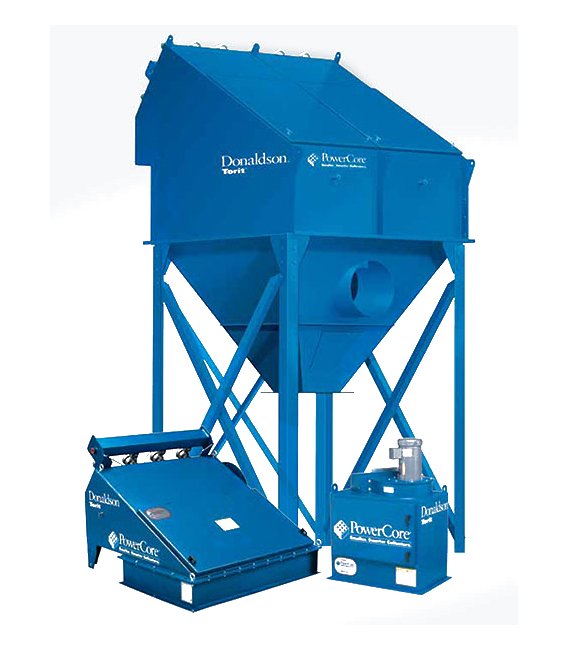

The Donaldson Torit® PowerCore® CP Series 46.8" x 37.2" Dust Collector offers a revolutionary approach to dust collection. Featuring PowerCore® filter packs with Ultra-Web® nanofiber technology, this compact unit delivers the filtering area equivalent to 6 traditional filter bags in a smaller footprint. With a nominal airflow of 1400 to 2700 ft³/min, this unit ensures efficient dust filtration while maintaining ease of operation and seismic/wind load durability. Ideal for industrial settings, it combines performance, reliability, and space-saving design.
Product Specifications

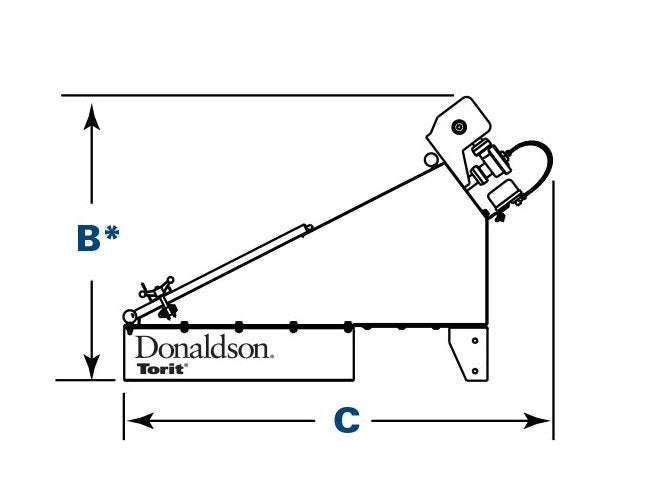

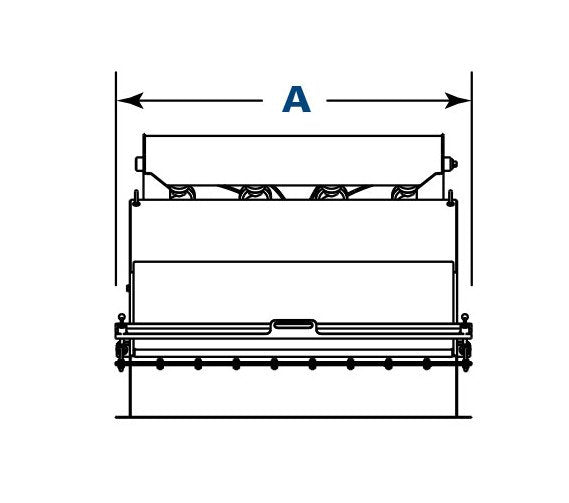

Dimensions Dimension A
46.8 in | 1188.7 mm
Dimensions Dimension B
37.2 in | 944.9 mm
Dimensions Dimension C
47.7 in | 1211.6 mm
Dimensions Note For Dimension B
For opening access door, allow a minimum of 2.5" (63.5 mm) above unit for models 2, 3, 4, and a minimum of 20.5" (520.7 mm) for models 6, 8, 12.
Operating Conditions Compressed Air Required
90 to 100 psi | 6.2 to 6.9 bar
Operating Conditions Operating Temperature
150 ºF | 66 ºC
Operating Conditions Seismic Spectral Acceleration S1 At Grade
0.6 g
Operating Conditions Seismic Spectral Acceleration Ss At Grade
1.5 g
Operating Conditions Wind Load Rating
90 mph | 145 km/h
Specifications Housing Rating
20 inwg
Specifications Nominal Airflow
1400 to 2700 ft³/min | 2378 to 4586 m³/h
Specifications Number Of Filter Packs
4
Specifications Number Of Valves
4
Specifications Powercore Filter Area
252 ft² | 23.4 m²
Specifications Shipping Weight
460 lb | 208.7 kg
