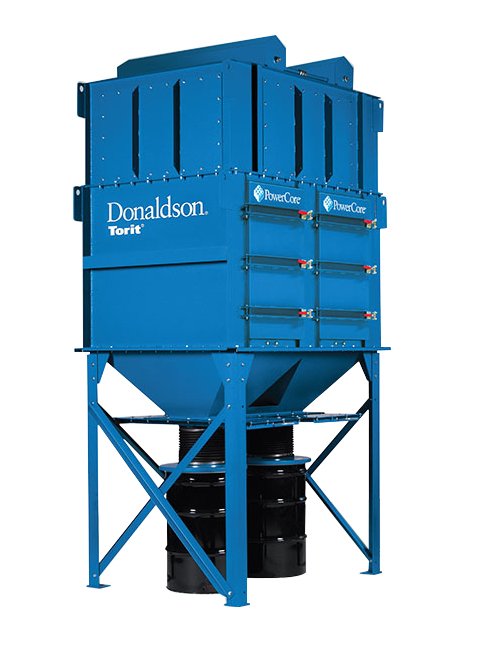

Donaldson Torit PowerCore VH Series Dust Collector
Donaldson Torit PowerCore VH Series Dust Collector
The ultimate dust control solution for mining and metalworking operations.
Regular price
$12,999.99
Regular price
Sale price
$12,999.99
Unit price
per
Initiate Order
Donaldson Torit PowerCore VH Series Dust Collector
$12,999.99
Quantity: 1
Claim Your Seller Account
Donaldson Torit PowerCore VH Series Dust Collector
$12,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Donaldson Torit PowerCore VH Series Dust Collector is engineered for the rigorous demands of mining and metalworking industries. With a nominal airflow range of 13600 to 20400 ft³/min, this collector features 12 PowerCore filter packs providing a filter area of 2376 ft². Designed to handle heavy and abrasive dust loads from various operations like crushing and grinding, this unit ensures efficient air filtration and dust control. Its robust construction and advanced features make it ideal for indoor and outdoor applications, offering high performance and reliability.
Product Specifications
Dimensions Dimension A
78.5 in | 1993.9 mm
Dimensions Dimension B
192.8 in | 4897.1 mm
Dimensions Dimension C
242.8 in | 6167.1 mm
Dimensions Dimension D
78.9 in | 2004.1 mm
Dimensions Dimension E
25.9 in | 657.9 mm
Dimensions Dimension F
112.8 in | 2865.1 mm
Operating Conditions Alternating Current Ac Control Voltage
120 V
Operating Conditions Basic Wind Speed And Exposure C Per Interna
90 mph | 145 km/h
Operating Conditions Compressed Air Required
6.2 to 6.9 bar | 90 to 100 psi
Operating Conditions Direct Current Dc Control Voltage
24 V
Operating Conditions Housing Construction Material
Steel
Operating Conditions Housing Construction Material Thickness
3/16 in. (4.8 mm) to 10 Gauge
Operating Conditions Housing Rating
20 inH2O | 508 mmH2O
Operating Conditions Operating Temperature
49 ºC | 120 ºF
Operating Conditions Seismic Spectral Acceleration S1 Per Intern
0.6 g
Operating Conditions Seismic Spectral Acceleration Ss Per Intern
1.5 g
Specifications Applications
Aluminum Blasting | Pipe Grinding
Specifications Nominal Airflow With High Body Inlet
13600 to 20400 ft³/min | 23102 to 34652 m³/h
Specifications Number Of Doors
2
Specifications Number Of Filter Packs
12
Specifications Number Of Valves
12
Specifications Powercore Filter Area
2376 ft² | 220.7 m²
Specifications Shipping Weight
5800 lb | 2630.8 kg
