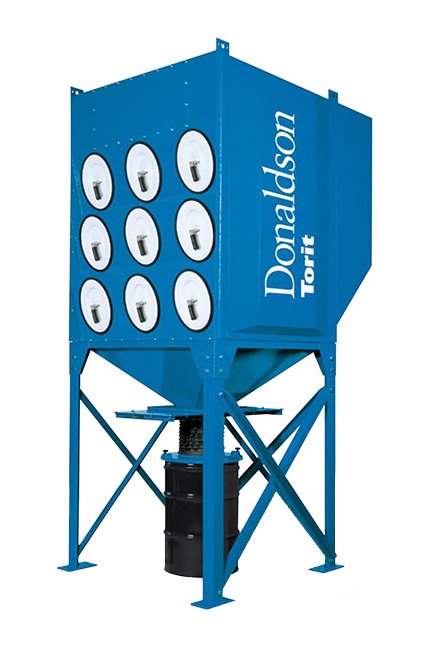

The Downflo® Oval 18 Filters Dust Collector with a 65.0-inch Dimension sets a new standard in dust collection efficiency. Featuring advanced Ultra-Web® nanofiber filtration technology, this collector delivers exceptional air quality, prolonged filter life, and cost savings. With a compact design and premium components like Extra-Life™ cleaning tech, it maximizes airflow without increasing footprint. Ideal for industrial settings, it offers high performance, durability, and significant energy savings.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Additional Information
The DFO advantage is found in the collector's proprietary design and components. The combination of a new cabinet design that greatly lowers cabinet velocities, proprietary Extra-Life™ cleaning technology, and proven Ultra-Web® nanofiber filters allows more airflow through the collector without increasing the size of the footprint or damaging the filters.A smaller collector helps lower the initial purchase price, reduces filter replacement costs and opens up valuable manufacturing floor space.

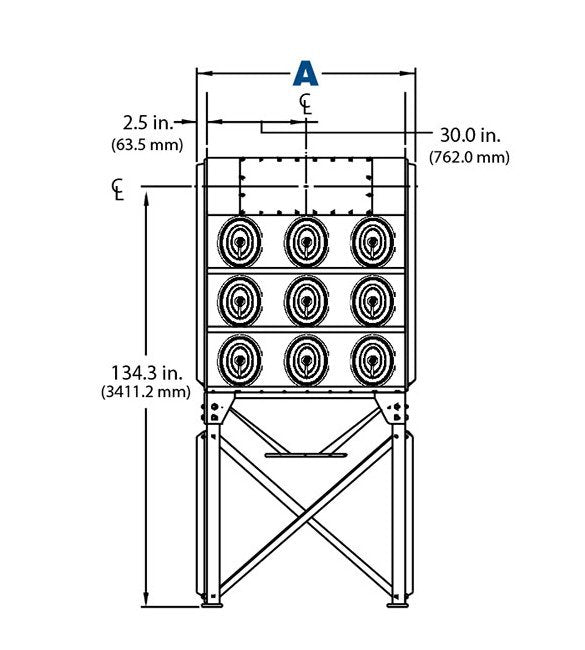

Dimensions Dimension A
65.0 in | 1651.0 mm
Dimensions Dimension B
146.5 in | 3721.1 mm
Dimensions Dimension C
85.3 in | 2166.6 mm
Note
Provided through Donaldson® Torit® fan program.
Operating Conditions Compressed Air Required
90 to 100 psi | 6.2 to 6.9 bar
Operating Conditions Housing Construction Collector Thickness
10 gauge
Operating Conditions Housing Construction Tubesheet Thickness
7 gauge
Operating Conditions Housing Rating
-20 inH2O | -508 mmH2O
Operating Conditions Seismic Rating Zone
4
Operating Conditions Wind Load Rating
100 mph | 161 km/h
Operations
23 standard model sizesCustomized sizes availableMany options and accessoriesExceptionally compact designSignificant energy savings
Specifications Approximate Shipping Weight
2800 lb | 1270.1 kg
Specifications Nominal Airflow
1710 to 14370 ft³/min | 2904.7 to 24409.6 m³/h
Specifications Number Of Cartridges
18
Specifications Number Of Filters
18
Specifications Number Of Filter Rows
3
Specifications Number Of Valves
9
Specifications Ultra Web Filter Area
3420 ft² | 317.7 m²
