DRYPOINT® FDR10 Membrane Dryers - Clean Air Treatment System
DRYPOINT® FDR10 Membrane Dryers - Clean Air Treatment System
SKU:CLE-3050af
Experience superior clean air treatment with DRYPOINT® FDR10 Membrane Dryers. High performance, maintenance-free operation, and reliable twist 45 technology. Ideal for institutional buyers.
Regular price
$1,448.00
Regular price
Sale price
$1,448.00
Unit price
per
Initiate Order
DRYPOINT® FDR10 Membrane Dryers - Clean Air Treatment System
$1,448.00
Quantity: 1
Claim Your Seller Account
DRYPOINT® FDR10 Membrane Dryers - Clean Air Treatment System
$1,448.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

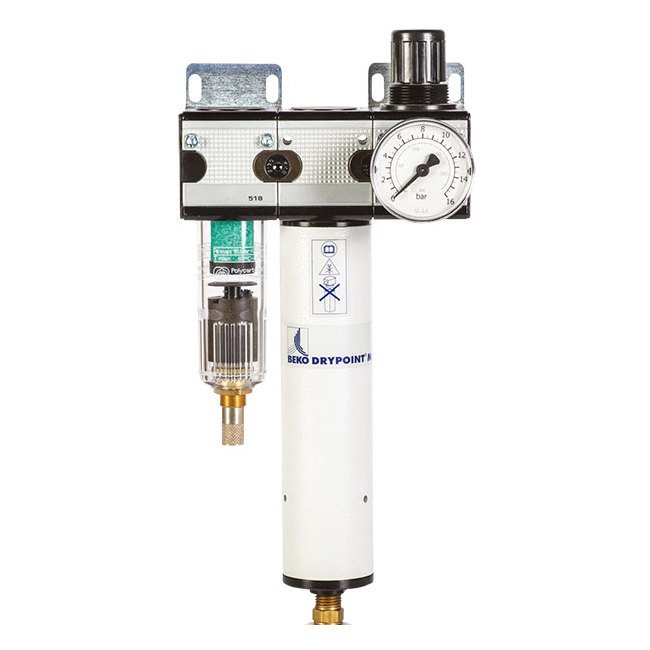

The DRYPOINT® FDR10 Membrane Dryer is a top-of-the-line solution for clean air treatment, featuring pre-configured filter, dryer, and pressure regulator packages. With a flow rate of 11.34 scfm and advanced twist 45 technology, this system ensures the highest performance and reliability. Operating at a maximum standard pressure of 140 psig, it offers maintenance-free operation for 4,000 - 8,000 hours. Ideal for institutional and government buyers seeking energy-efficient and dependable air treatment solutions.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Financing Approve Payments
Finance with Approve Payments
Specifications Connection Size Npt
1/4 in
Specifications Differential Pressure
1.45 to 4.35 psid

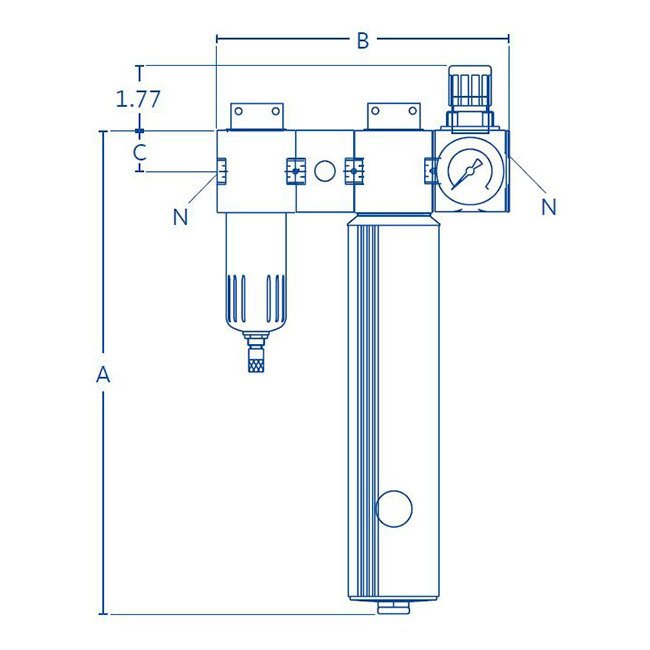

Specifications Dimension A
13.38 in
Specifications Dimension B
6.88 in
Specifications Dimension C
1.06 in
Specifications Flow Rate
11.34 scfm
Specifications Inlet Pdp Pressure Dew Point
+40 to +100 ºF
Specifications Integrated Pre Filtration
0.01 µm
Specifications Maximum Optional Operating Pressure
232 psig
Specifications Maximum Optional Operating Temperature
160 ºF
Specifications Maximum Standard Operating Pressure
140 psig
Specifications Maximum Standard Operating Temperature
130 ºF
Specifications Outlet Pdp Pressure Dew Point For Purge Air 10
+22 to +65 ºF
Specifications Outlet Pdp Pressure Dew Point For Purge Air 17
0 to +35 ºF
Specifications Outlet Pdp Pressure Dew Point For Purge Air 25
-30 to -4 ºF
Specifications Outlet Pdp Pressure Dew Point For Purge Air 28
-40 to -20 ºF
Specifications Purge Air
10 % | 17 % | 25 % | 28 %
Specifications Warranty
5 years
Specifications Web Price
1448 USD
Specifications Weight
6.39 lb
Standard Features And Benefits 0
Twist 45 Technology:Highest possible performance from a membrane with 45º wound fiber.Maximum Reliability:Provides consistent dew point suppression and lasting performance even in the most demanding environments.Highest Performance:Saves energy with zero electricity required and achieves dew point in a minimal amount of time with minimum purge.Maintenance Free:With no moving parts or electrical components trouble-free operation is achieved even in mobile applications.Perfect Design:The small footprint combined with the variety of configurations possible make an ideal choice for all types of applications.
