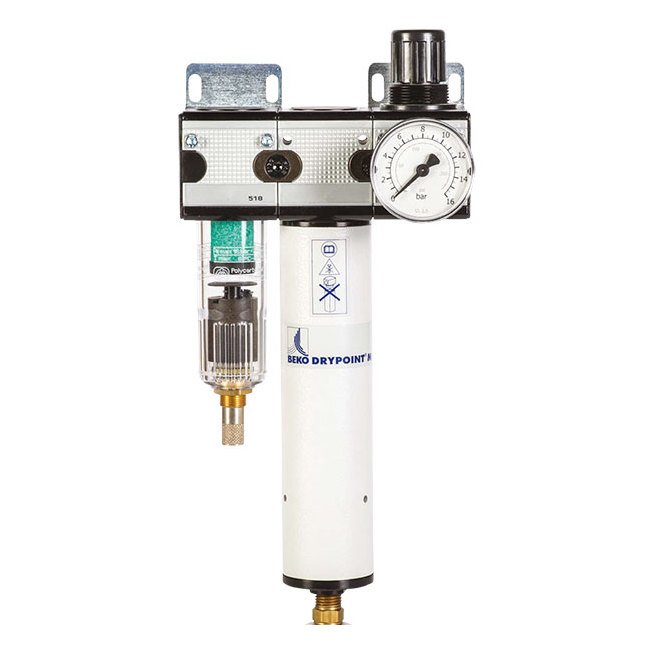

DRYPOINT® FDR17 Membrane Dryers - Air Treatment Solution

DRYPOINT® FDR17 Membrane Dryers - Air Treatment Solution

CLE-55ad5e

Enhanced air treatment with customizable configurations and Twist 45 Technology for optimal performance and reliability.

$1,666.00
$1,666.00
Sale

Initiate Order

DRYPOINT® FDR17 Membrane Dryers - Air Treatment Solution

DRYPOINT® FDR17 Membrane Dryers - Air Treatment Solution

$1,666.00

Quantity: 1

Claim Your Seller Account

DRYPOINT® FDR17 Membrane Dryers - Air Treatment Solution

DRYPOINT® FDR17 Membrane Dryers - Air Treatment Solution

$1,666.00

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
Experience top-tier air treatment with DRYPOINT® FDR17 Membrane Dryers. These pre-configured packages are designed for optimal filtration efficiency, pressure regulation, and maintenance convenience. With customizable configurations to suit specific applications and a maintenance interval of 4,000 - 8,000 hours, these dryers ensure reliable operation in diverse environments. Featuring Twist 45 Technology, these dryers offer consistent dew point suppression, energy savings, and a maintenance-free design suitable for various applications.

Ready to Grow Without Cash Flow Constraints?

Get Net 30, 60, or 90 day terms at 0% interest on any purchase

Check Your Eligibility Now
Ready to Grow Without Cash Flow Constraints?

Product Specifications

Financing Approve Payments
Finance with Approve Payments
Specifications Connection Size Npt
1/4 in
Specifications Differential Pressure
1.45 to 4.35 psid

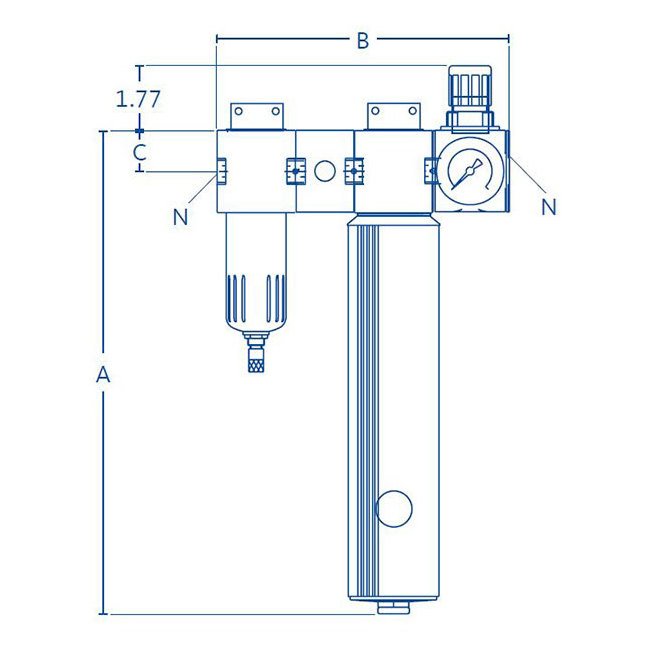

Specifications Dimension A
18.50 in
Specifications Dimension B
6.88 in
Specifications Dimension C
1.06 in
Specifications Flow Rate
16.73 scfm
Specifications Inlet Pdp Pressure Dew Point
+40 to +100 ºF
Specifications Integrated Pre Filtration
0.01 µm
Specifications Maximum Optional Operating Pressure
232 psig
Specifications Maximum Optional Operating Temperature
160 ºF
Specifications Maximum Standard Operating Pressure
140 psig
Specifications Maximum Standard Operating Temperature
130 ºF
Specifications Outlet Pdp Pressure Dew Point For Purge Air 10
+22 to +65 ºF
Specifications Outlet Pdp Pressure Dew Point For Purge Air 17
0 to +35 ºF
Specifications Outlet Pdp Pressure Dew Point For Purge Air 25
-30 to -4 ºF
Specifications Outlet Pdp Pressure Dew Point For Purge Air 28
-40 to -20 ºF
Specifications Purge Air
10 % | 17 % | 25 % | 28 %
Specifications Warranty
5 years
Specifications Web Price
1666 USD
Specifications Weight
7.27 lb
Standard Features And Benefits 0
Twist 45 Technology:Highest possible performance from a membrane with 45º wound fiber.Maximum Reliability:Provides consistent dew point suppression and lasting performance even in the most demanding environments.Highest Performance:Saves energy with zero electricity required and achieves dew point in a minimal amount of time with minimum purge.Maintenance Free:With no moving parts or electrical components trouble-free operation is achieved even in mobile applications.Perfect Design:The small footprint combined with the variety of configurations possible make an ideal choice for all types of applications.
