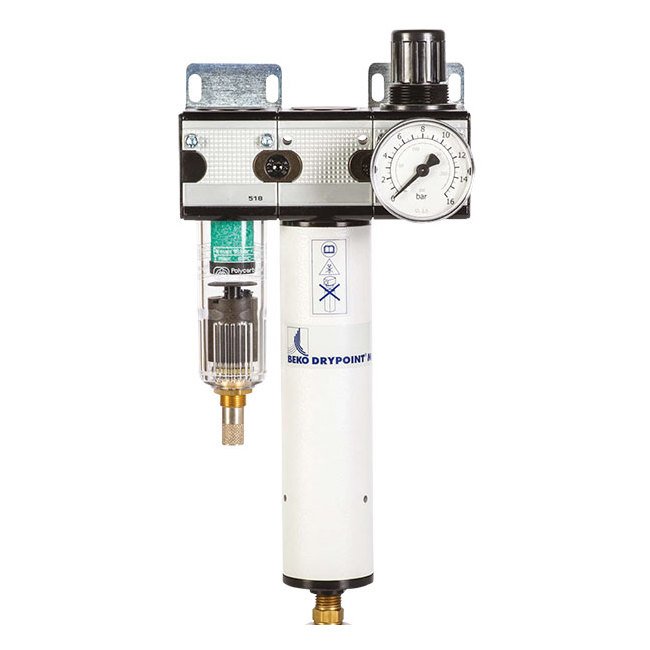

DRYPOINT® FDR2 Membrane Air Dryer
DRYPOINT® FDR2 Membrane Air Dryer
SKU:CLE-535225
Enhance air quality with DRYPOINT® FDR2 Membrane Air Dryer. Customizable, maintenance-free, and reliable for optimal performance.
Regular price
$1,058.00
Regular price
Sale price
$1,058.00
Unit price
per
Initiate Order
DRYPOINT® FDR2 Membrane Air Dryer
$1,058.00
Quantity: 1
Claim Your Seller Account
DRYPOINT® FDR2 Membrane Air Dryer
$1,058.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The DRYPOINT® FDR2 Membrane Air Dryer offers superior air treatment with a pre-configured filter, dryer, and pressure regulator package. Customizable to fit various applications, it ensures clean and dry air supply with a flow rate of 2.09 scfm. Operating within a range of 34°F to 160°F and 140 to 232 psig, this maintenance-free dryer guarantees high performance and reliability. With integrated pre-filtration of 0.01 µm and a 5-year warranty, it meets the highest standards for efficiency and durability, making it ideal for institutional and government procurement needs.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Financing Approve Payments
Finance with Approve Payments
Specifications Connection Size Npt
1/4 in
Specifications Differential Pressure
1.45 to 4.35 psid
Specifications Dimension A
7.48 in
Specifications Dimension B
5.51 in
Specifications Dimension C
1.06 in
Specifications Flow Rate
2.09 scfm
Specifications Inlet Pdp Pressure Dew Point
+40 to +100 ºF
Specifications Integrated Pre Filtration
0.01 µm
Specifications Maximum Optional Operating Pressure
232 psig
Specifications Maximum Optional Operating Temperature
160 ºF
Specifications Maximum Standard Operating Pressure
140 psig
Specifications Maximum Standard Operating Temperature
130 ºF
Specifications Outlet Pdp Pressure Dew Point For Purge Air 10
+22 to +65 ºF
Specifications Outlet Pdp Pressure Dew Point For Purge Air 17
0 to +35 ºF
Specifications Outlet Pdp Pressure Dew Point For Purge Air 25
-30 to -4 ºF
Specifications Outlet Pdp Pressure Dew Point For Purge Air 28
-40 to -20 ºF
Specifications Purge Air
10 % | 17 % | 25 % | 28 %
Specifications Warranty
5 years
Specifications Web Price
1058 USD
Specifications Weight
2.97 lb
Standard Features And Benefits 0
Twist 45 Technology:Highest possible performance from a membrane with 45º wound fiber.Maximum Reliability:Provides consistent dew point suppression and lasting performance even in the most demanding environments.Highest Performance:Saves energy with zero electricity required and achieves dew point in a minimal amount of time with minimum purge.Maintenance Free:With no moving parts or electrical components trouble-free operation is achieved even in mobile applications.Perfect Design:The small footprint combined with the variety of configurations possible make an ideal choice for all types of applications.
