DRYPOINT® MDi12 Membrane Dryer
DRYPOINT® MDi12 Membrane Dryer
SKU:CLE-dcebc9
DRYPOINT® MDi12 Membrane Dryer - Superior air quality, energy-efficient, maintenance-free, with integrated pre-filtration. Ideal for various applications.
Regular price
$699.99
Regular price
Sale price
$699.99
Unit price
per
Initiate Order
DRYPOINT® MDi12 Membrane Dryer
$699.99
Quantity: 1
Claim Your Seller Account
DRYPOINT® MDi12 Membrane Dryer
$699.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The DRYPOINT® MDi12 ecoIntelligent Series Membrane Dryer ensures superior air quality with adjustable pressure dew point control, integrated pre-filtration of 0.01 μm, and a maintenance interval of 8,000 hours. With a flow rate of 12.55 scfm and maximum operating pressure of 145 psig, this membrane dryer is designed for lasting performance, energy savings, and trouble-free operation, making it ideal for various applications. The Twist 45 Technology ensures consistent dew point suppression, reliability, and minimal energy consumption, all backed by a 5-year warranty.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Financing Approve Payments
Finance with Approve Payments
Specifications Connection Size Npt
3/8 in

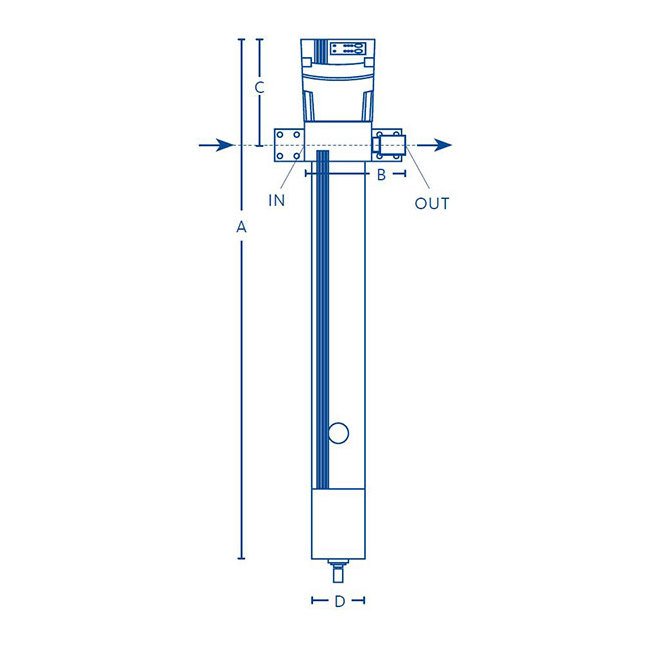

Specifications Dimension A
24.44 in
Specifications Dimension B
5.90 in
Specifications Dimension C
5.67 in
Specifications Dimension D
2.36 in
Specifications Flow Rate
12.55 scfm
Specifications Inlet Capacity For Purge Air 10
12.55 scfm
Specifications Inlet Pdp Pressure Dew Point
+40 to +100 ºF
Specifications Integrated Pre Filtration
0.01 µm
Specifications Maximum Standard Operating Pressure
145 psig
Specifications Maximum Standard Operating Temperature
122 ºF
Specifications Outlet Pdp Pressure Dew Point For Purge Air 10
+22 to +65 ºF
Specifications Outlet Pdp Pressure Dew Point For Purge Air 17
0 to +35 ºF
Specifications Outlet Pdp Pressure Dew Point For Purge Air 25
-30 to -4 ºF
Specifications Outlet Pdp Pressure Dew Point For Purge Air 28
-40 to -20 ºF
Specifications Purge Air
10 % | 17 % | 25 % | 28 %
Specifications Warranty
5 years
Specifications Weight
7.50 lb
Standard Features And Benefits 0
Twist 45 Technology:Highest possible performance from a membrane with 45º wound fiber.Maximum Reliability:Provides consistent dew point suppression and lasting performance even in the most demanding environments.Highest Performance:Saves energy with zero electricity required and achieves dew point in a minimal amount of time with minimum purge.Maintenance Free:With no moving parts or electrical components trouble-free operation is achieved even in mobile applications.Perfect Design:The small footprint combined with the variety of configurations possible make an ideal choice for all types of applications.
