DRYPOINT® MDi130 Membrane Dryer
DRYPOINT® MDi130 Membrane Dryer
SKU:CLE-441dd7
Enhance air quality with the DRYPOINT® MDi130 Membrane Dryer. Twist 45 Technology ensures top performance and energy savings.
Regular price
$1,899.99
Regular price
Sale price
$1,899.99
Unit price
per
Initiate Order
DRYPOINT® MDi130 Membrane Dryer
$1,899.99
Quantity: 1
Claim Your Seller Account
DRYPOINT® MDi130 Membrane Dryer
$1,899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The DRYPOINT® MDi130 ecoIntelligent Series Membrane Dryer is a cutting-edge solution for clean air treatment. With adjustable pressure dew point control and integrated pre-filtration of 0.01 μm, this membrane dryer ensures high-quality compressed air supply. Offering a flow rate of 128.25 scfm and operating at a maximum pressure of 145 psig, it is designed for efficiency and reliability. The ecoIntelligent Series features Twist 45 Technology for optimal performance, energy savings, and maintenance-free operation. This compact and versatile dryer is ideal for various applications, meeting the demands of institutional buyers looking for top-tier air treatment solutions.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Financing Approve Payments
Finance with Approve Payments
Specifications Connection Size Npt
1 in

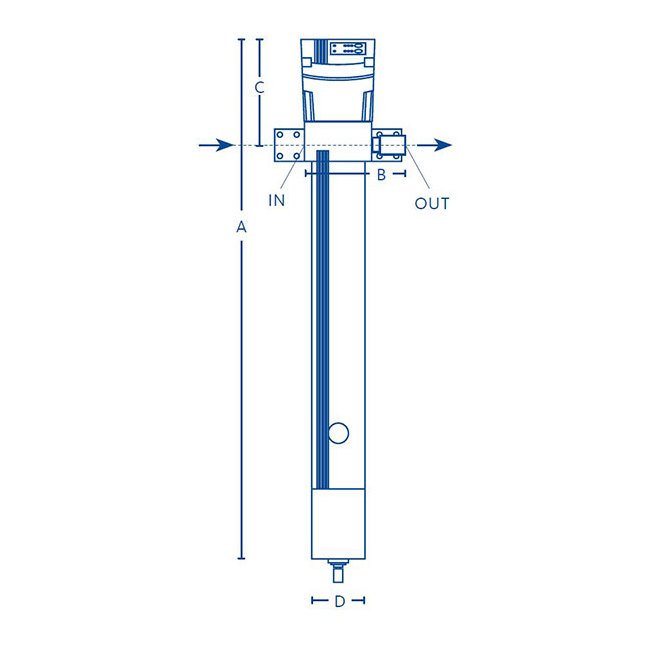

Specifications Dimension A
4728 in
Specifications Dimension B
9.84 in
Specifications Dimension C
6.46 in
Specifications Dimension D
4.92 in
Specifications Flow Rate
128.25 scfm
Specifications Inlet Capacity For Purge Air 10
128.25 scfm
Specifications Inlet Pdp Pressure Dew Point
+40 to +100 ºF
Specifications Integrated Pre Filtration
0.01 µm
Specifications Maximum Standard Operating Pressure
145 psig
Specifications Maximum Standard Operating Temperature
122 ºF
Specifications Outlet Pdp Pressure Dew Point For Purge Air 10
+22 to +65 ºF
Specifications Outlet Pdp Pressure Dew Point For Purge Air 17
0 to +35 ºF
Specifications Outlet Pdp Pressure Dew Point For Purge Air 25
-30 to -4 ºF
Specifications Outlet Pdp Pressure Dew Point For Purge Air 28
-40 to -20 ºF
Specifications Purge Air
10 % | 17 % | 25 % | 28 %
Specifications Warranty
5 years
Specifications Weight
28.88 lb
Standard Features And Benefits 0
Twist 45 Technology:Highest possible performance from a membrane with 45º wound fiber.Maximum Reliability:Provides consistent dew point suppression and lasting performance even in the most demanding environments.Highest Performance:Saves energy with zero electricity required and achieves dew point in a minimal amount of time with minimum purge.Maintenance Free:With no moving parts or electrical components trouble-free operation is achieved even in mobile applications.Perfect Design:The small footprint combined with the variety of configurations possible make an ideal choice for all types of applications.
