DRYPOINT® MDi35 Membrane Dryer System
DRYPOINT® MDi35 Membrane Dryer System
SKU:CLE-bdd934
Experience superior dew point control with the DRYPOINT® MDi35 Membrane Dryer. Perfect for various applications with exceptional reliability and maintenance-free operation.
Regular price
$1,399.99
Regular price
Sale price
$1,399.99
Unit price
per
Initiate Order
DRYPOINT® MDi35 Membrane Dryer System
$1,399.99
Quantity: 1
Claim Your Seller Account
DRYPOINT® MDi35 Membrane Dryer System
$1,399.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The DRYPOINT® MDi35 Membrane Dryer is a top-of-the-line solution for precise dew point control. With an integrated pre-filtration system of 0.01 μm, this ecoIntelligent series dryer offers a flow rate of 33.46 scfm and operates at a maximum pressure of 145 psig. Built for efficiency, its twist 45 technology ensures reliability and maintenance-free operation, making it perfect for various applications. This dryer is designed to meet the demanding standards of both consumer and institutional buyers, providing unmatched performance and longevity.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Financing Approve Payments
Finance with Approve Payments
Specifications Connection Size Npt
3/4 in

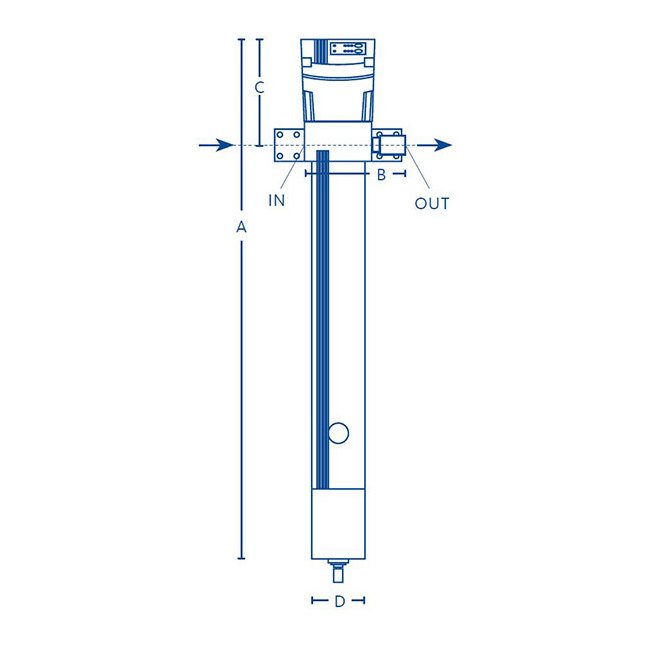

Specifications Dimension A
29.17 in
Specifications Dimension B
7.06 in
Specifications Dimension C
5.90 in
Specifications Dimension D
3.14 in
Specifications Flow Rate
33.46 scfm
Specifications Inlet Capacity For Purge Air 10
29.17 scfm
Specifications Inlet Pdp Pressure Dew Point
+40 to +100 ºF
Specifications Integrated Pre Filtration
0.01 µm
Specifications Maximum Standard Operating Pressure
145 psig
Specifications Maximum Standard Operating Temperature
122 ºF
Specifications Outlet Pdp Pressure Dew Point For Purge Air 10
+22 to +65 ºF
Specifications Outlet Pdp Pressure Dew Point For Purge Air 17
0 to +35 ºF
Specifications Outlet Pdp Pressure Dew Point For Purge Air 25
-30 to -4 ºF
Specifications Outlet Pdp Pressure Dew Point For Purge Air 28
-40 to -20 ºF
Specifications Purge Air
10 % | 17 % | 25 % | 28 %
Specifications Warranty
5 years
Specifications Weight
11.46 lb
Standard Features And Benefits 0
Twist 45 Technology:Highest possible performance from a membrane with 45º wound fiber.Maximum Reliability:Provides consistent dew point suppression and lasting performance even in the most demanding environments.Highest Performance:Saves energy with zero electricity required and achieves dew point in a minimal amount of time with minimum purge.Maintenance Free:With no moving parts or electrical components trouble-free operation is achieved even in mobile applications.Perfect Design:The small footprint combined with the variety of configurations possible make an ideal choice for all types of applications.
