DualVee® Size 3 Low Temp Stainless Studded Guide Wheel
DualVee® Size 3 Low Temp Stainless Studded Guide Wheel
SKU:HER-d35861
Precision DualVee® Size 3 stainless guide wheel for industrial applications. AISI 303 stainless steel with concentric design.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
DualVee® Size 3 Low Temp Stainless Studded Guide Wheel
$49.99
Quantity: 1
Claim Your Seller Account
DualVee® Size 3 Low Temp Stainless Studded Guide Wheel
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The DualVee® Size 3 Low Temperature Stainless Studded Guide Wheel is designed for precision performance in guiding applications. Made with AISI 303 stainless steel, this guide wheel features precision ground double 90-degree running surfaces and a permanently attached threaded stud for secure installation. The concentric, non-adjustable position ensures stable performance, making it ideal for guiding mechanisms in various industrial settings. Compliant with American Iron and Steel Institute (AISI) standards, this guide wheel guarantees durability and reliability.
Product Specifications
Specifications Circuit
SPDT DB
Specifications Constructionstandards
NEMA Type 2, 4 & 13UL Enclosure 2, 4 & 13CSA Enclosure 2, 4 & 13EN 60529 Degree of Protection IP56
Specifications Electrical Rating
Heavy pilot duty 250 Vac max. | 1/2 H.P. 125 VAC | 1 H.P. 250 VAC | 15A 125-250 VAC
Specifications Features
DriptightDusttightWatertightOiltight
Specifications Form
Z
Specifications Note

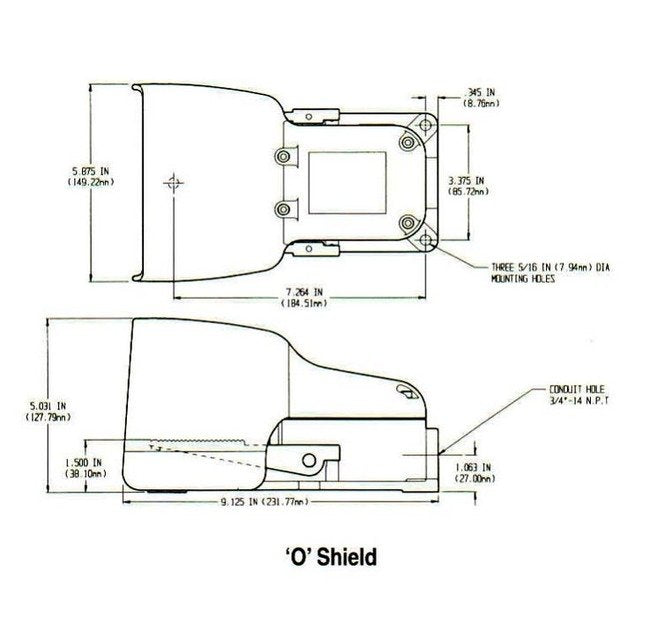

S-Denotes Momentary Contact-Press to start - release to stop, D-Denotes Maintained Contact-Press to start - Release Latch to stop, O-Denotes oversize O-shield models which accept oversized safety shoes and metatarsal foot guards.
Specifications Remarks
DB Double break model must be wired to equal voltage sources and the same polarity. The loads should be on the same sides of the line.
Specifications Size
9 x 5 3/4 x 4 3/4 Inch
Specifications Stages
Two
Specifications Weight Approx
8 lbs
