High-quality Size 3 studded guide wheel made of AISI 303 stainless steel for precise and reliable guiding.

$49.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The DualVee® SWA Studded Wheel in Size 3 is designed for precision guiding applications. It features a sturdy construction using 303 stainless steel, meeting American Iron and Steel Institute standards. This wheel is ball-bearing type, providing smooth and reliable operation. With a permanently attached threaded stud and long mounting shank, it offers a concentric, non-adjustable position for enhanced performance and durability.

Product Specifications

Specifications Circuit

SPDT

Specifications Constructionstandards

NEMA Type 2, 4 & 13UL Enclosure 2, 4 & 13CSA Enclosure 2, 4 & 13EN 60529 Degree of Protection IP56

Specifications Electrical Rating

1 H.P. 125-250 VAC | Heavy pilot duty 250 Vac max. | 20A 125-250 VAC

Specifications Features

DriptightDusttightWatertightOiltight

Specifications Form

Specifications Note

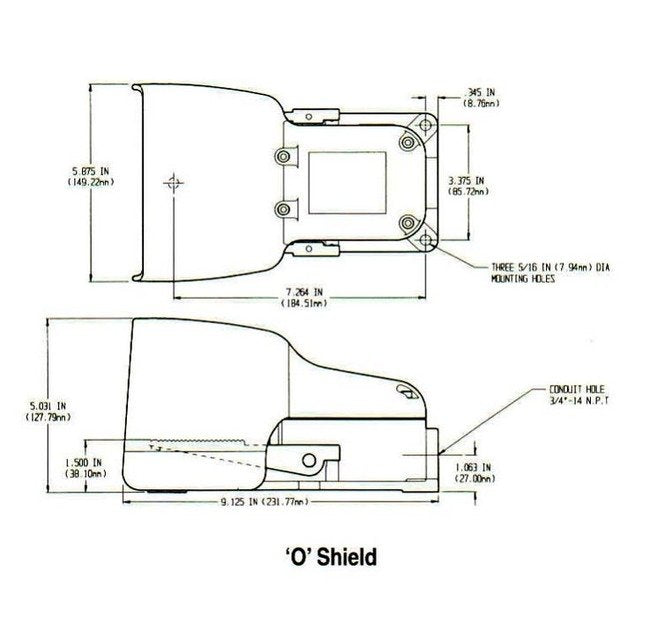

S-Denotes Momentary Contact-Press to start - release to stop, D-Denotes Maintained Contact-Press to start - Release Latch to stop, O-Denotes oversize O-shield models which accept oversized safety shoes and metatarsal foot guards.

Specifications Remarks

1st stage Momentary and 2nd stage maintained

Specifications Size

9 x 5 3/4 x 4 3/4 Inch

Specifications Stages

Two

Specifications Weight Approx

8 lbs
