Enhance your linear motion systems with the DualVee® Size 4 Carbon Steel Single Edge Drilled Guide Rail. Featuring 90º vee way surfaces for seamless compatibility with DualVee® guide wheels, this 25.00-inch rail is expertly crafted from soft AISI 1045 carbon steel, allowing for easy drilling and machining. With 7 0.344" diameter mounting holes and a mounting shoulder for precise alignment, this rail offers durability and accuracy. Custom finishes and lengths available upon request.
Product Specifications
Specifications Description
Momentary
Specifications Features
DriptightDusttightWatertightOiltight
Specifications Model No Description

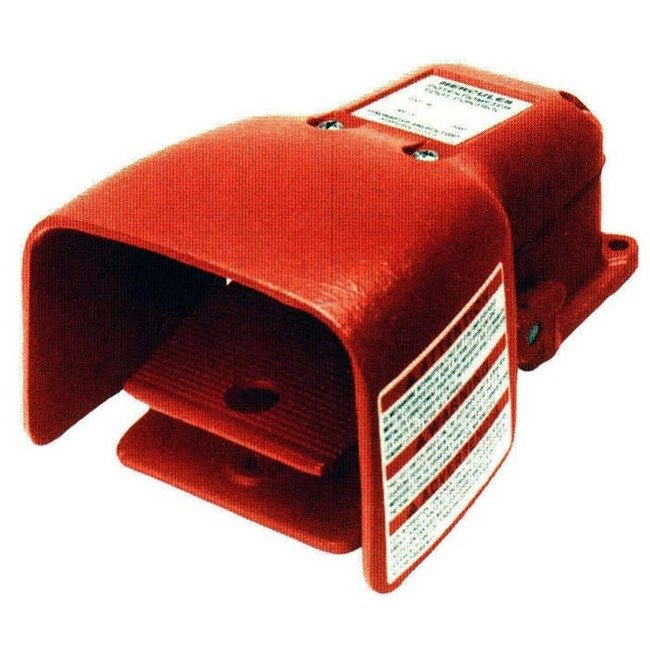

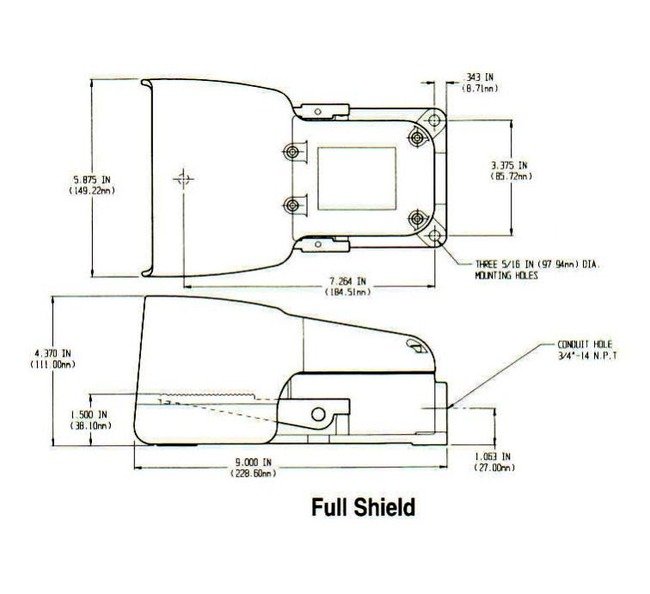

"OX" Shield
Specifications Note
On special order up to 3 SPDT switches can be added and adjusted for operation at any point of the treadle stroke.
Specifications Standards
NEMA Type 1, 2, 4 & 13, EN 60529 Degree of Protection IP56
