Dymax® 120 cP UV-Curable Conformal Coating
Dymax® 120 cP UV-Curable Conformal Coating
SKU:CON-264939
Protect PCBs with Dymax® 120 cP UV-Curable Conformal Coating. Quick curing under UV/LED light, heat & UV resistant, UL 94 V0 compliant.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Dymax® 120 cP UV-Curable Conformal Coating
$29.99
Quantity: 1
Claim Your Seller Account
Dymax® 120 cP UV-Curable Conformal Coating
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

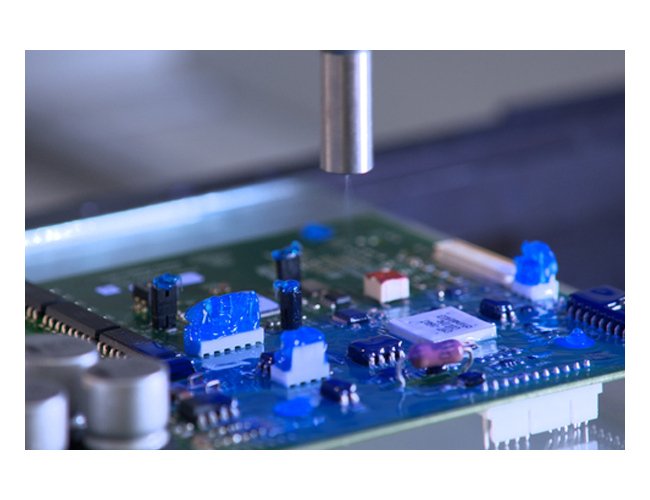

The Dymax® 120 cP UV-Curable Conformal Coating is designed to provide quick, tack-free curing upon exposure to UV/Visible or LED light. With secondary heat or moisture-cure capabilities, this conformal coating protects printed circuit boards and components from harsh environmental conditions like heat, chemicals, and humidity. It features a transparent liquid appearance, D75 cured durometer hardness, and offers flexible and rigid bonds to various substrates including ceramic, lead frames, and printed circuit boards. With low viscosity and no solvents added, this coating is heat-resistant up to 100°C, resistant to long-term UV exposure, and complies with UL 94 V0 standards.
Product Specifications
Additional Information 0
Low Viscosity Conformal Coating & Encapsulant for LEDsDymax® 9624 is UV light curable and formulated for rapid, room-temperature coating of LED arrays. This clear material features a low nominal viscosity for thin coatings, forms an instant protective lens for high-intensity LEDs, and is resistant to long-term UV exposure.Dymax® materials contain no nonreactive solvents and cure upon exposure to UV light. Their ability to cure in seconds enables faster processing, greater output, and lower processing costs. When cured with Dymax® light-curing spot lamps, focused-beam lamps, or flood lamps, they deliver optimum speed and performance for LED protection. Dymax® lamps offer the ideal balance of UV and visible light for the fastest, deepest cures.
Features 0
Cures with UV lightLow viscosity for thin coatingsLow VOCsHeat resistant to 100 ºCResistant to long-term UV exposureOne component - no mixingRoom temperature - no refrigeration requiredSolvent & isocyanate freeUL 94 V0 Recognized
Specifications Cured Appearance
Transparent Liquid
Specifications Cured Durometer Hardness
D75
Specifications Recommended Substrates
Ceramic (CER) | Lead frame | Printed Circuit Boards (PCB) | Silicon
Uncured Properties Nominal Viscosity
120 cP
