Dymax® 2000-EC UV Light-Curing Flood Lamp System
Dymax® 2000-EC UV Light-Curing Flood Lamp System
SKU:ULT-4cb2ca
Achieve rapid UV curing with the Dymax® 2000-EC Series Lamp System. Consistent intensity for quick adhesion in 5-30 secs.
Regular price
$1,499.99
Regular price
Sale price
$1,499.99
Unit price
per
Initiate Order
Dymax® 2000-EC UV Light-Curing Flood Lamp System
$1,499.99
Quantity: 1
Claim Your Seller Account
Dymax® 2000-EC UV Light-Curing Flood Lamp System
$1,499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

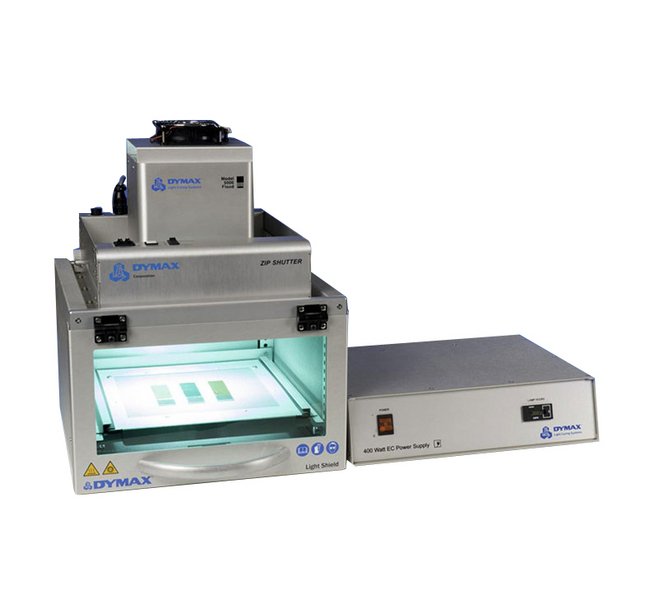

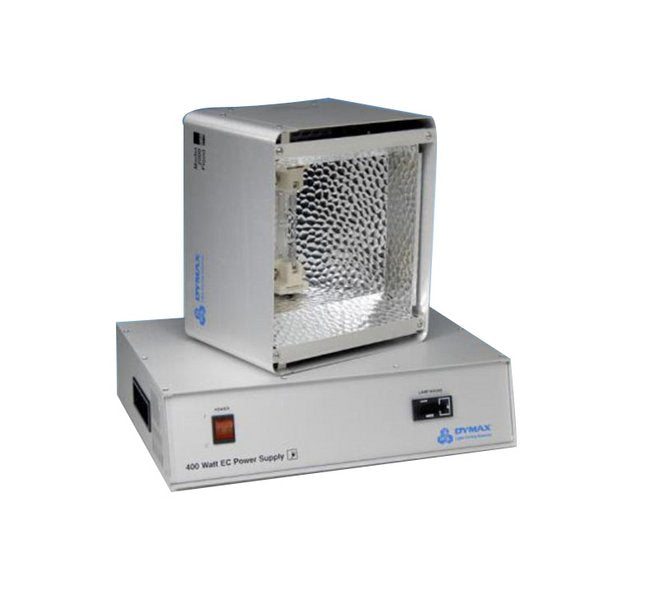

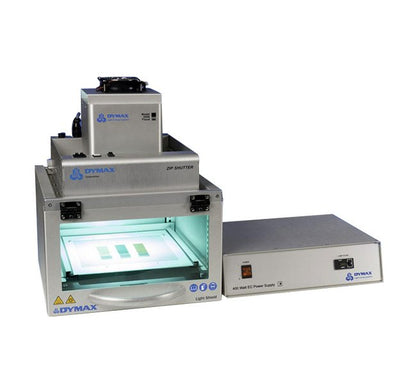

Illuminate your curing process with the Dymax® 2000-EC Series UV Light-Curing Flood Lamp System, delivering consistent intensity over a large 8 x 8 inch area. Featuring a working distance of 2 to 6 inches, adjustable lamp height, and powerful 105 mW/cm² output, this system cures light-curable adhesives rapidly in just 5-30 seconds. With sturdy construction and optional shutters and shielding for safety, it integrates seamlessly into manual or automated assembly setups.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Accessories 0
Item # - 35572Description - Dymax® UV light-curing flood lamps require a five (5) minute warm up and five (5) minutes to cool down. For that reason, it is not practical to control exposure by turning lamps on/off. Shutters, however, can be used to control exposure time. Dymax® offers the "Manual shutter shown open" shutters for use with the 2000-EC and 5000-EC UV-curing flood systems.Low cost louvered shutter. Simple hand turn knob opens and closes shutter.Dimensions Dimensions (L x W x H) - 11.1" x 11.3" x 2.5" (28.2 cm x 28.7 cm x 6.4 cm)Item # - 37863Description - Dymax® UV light-curing flood lamps require a five (5) minute warm up and five (5) minutes to cool down. For that reason, it is not practical to control exposure by turning lamps on/off. Shutters, however, can be used to control exposure time. Dymax® offers the "ZIP⢠shutter shown open" shutters for use with the 2000-EC and 5000-EC UV-curing flood systems.Electronic, curtain-style shutter. Actuated via finger switch, foot pedal, or customer supplied switch (or PLC).Dimensions (L x W x H) - 13.5" x 11.75" x 4.5" (34.3 cm x 29.9 cm x 11.4 cm)Item # - 38071Description - Replacement CurtainDymax® UV light-curing flood lamps require a five (5) minute warm up and five (5) minutes to cool down. For that reason, it is not practical to control exposure by turning lamps on/off. Shutters, however, can be used to control exposure time. Dymax® offers the "ZIP⢠shutter shown open" shutters for use with the 2000-EC and 5000-EC UV-curing flood systems.Electronic, curtain-style shutter. Actuated via finger switch, foot pedal, or customer supplied switch (or PLC).Dimensions (L x W x H) - 13.5" x 11.75" x 4.5" (34.3 cm x 29.9 cm x 11.4 cm)Item # - 38290ECE 2000 Mounting Stand KitDescription - Dymax® offers two shielding options for its UV-curing flood systems, a mounting stand kit and a light shield.A simple and cost effective 3-sided shield that is removed manually. Not compatible with Dymax® shutters.Dimensions (L x W) - ECE 2000: 8.5" x 10.8" (21.6 x 27.4 cm)Item # - 38289ECE 5000 Mounting Stand KitDescription - Dymax® offers two shielding options for its UV-curing flood systems, a mounting stand kit and a light shield.A simple and cost effective 3-sided shield that is removed manually. Not compatible with Dymax® shutters.Dimensions (L x W) - ECE 5000: 7.0" x 6.1" (17.8 x 15.5 cm)Item # - 40785Description - Dymax® offers two shielding options for its UV-curing flood systems, a mounting stand kit and a light shield.360º shielding. Swing up door and slide out shelf. Compatible with Dymax® shutters.Inside Dimensions (W x D x H) - 13.2" x 12.5" x 8.3" (35.53 cm x 31.75 cm x 21.08 cm)Outside Dimensions (W x D x H) - 15.1" x 18.2" x 10.6" (38.42 cm x 46.25 cm x 26.83 cm)
Additional Information 0

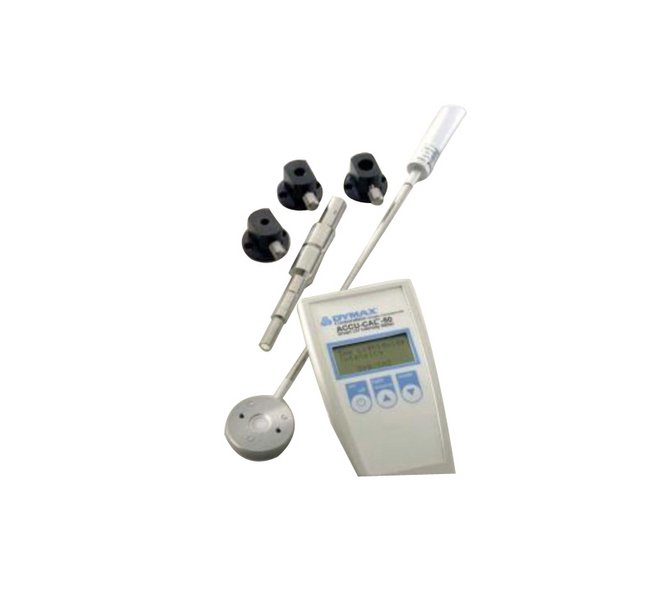

The intensity generated by Dymax® flood systems is very consistent. With continuous use, bulb degradation of less than 20% over the first 2,000 hours is typical. On/off cycles will accelerate bulb degradation.The ACCU-CAL⢠50 radiometer is simple to operate and offers repeatable measurement of UV light. The Dymax® ACCU-CAL⢠50 can measure UV light emitted from lightguides (3 mm, 5 mm, and 8 mm), UV flood systems, and UV conveyors.
Broad Spectrum Flood Lamps 0
Dymax® broad-spectrum flood curing systems use moderate- to high-intensity (105-350 mW/cm2) UV/visible light to cure UV light-curable adhesives, coatings, and inks in as little as 5-30 seconds. Systems are available with 5" x 5" (127 mm x 127 mm) or 8" x 8" (203 mm x 203 mm) curing areas. They come standard with a 400 watt metal-halide bulb but can be outfitted with longwave, shortwave, UV, and visible replacement bulbs to fit unique applications. All bulbs have a long service life and come with a 2,000 hour warranty.
Features 0
Powerful UV light-curing lamps (up to 225 mW/cm²) - Measured with a Dymax® ACCU-CAL⢠50 Radiometer (320-395 nm) at a lamp height of 3" using a standard metal halide bulb.Two bulb options (shortwave or longwave)Large curing area 5" x 5" or 8" x 8" (12.7 cm x 12.7 cm) or (20.3 cm x 20.3 cm)Adjustable lamp heightTypical cure times of 5-30 secondsBulbs are warranted for 2,000 hoursShutter that can be actuated by foot pedal or PLC100% shielding with safety interlock available
Light Emitting Diode Led Flood Curing Systems 0
Dymax® LED flood lamp systems use high-intensity LEDs to cure a 5" x 5" (12.7 cm x 12.7 cm) area. Because these flood systems use a high-intensity LED as the curing source they produce faster cure times, more consistent frequency and intensity output, a cooler curing environment for thermally sensitive substrates, and longer bulb life than conventional arc lamps. Systems are available in three different wavelength arrays (365, 385, and 405 nm) so users can fully optimize the curing process between their light-curable material and the curing system.
Manufacturing Notes 0
Intensity readings vary widely depending on the make and model of the radiometer. These intensities were measured with the ACCU-CAL⢠50 radiometer.
Replacement Bulb Model Numbers 0

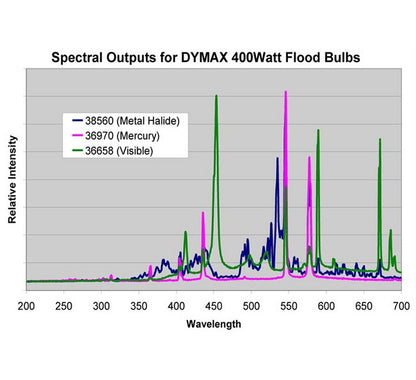

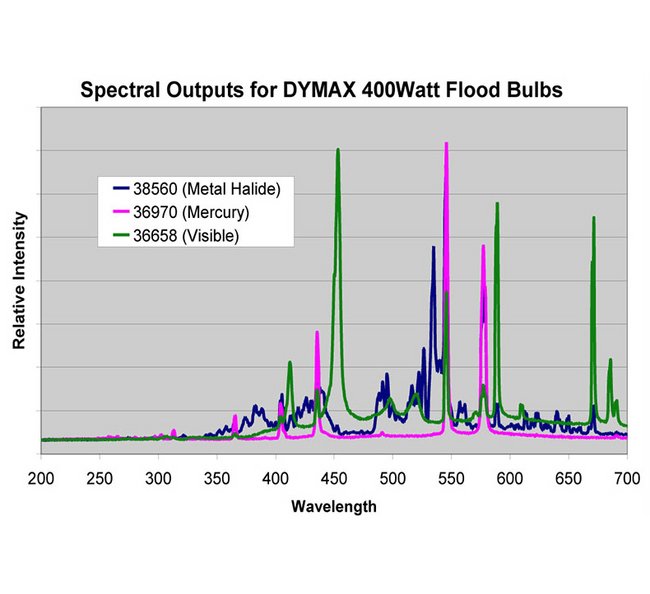

Item # - 38560Metal Halide (Standard, UVA, Longwave)Item # - 36970Mercury (UVB, Shortwave)Item # - 36658Visible
Specifications Alternating Current Ac Voltage
90 to 265 V
Specifications Bulb Warranty
2000 H
Specifications Curing Area
8 x 8 in | 20.3 cm
Specifications Frequency
50 to 60 Hz
Specifications Initial Intensities
105 mW/cm²
Specifications Power Supply Height
4.25 in | 10.8 cm
Specifications Power Supply Length
12 in | 30.5 cm
Specifications Power Supply Width
16 in | 40.6 cm
Specifications Reflector Housing Height
19.1 cm | 7.5 in
Specifications Reflector Housing Length
22.9 cm | 9 in
Specifications Reflector Housing Width
26.7 cm | 10.5 in
Specifications System Options
Modular (No Shielding or Shutter)
Specifications Type
2000-EC UV Light-Curing Flood System
Specifications Degradation
< 20 %
Specifications Intensity Output
105 mW/cm²
Specifications Working Distance
2 to 6 in | 5.08 to 15.24 cm
